Door Catalog

Full collection

Every Door, with Its Matching Drawer Front

101 door designs organized by style. Each one shows its minimum size, framing details and the drawer front that goes with it. Tap any image to see it larger.

MT / M&TMortise and tenon: the frame pieces lock into each other, with a straight joint at the corners.
MiterThe frame pieces meet at 45° in the corners, like a picture frame.

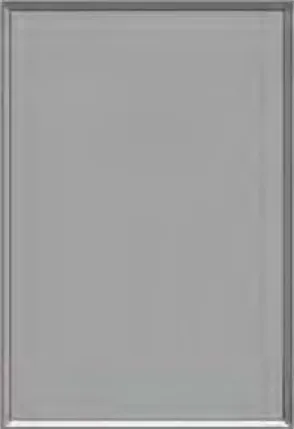

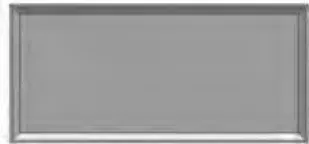

PPPlywood panel: a flat veneered panel instead of a solid wood raised panel.
Style

Shaker

Clean recessed panels with square frames, the most requested style in our kitchens.

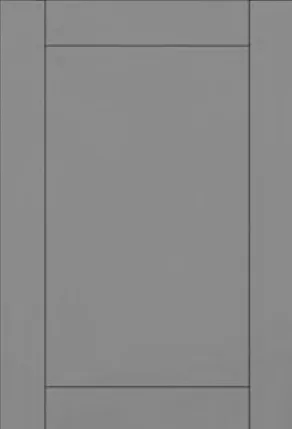

Albany
Door

Albany

Minimum size
7" x 6-3/4"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
Albany
Matching drawer front7" x 3-7/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-057 raise shown

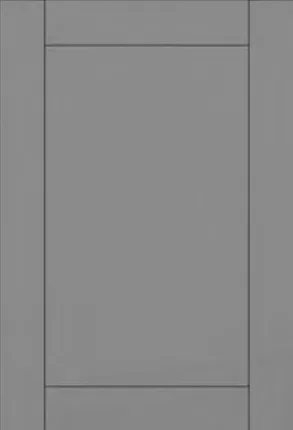

Amesbury
Door

Amesbury

Minimum size
7-1/2" x 7-1/2"
  • 2-1/4" framing
  • 5/8" Reverse G-Cove raise shown
Amesbury
Matching drawer front7" x 4-1/4"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-259 raise shown

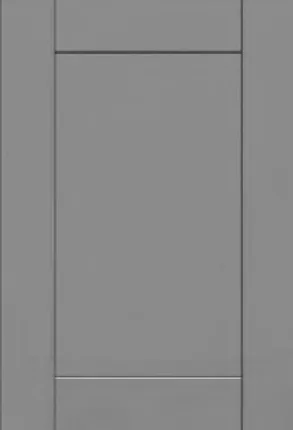

Bristol
Door

Bristol

Minimum size
7-7/8" x 6-3/8"
  • 2-3/4" framing
  • 9/16" veneered panel
  • Essex Rout standard on stiles
Bristol
Matching drawer front7-7/8" x 3-7/8"
  • 1-1/2" rails
  • 2-3/4" stiles
  • 9/16" veneered panel
  • Essex Rout standard on stiles

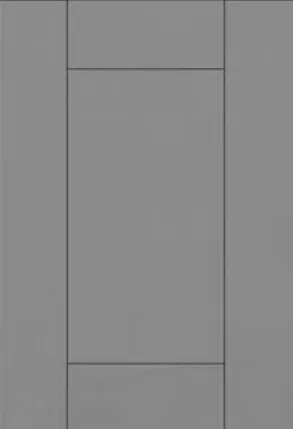

Cortland
Door

Cortland

Minimum size
9-3/8" x 7-7/8"
  • 3-1/2" framing
  • 9/16" veneered panel
Cortland
Matching drawer front9-3/8" x 3-7/8"
  • 1-1/2" rails
  • 3-1/2" stiles
  • 9/16" veneered panel

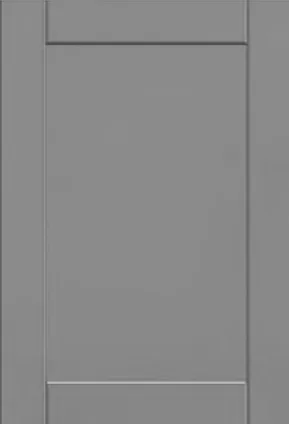

Fairhaven
Door

Fairhaven

Minimum size
7-3/16" x 7-3/16"
  • 2-1/4" framing
  • 1/2" Reverse G-Cove raise shown
  • Joints have eased edges, creating the appearance of an open joint.
Fairhaven
Matching drawer front7" x 5-1/2"
  • 2-1/4" framing
  • P-116 raise shown

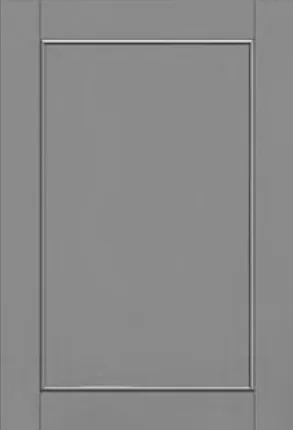

Madison
Door

Madison

Minimum size
7-3/16" x 7-3/16"
  • 2-5/16" framing
  • 1/2" Reverse G-Cove raise shown
Madison
Matching drawer front7" x 5-1/2"
  • 2-5/16" framing
  • P-116 raise shown

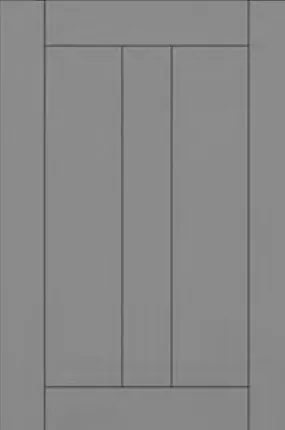

Sheldon
Door

Sheldon

Minimum size
11-3/8" x 7"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
Sheldon
Complementary drawer front7" x 3-7/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-057 raise shown

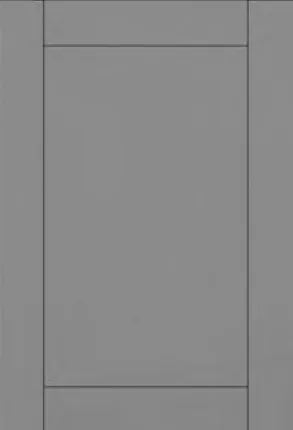

Stockbridge
Door

Stockbridge

Minimum size
7" x 5"
  • 2-1/4" framing
  • 1/4" veneered panel
Stockbridge
Matching drawer front7" x 3-3/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • 1/4" veneered panel

Raised Panel: Mortise & Tenon

Classic raised panels on a frame joined with mortise and tenon.

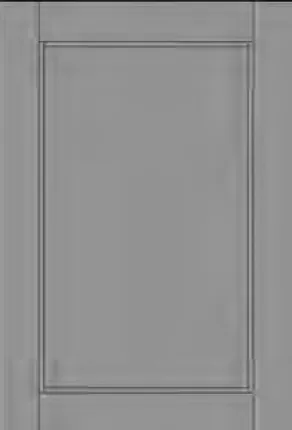

Crawford
Door

Crawford

Minimum size
7" x 6-3/4"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
Crawford
Matching drawer front7" x 3-7/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-057 raise shown

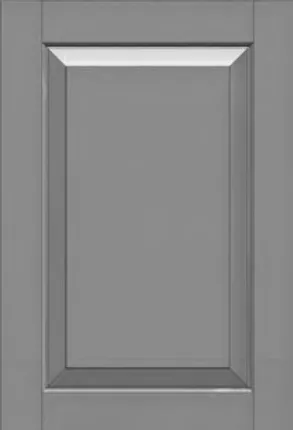

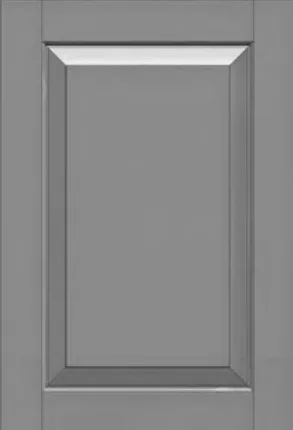

CRP-10
Door

CRP-10

Minimum size
7-1/2" x 7-1/2"
  • 2-1/4" framing
  • Slant raise shown
CRP-10
Matching drawer front7-1/2" x 5-3/4"
  • 1-1/2" rails
  • 2-1/4" stiles
  • Slant raise shown

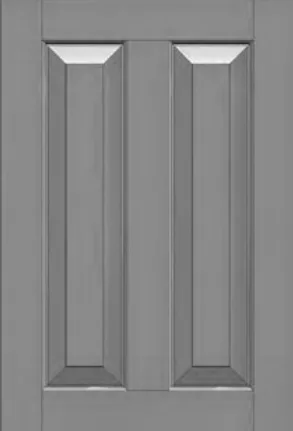

CRP-10102
Door

CRP-10102

Minimum size
12-7/8" x 7-1/2"
  • 2-1/4" framing
  • Slant raise shown

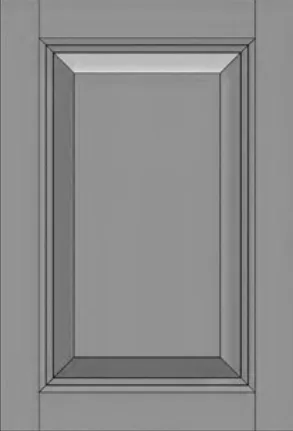

CRP-10382MT
Door

CRP-10382MT

Minimum size
8-3/8" x 8-3/8"
  • 2-3/4" framing
  • Slant raise shown
CRP-10382MT
Matching drawer front7-7/8" x 4-7/8"
  • 2" rails
  • 2-3/4" stiles
  • P-057 raise shown

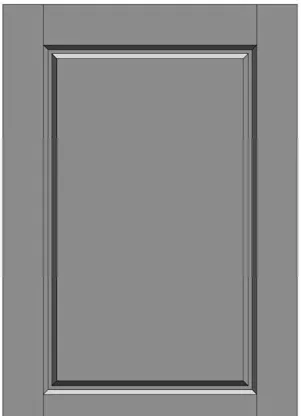

CRP-10605MT
Door

CRP-10605MT

Minimum size
7-1/2" x 7-1/2"
  • 2-1/4" framing
  • P-016 raise shown

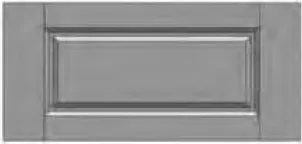

CRP-10605MT
Matching drawer front7-1/2" x 5-1/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-016 raise shown

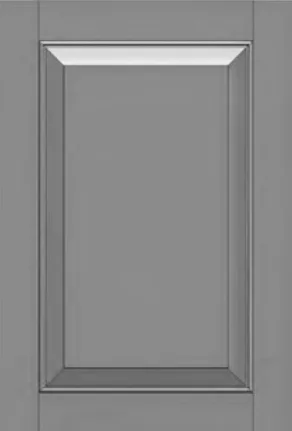

CRP-10751MT
Door

CRP-10751MT

Minimum size
7-1/2" x 7-1/2"
  • 2-5/16" framing
  • Slant raise shown
CRP-10751MT
Matching drawer front7" x 5-1/2"
  • 2-5/16" framing
  • P-057 raise shown

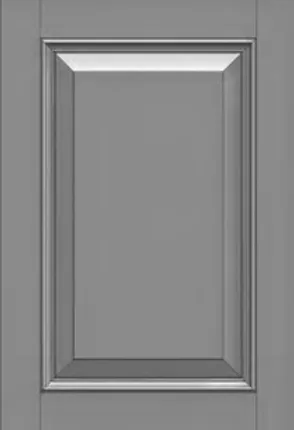

CRP-1389MT
Door

CRP-1389MT

Minimum size
8-3/8" x 8-3/8"
  • 2-3/4" framing
  • Slant raise shown
CRP-1389MT
Matching drawer front7-7/8" x 4-7/8"
  • 2" rails
  • 2-3/4" stiles
  • P-057 raise shown

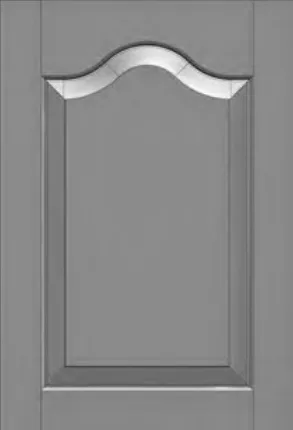

CRP-20
Door

CRP-20

Minimum size
8-1/4" x 9-1/4"
  • 2-1/4" framing
  • Slant raise shown

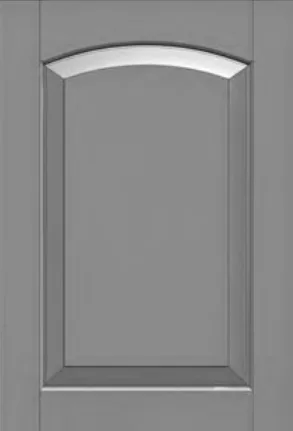

CRP-30
Door

CRP-30

Minimum size
8-1/4" x 8-1/2"
  • 2-1/4" framing
  • Slant raise shown
Monarch Square
Door

Monarch Square

Minimum size
7-1/2" x 7-1/2"
  • 2-1/4" framing
  • Slant raise shown
Monarch Square
Matching drawer front7-1/2" x 5-3/4"
  • 1-1/2" rails
  • 2-1/4" stiles
  • Slant raise shown

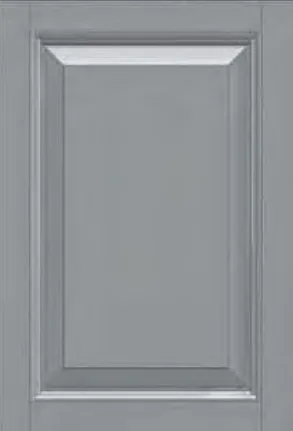

Presidential Square
Door

Presidential Square

Minimum size
8-3/8" x 8-3/8"
  • 2-3/4" framing
  • Presidential raise shown

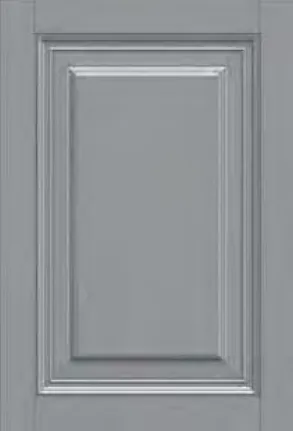

RutlandMT
Door

RutlandMT

Minimum size
8-1/4" x 8-1/4"
  • 2-11/16" framing
  • 3/8" Reverse G-Cove raise shown

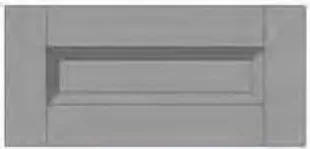

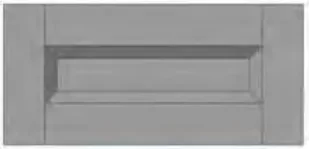

RutlandMT
Matching drawer front7-3/4" x 5"
  • 2-1/16" rails
  • 2-11/16" stiles
  • P-057 raise shown

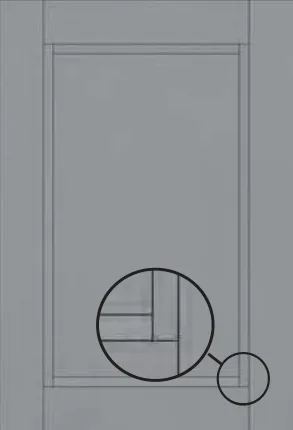

Savannah
Door

Savannah

Minimum size
7-7/8" x 7-5/8"
  • 2-3/4" framing
  • 3/8" Reverse G-Cove raise shown
Savannah
Matching drawer front7-7/8" x 5-1/8"
  • 1-1/2" rails
  • 2-3/4" stiles
  • 3/8" Reverse G-Cove raise shown

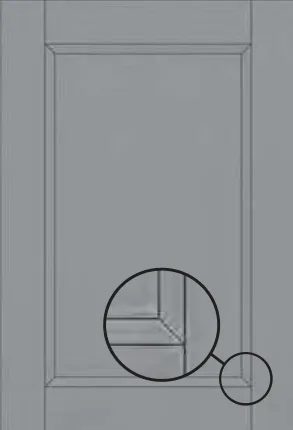

SavannahMT
Door

SavannahMT

Minimum size
7-7/8" x 7-5/8"
  • 2-3/4" framing
  • 3/8" Reverse G-Cove raise shown
SavannahMT
Matching drawer front7-7/8" x 5-1/8"
  • 1-1/2" rails
  • 2-3/4" stiles
  • 3/8" Reverse G-Cove raise shown

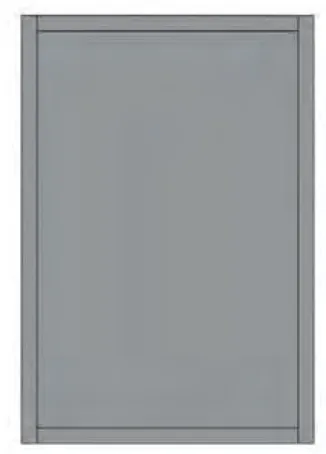

Vulcan
Door

Vulcan

Minimum size
B 7-1/2" x 5-1/4"
  • 3/4" wide framing on face
  • 25/32" thick framing

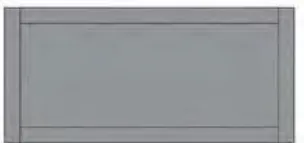

Vulcan
Matching drawer front7-1/2" x 4-7/8"
  • 3/4" wide framing on face
  • 25/32" thick framing

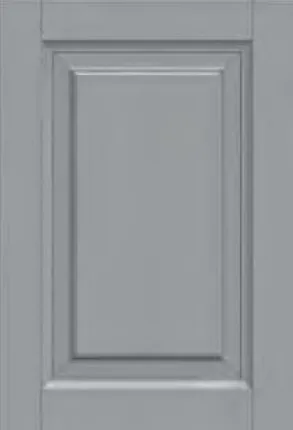

Westminster
Door

Westminster

Minimum size
8-3/8" x 8-3/8"
  • 2-3/4" framing
  • Presidential raise shown
Westminster
Matching drawer front7-7/8" x 4-7/8"
  • 1-1/2" rails
  • 2-3/4" stiles
  • P-057 raise shown

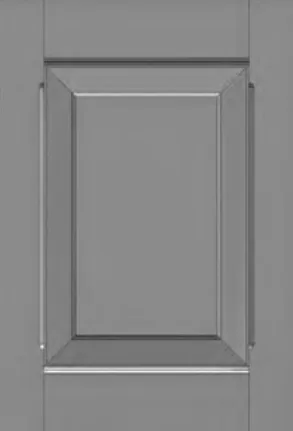

CRP-10141
Door

CRP-10141

Minimum size
8" x 10-1/8"
  • 3-3/8" rail width
  • 2-1/4" stile width
  • P-106 raise shown
CRP-10141
Matching drawer front7" x 5-1/4"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-057 raise shown

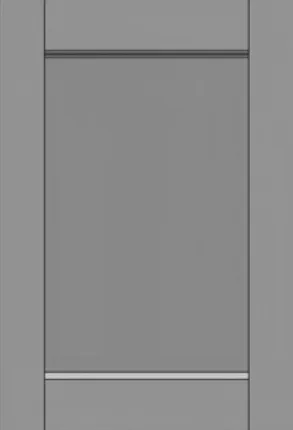

Geneva
Door

Geneva

Minimum size
7" x 8-1/8"
  • 3" rail width
  • 2-1/4" stile width
  • 3/8" Reverse G-Cove raise shown
Geneva
Matching drawer front7" x 4-7/8"
  • 2" rails
  • 2-1/4" stiles
  • P-057 raise shown

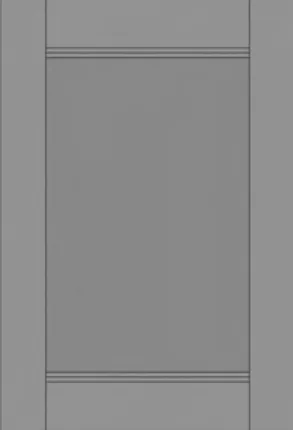

Glasgow
Door

Glasgow

Minimum size
7" x 8-1/8"
  • 3" rail width
  • 2-1/4" stile width
  • 3/8" Reverse G-Cove raise shown
Glasgow
Matching drawer front7" x 4-7/8"
  • 2" rails
  • 2-1/4" stiles
  • P-057 raise shown

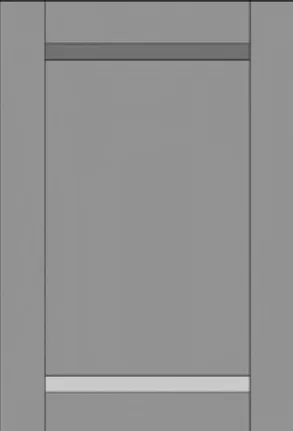

Wakefield
Door

Wakefield

Minimum size
7" x 8-1/8"
  • 3" rail width
  • 2-1/4" stile width
  • 3/8" Reverse G-Cove raise shown
Wakefield
Matching drawer front7" x 4-7/8"
  • 2" rails
  • 2-1/4" stiles
  • P-057 raise shown
Presidential
Drawer front

Presidential

Minimum size
7-7/8" x 6-3/8"
  • 2-3/4" framing
  • P-057 raise shown

Raised Panel: Mitered

Raised panels on a frame with 45° mitered corners, for a more detailed, furniture-like look.

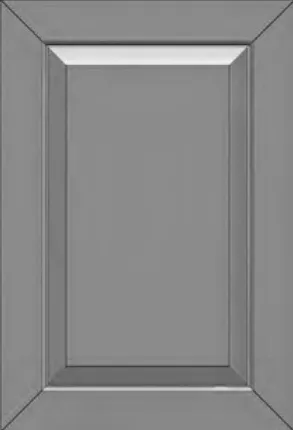

CRP-10 Miter
Door

CRP-10 Miter

Minimum size
7-1/2" x 7-1/2"
  • 2-5/16" framing
  • Slant raise shown
CRP-10 Miter
Matching drawer front7-1/2" x 7-1/2"
  • 2-5/16" framing
  • Slant raise shown

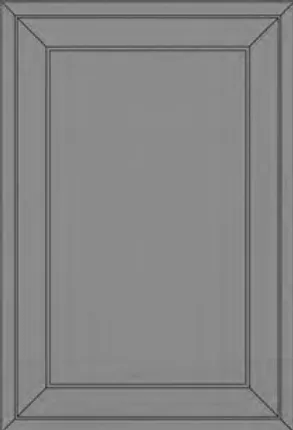

CRP-10191
Door

CRP-10191

Minimum size
7-1/8" x 7-1/8"
  • 2-1/2" framing
  • 3/8" Reverse G-Cove raise shown
CRP-10191
Matching drawer front5-1/2" x 5-1/8"
  • 1-1/2" framing
  • 3/8" Reverse G-Cove shown

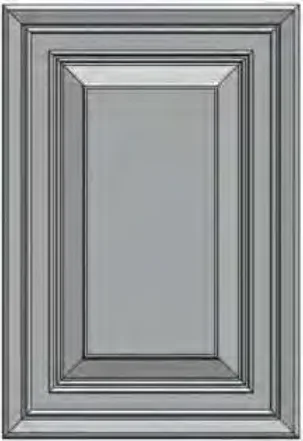

CRP-10318
Door

CRP-10318

Minimum size
8-7/8" x 8-7/8"
  • 2-15/16" framing
  • Louis XIII raise shown
  • 5/16" radius corners on framing standard
CRP-10318
Matching drawer front4-3/4" x 4-3/4"
  • 1-3/4" framing
  • P-057 raise shown

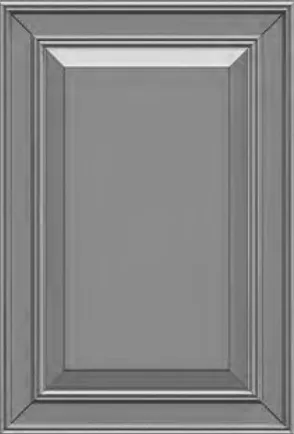

CRP-10334
Door

CRP-10334

Minimum size
7-1/2" x 7-1/2"
  • 2-5/16" framing
  • Slant raise shown
CRP-10334
Matching drawer front4-7/8" x 4-7/8"
  • 2" framing
  • P-057 raise shown

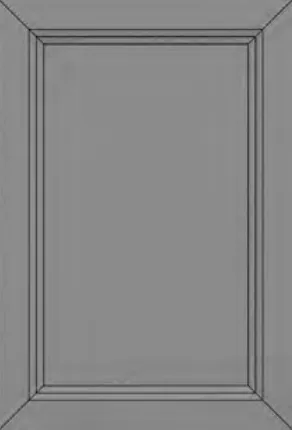

CRP-10382
Door

CRP-10382

Minimum size
6-3/4" x 6-3/4"
  • 2-5/16" framing
  • 3/8" Reverse G-Cove raise shown
CRP-10382
Matching drawer front5-1/2" x 5-1/2"
  • 2-5/16" framing
  • P-057 raise shown

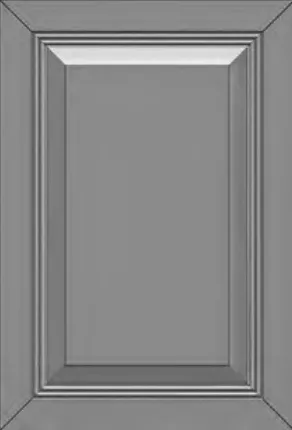

CRP-10533
Door

CRP-10533

Minimum size
7-1/2" x 7-1/2"
  • 2-5/16" framing
  • Slant raise shown
CRP-10533
Matching drawer front5-1/2" x 5-1/2"
  • 2-5/16" framing
  • P-057 raise shown

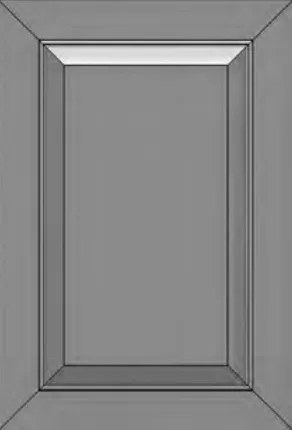

CRP-10751
Door

CRP-10751

Minimum size
7-1/2" x 7-1/2"
  • 2-5/16" framing
  • Slant raise shown
CRP-10751
Matching drawer front5-1/2" x 5-1/2"
  • 2-5/16" framing
  • P-057 raise shown

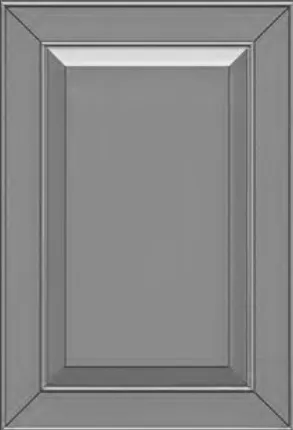

CRP-10827
Door

CRP-10827

Minimum size
7-1/2" x 7-1/2"
  • 2-5/16" framing
  • Slant raise shown
CRP-10827
Matching drawer front5-1/2" x 5-1/2"
  • 2-5/16" framing
  • P-057 raise shown

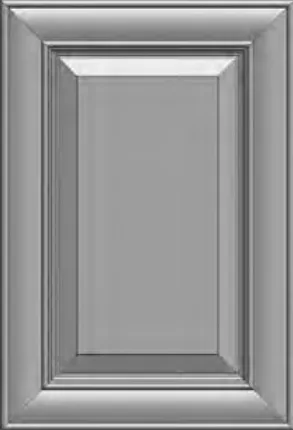

CRP-10875
Door

CRP-10875

Minimum size
8-5/8" x 8-5/8"
  • 2-7/8" framing
  • Slant raise shown
CRP-10875
Matching drawer front4-7/8" x 4-7/8"
  • 2" framing
  • P-057 raise shown

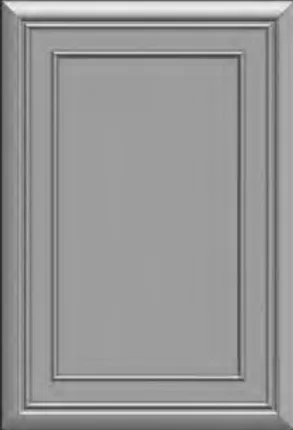

CRP-10946
Door

CRP-10946

Minimum size
8" x 8"
  • 2-15/16" framing
  • 3/8" Reverse G-Cove raise shown
CRP-10946
Matching drawer front4-3/4" x 4-3/4"
  • 1-5/8" framing
  • P-057 raise shown

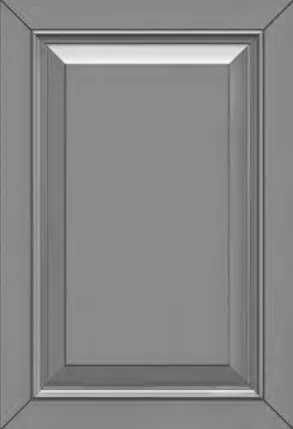

CRP-1389
Door

CRP-1389

Minimum size
7-1/2" x 7-1/2"
  • 2-5/16" framing
  • Slant raise shown
CRP-1389
Matching drawer front6-7/8" x 6-7/8"
  • 2" framing
  • Slant raise shown

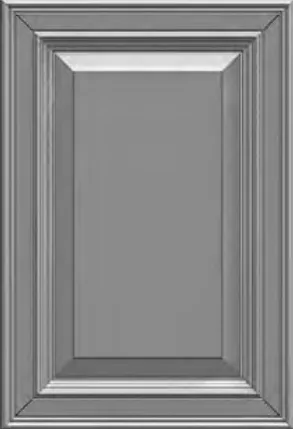

CRP-1420
Door

CRP-1420

Minimum size
8-1/4" x 8-1/4"
  • 2-11/16" framing
  • Slant raise shown
CRP-1420
Matching drawer front4-7/8" x 4-7/8"
  • 2" framing
  • P-057 raise shown

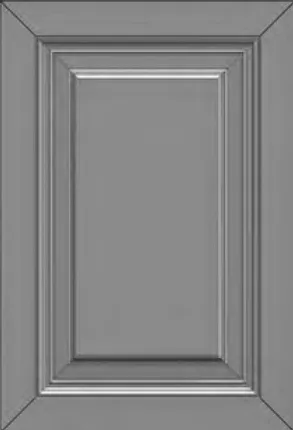

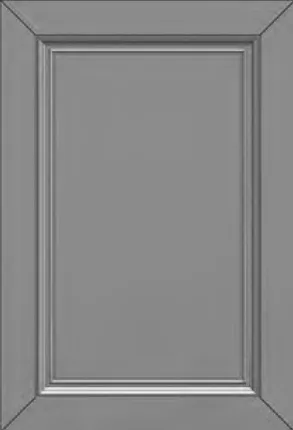

Presidential Miter
Door

Presidential Miter

Minimum size
7-7/8" x 7-7/8"
  • 2-1/2" framing
  • Presidential raise shown
Presidential Miter
Matching drawer front5-7/8" x 5-7/8"
  • 2-1/2" framing
  • P-057 raise shown

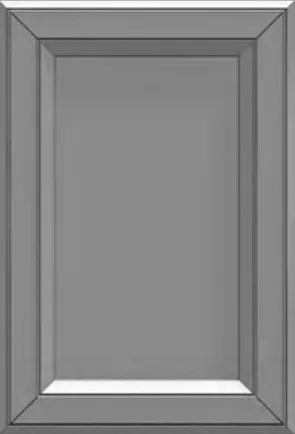

Prestige
Door

Prestige

Minimum size
7-7/8" x 7-7/8"
  • 2-7/8" framing
  • 3/8" Reverse G-Cove raise shown
Prestige
Matching drawer front4-7/8" x 4-7/8"
  • 2" framing
  • P-057 raise shown

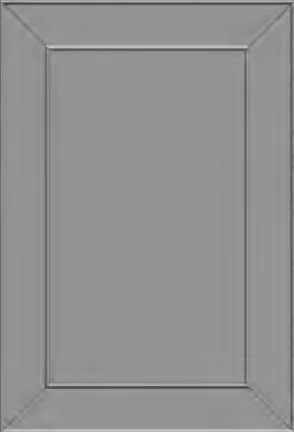

Rothsford
Door

Rothsford

Minimum size
7-3/4" x 7-3/4"
  • 2-3/4" framing
  • 3/8" Reverse G-Cove raise shown
Rothsford
Matching drawer front4-7/8" x 4-7/8"
  • 2" framing
  • P-057 raise shown

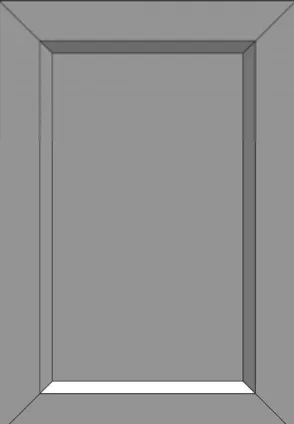

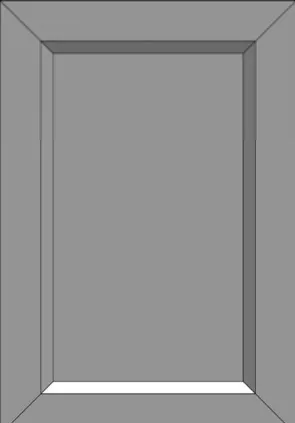

Rutland
Door

Rutland

Minimum size
7-1/2" x 7-1/2"
  • 2-11/16" framing
  • 3/8" Reverse G-Cove raise shown
Rutland
Matching drawer front5" x 5"
  • 2-1/16" framing
  • P-057 raise shown

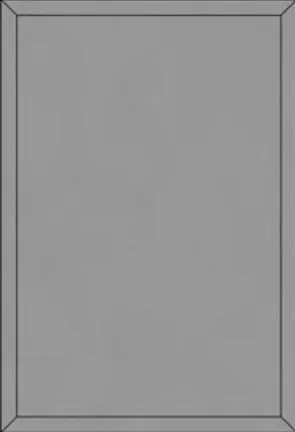

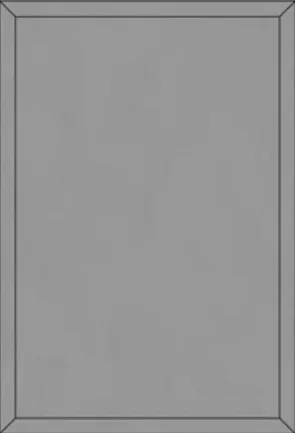

Venus
Door

Venus

Minimum size
5-1/4" x 5-1/4"
  • 13/16" wide framing on face
  • 25/32" thick framing

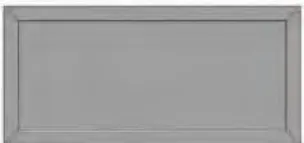

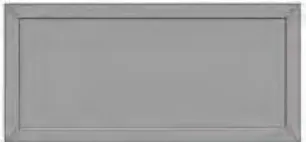

Venus
Matching drawer front5-1/4" x 4-7/8"
  • 13/16" wide framing on face
  • 25/32" thick framing

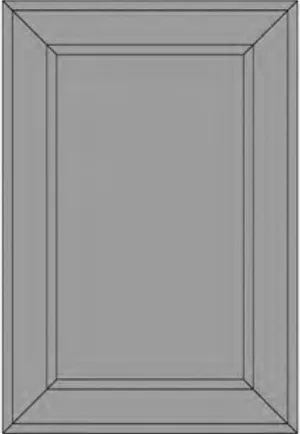

Woodhull
Door

Woodhull

Minimum size
7-3/4" x 7-3/4"
  • 2-3/4" framing
  • 3/8" Reverse G-Cove shown

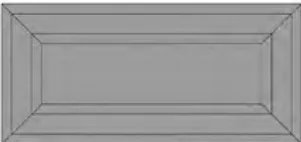

Woodhull
Matching drawer front4-7/8" x 4-7/8"
  • 2" framing
  • P-057 raise shown

Statesman Collection

Traditional designs with bold profiles and deep raised panels.

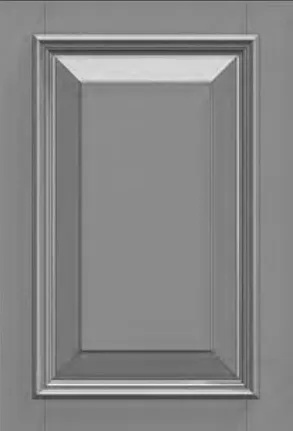

Churchill
Door

Churchill

Minimum size
8-7/8" x 8-7/8"
  • 2-3/4" framing
  • P-008 raise shown
Churchill
Matching drawer front7-7/8" x 4-7/8"
  • 2" rails
  • 2-3/4" stiles
  • P-057 raise shown

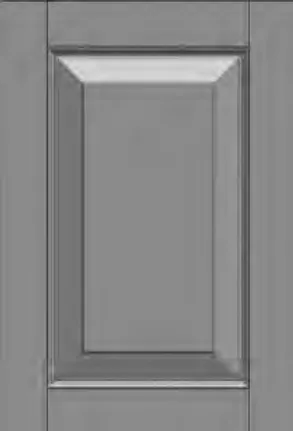

Franklin
Door

Franklin

Minimum size
8-7/8" x 8-7/8"
  • 2-3/4" framing
  • P-008 raise shown
Franklin
Matching drawer front8-3/8" x 5-7/8"
  • 1-1/2" rails
  • 2-3/4" stiles
  • Slant raise shown

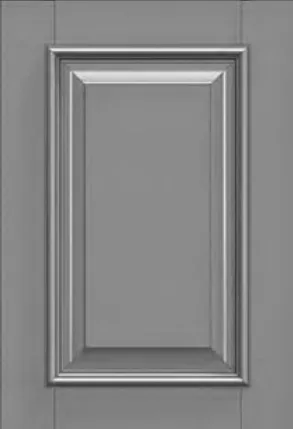

Hancock
Door

Hancock

Minimum size
9" x 9"
  • 2-3/4" framing
  • P-602 raise shown
Hancock
Matching drawer front7-7/8" x 5-1/8"
  • 1-1/2" rails
  • 2-3/4" stiles
  • 3/8" Reverse G-Cove raise shown

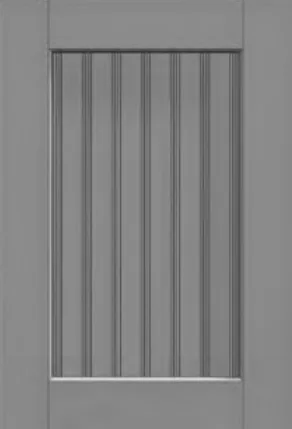

Lafayette
Door

Lafayette

Minimum size
7-7/8" x 7-5/8"
  • 2-3/4" framing
  • Reverse G-Cove raise shown
  • Vertical grain only
  • G-056 groove, 1-1/2" spacing
Lafayette
Matching drawer front7-7/8" x 3-7/8"
  • 1-1/2" rails
  • 2-3/4" stiles
  • P-057 raise shown
  • Vertical grain only
  • G-056 groove, 1-1/2" spacing

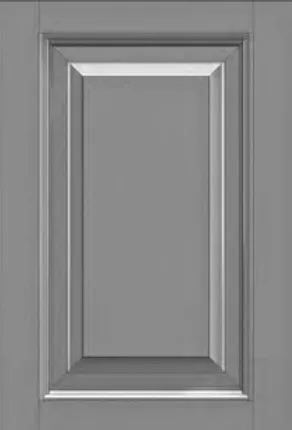

Monroe
Door

Monroe

Minimum size
9" x 9"
  • 2-3/4" framing
  • P-602 raise shown
Monroe
Matching drawer front8-3/8" x 5-7/8"
  • 1-1/2" rails
  • 2-3/4" stiles
  • G-Cove raise shown

1" Thick Collection

Extra-thick 1" doors and drawer fronts for a heavier, more substantial look.

CRP-10
Door

CRP-10

Minimum size
7-1/2" x 7-1/2"
  • 2-1/4" framing
  • Slant raise shown
CRP-10
Matching drawer front7-1/2" x 5-7/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • Slant raise shown
CRP-10A48
Door

CRP-10A48

Minimum size
8-7/8" x 8-7/8"
  • 3" framing
  • P-raise shown
CRP-10A48
Matching drawer front8-3/8" x 4-7/8"
  • 2" rails
  • 3" stiles
  • P-116 raise shown
CRP-30
Door

CRP-30

Minimum size
8-1/4" x 8-1/2"
  • 2-1/4" framing
  • Slant raise shown

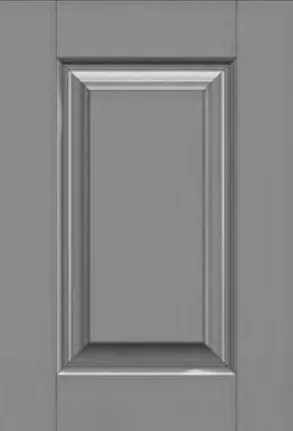

Normandie
Door

Normandie

Minimum size
9-3/4" x 9-3/4"
  • 3-3/8" framing
  • P-317 raise shown
Normandie
Matching drawer front9-1/8" x 5-3/8"
  • 2-1/4" rails
  • 3-3/8" stiles
  • P-057 raise shown

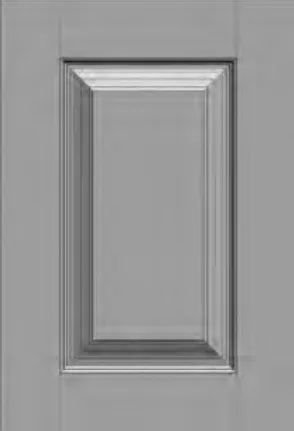

Provence
Door

Provence

Minimum size
9-7/8" x 9-7/8"
  • 3-3/8" framing
  • P-320 raise shown
Provence
Matching drawer front9-1/8" x 5-3/8"
  • 2-1/4" rails
  • 3-3/8" stiles
  • P-057 raise shown

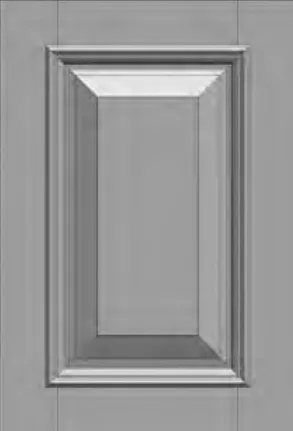

Staffordshire
Door

Staffordshire

Minimum size
10-3/8" x 10-3/8"
  • 3-3/8" framing
  • P-316 raise shown
Staffordshire
Matching drawer front9-1/8" x 5-3/8"
  • 2-1/4" rails
  • 3-3/8" stiles
  • P-057 raise shown
Venus78
Door

Venus78

Minimum size
5-1/4" x 4-7/8"
  • 13/16" wide framing on face
  • 7/8" thick framing
Venus78
Matching drawer front5-1/4" x 4-7/8"
  • 13/16" wide framing on face
  • 7/8" thick framing

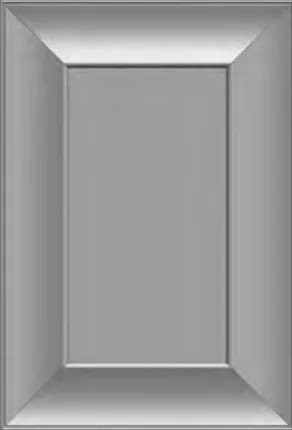

Woodridge (miter)
Door

Woodridge (miter)

Minimum size
9-7/16" x 9-7/16"
  • 3-1/2" framing
  • 1/2" Reverse G-Cove raise shown
Woodridge (miter)
Matching drawer front5-3/8" x 5-3/8"
  • 2-1/4" framing
  • P-116 raise shown

Flat Panel: Mortise & Tenon

Flat veneered plywood panels on a mortise and tenon frame.

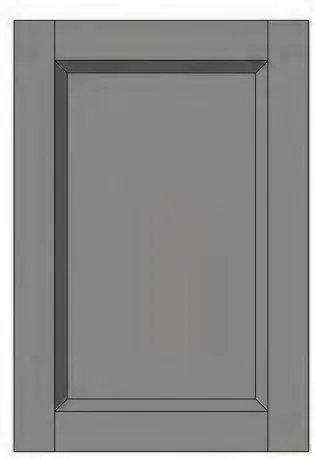

RutlandMTPP
Door

RutlandMTPP

Minimum size
7-3/4" x 7-3/4"
  • 2-11/16" framing
  • 1/4" veneered panel
RutlandMTPP
Matching drawer front7-3/4" x 5"
  • 2-1/16" rails
  • 2-11/16" stiles
  • 1/4" veneered panel

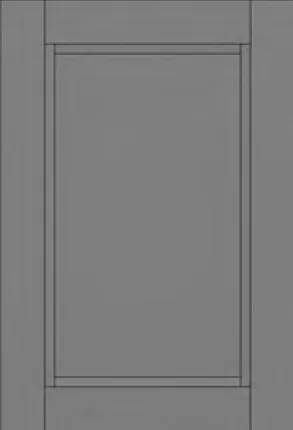

SavannahPP
Door

SavannahPP

Minimum size
7-7/8" x 5-7/8"
  • 2-3/4" framing
  • 1/4" veneered panel
SavannahPP
Matching drawer front7-7/8" x 3-3/8"
  • 1-1/2" rails
  • 2-3/4" stiles
  • 1/4" veneered panel

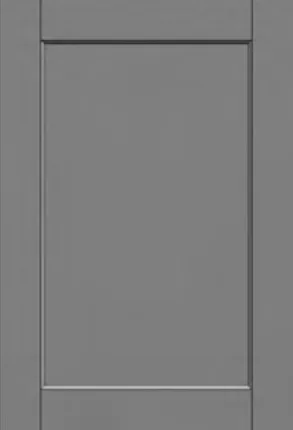

TW-10
Door

TW-10

Minimum size
7" x 5"
  • 2-1/4" framing
  • 1/4" veneered panel
TW-10
Matching drawer front7" x 3-3/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • 1/4" veneered panel

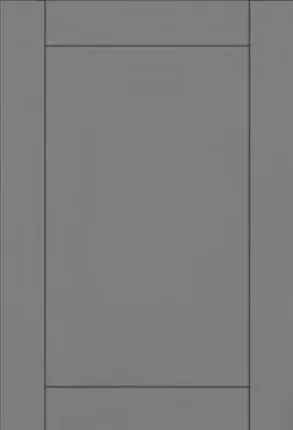

TW-1038
Door

TW-1038

Minimum size
7" x 6-1/2"
  • 2-1/4" framing
  • 3/8" veneered panel
TW-1038
Matching drawer front7" x 4"
  • 1-1/2" rails
  • 2-1/4" stiles
  • 3/8" veneered panel

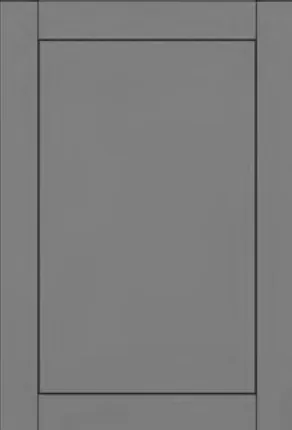

TW-10716
Door

TW-10716

Minimum size
7" x 5-7/8"
  • Face – 1-7/8" framing
  • Back – 2-1/4" framing
  • 7/16" veneered panel
TW-10716
Matching drawer front7" x 5-1/8"
  • 1-7/8" on face
  • 2-1/4" on back
  • 7/16" veneered panel

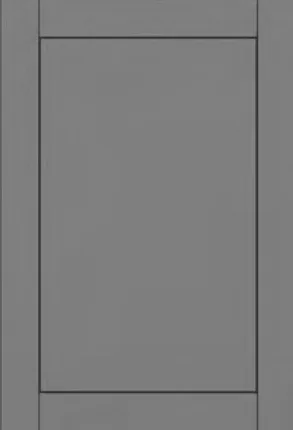

TW-10916
Door

TW-10916

Minimum size
7" x 5-7/8"
  • Face – 1-7/8" framing
  • Back – 2-1/4" framing
  • 9/16" veneered panel
TW-10916
Matching drawer front7" x 5-1/8"
  • 1-7/8" on face
  • 2-1/4" on back
  • 9/16" veneered panel

Flat Panel: Mitered

Flat veneered panels with mitered frames, from slim modern edges to wider profiles.

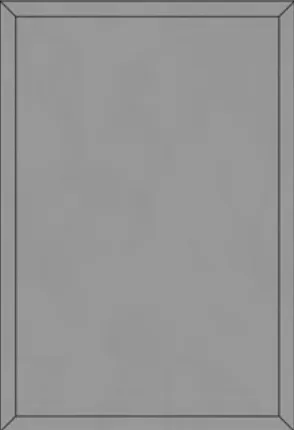

Juno
Door

Juno

Minimum size
5-1/4" x 5-1/4"
  • 13/16" wide framing on face
  • 25/32" thick
  • 1/4" veneered panel

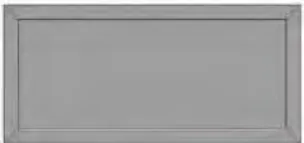

Juno
Matching drawer front5-1/4" x 4-7/8"
  • 13/16" wide framing on face
  • 25/32" thick framing
  • 9/16" veneered panel
Presidential MiterPP
Door

Presidential MiterPP

Minimum size
5-3/8" x 5-3/8"
  • 2-1/2" framing
  • 1/4" veneered panel
RutlandPP
Door

RutlandPP

Minimum size
6-3/8" x 6-3/8"
  • 2-11/16" framing
  • 1/4" veneered panel
RutlandPP
Matching drawer front5" x 5"
  • 2-1/16" framing
  • 1/4" veneered panel

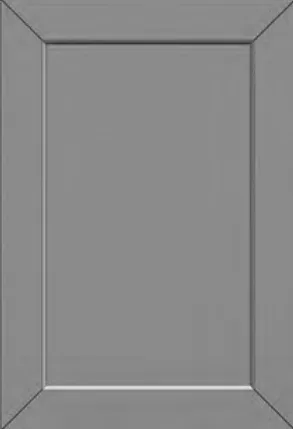

TW-10 Miter
Door

TW-10 Miter

Minimum size
5" x 5"
  • 2-5/16" framing
  • 1/4" veneered panel

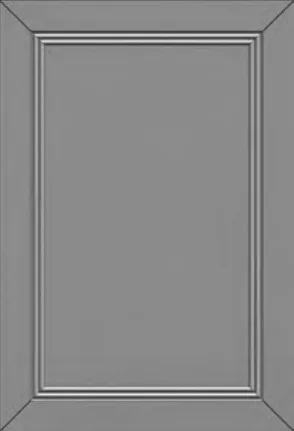

TW-10533
Door

TW-10533

Minimum size
5" x 5"
  • 2-5/16" framing
  • 1/4" veneered panel

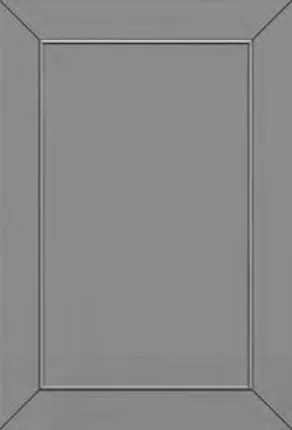

TW-10751
Door

TW-10751

Minimum size
5" x 5"
  • 2-5/16" framing
  • 1/4" veneered panel

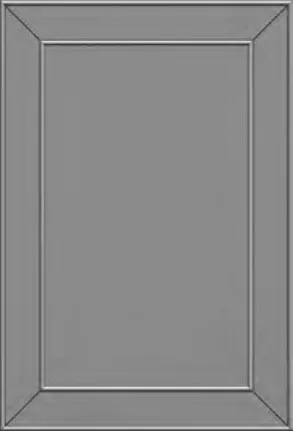

TW-10827
Door

TW-10827

Minimum size
5" x 5"
  • 2-5/16" framing
  • 1/4" veneered panel
AspenPP
Door

AspenPP

Minimum size
5-1/4" x 5-1/4"
  • 1/2" wide framing on face
  • 1" thick framing
  • 3/4" veneered panel
AspenPP
Matching drawer front4-3/4" x 4-3/4"
  • 1/2" wide framing on face
  • 1" thick framing
  • 3/4" veneered panel

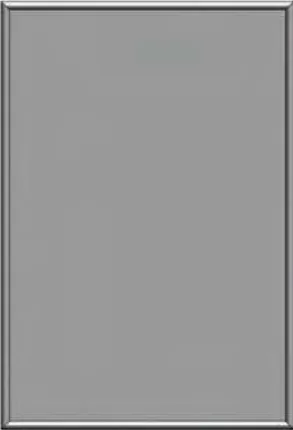

BoulderPP
Door

BoulderPP

Minimum size
5-1/4" x 5-1/4"
  • 7/16" wide framing on face
  • 15/16" thick framing
  • 3/4" veneered panel
BoulderPP
Matching drawer front4-3/4" x 4-3/4"
  • 7/16" wide framing on face
  • 15/16" thick framing
  • 3/4" veneered panel

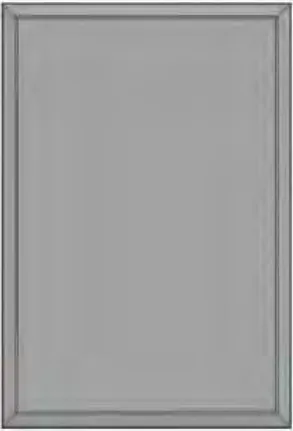

FargoPP
Door

FargoPP

Minimum size
5-1/4" x 5-1/4"
  • 13/16" wide framing on face
  • 1" thick framing
  • 3/4" veneered panel

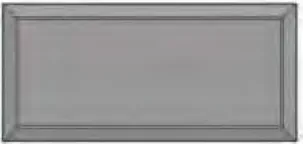

FargoPP
Matching drawer front4-3/4" x 4-3/4"
  • 13/16" wide framing on face
  • 1" thick framing
  • 3/4" veneered panel

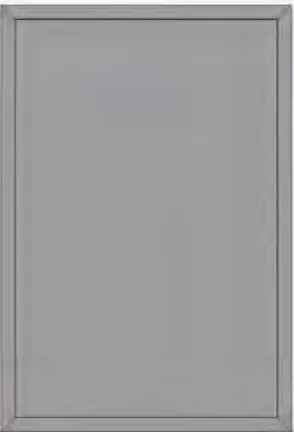

OmahaPP
Door

OmahaPP

Minimum size
5-1/4" x 5-1/4"
  • 3/4" wide framing on face
  • 1" thick framing
  • 3/4" veneered panel

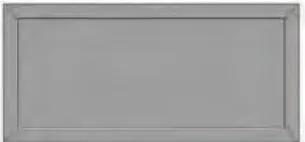

OmahaPP
Matching drawer front4-3/4" x 4-3/4"
  • 3/4" wide framing on face
  • 1" thick framing
  • 3/4" veneered panel

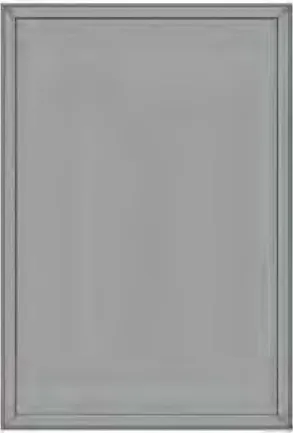

TopekaPP
Door

TopekaPP

Minimum size
5-1/4" x 5-1/4"
  • 3/4" wide framing on face
  • 1" thick framing
  • 3/4" veneered panel

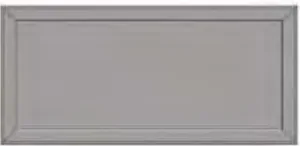

TopekaPP
Matching drawer front4-3/4" x 4-3/4"
  • 3/4" wide framing on face
  • 1" thick framing
  • 3/4" veneered panel

Applied Moulding

A decorative moulding applied around the panel adds depth and detail.

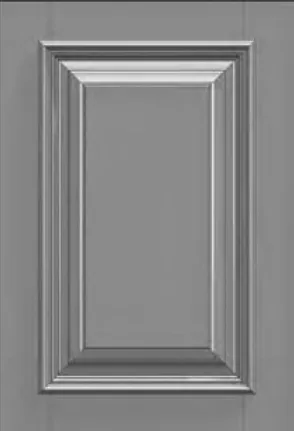

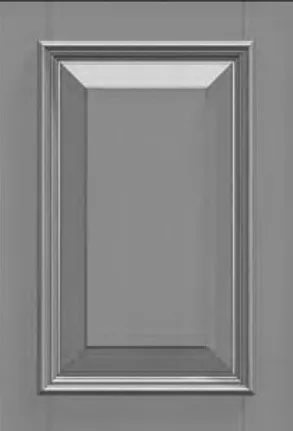

CRP-10A48
Door

CRP-10A48

Minimum size
9-3/8" x 9-3/8"
  • 3" framing
  • P-008 raise shown
CRP-10A48
Matching drawer front8-3/8" x 4-7/8"
  • 2" rails
  • 3" stiles
  • P-057 raise shown

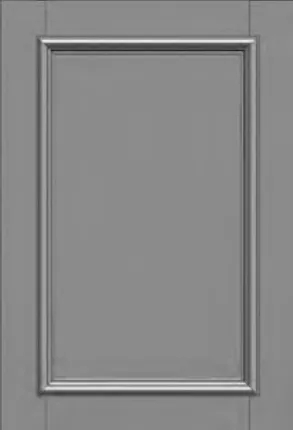

CRP-10161
Door

CRP-10161

Minimum size
7" x 6-3/4"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
CRP-10161
Matching drawer front7" x 4-1/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-057 raise shown

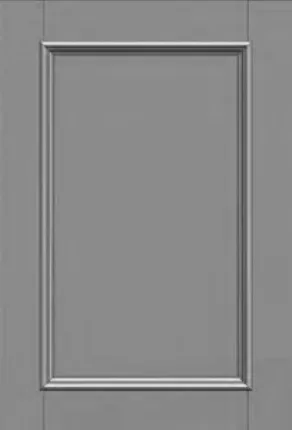

CRP-101728
Door

CRP-101728

Minimum size
7" x 6-3/4"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
CRP-101728
Matching drawer front7" x 4-1/2"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-057 raise shown

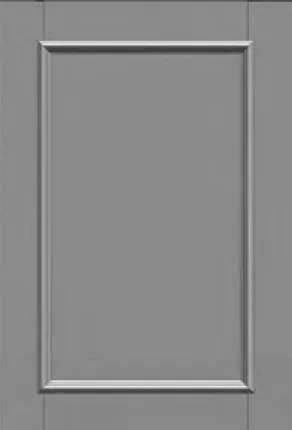

CRP-10797
Door

CRP-10797

Minimum size
7" x 6-3/4"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
CRP-10797
Matching drawer front7" x 4"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-057 raise shown

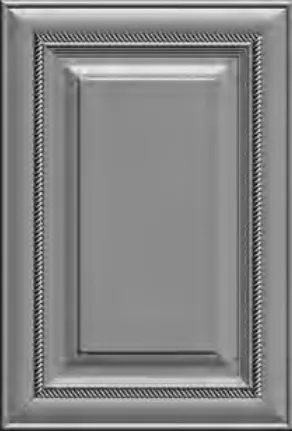

LaSalle
Door

LaSalle

Minimum size
8-5/8" x 8-5/8"
  • 2-7/8" framing
  • M-Bead raise shown
LaSalle
Matching drawer front4-7/8" x 4-7/8"
  • 2" framing
  • P-057 raise shown

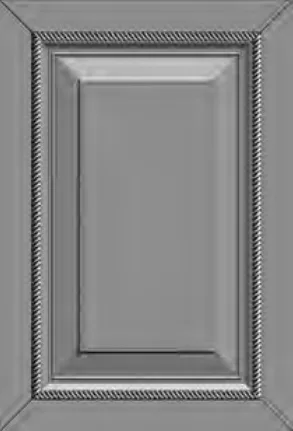

Marquis
Door

Marquis

Minimum size
8-7/8" x 8-7/8"
  • 2-15/16" framing
  • Louis XIII raise shown
Marquis
Matching drawer front4-7/8" x 4-7/8"
  • 2" framing
  • P-057 raise shown

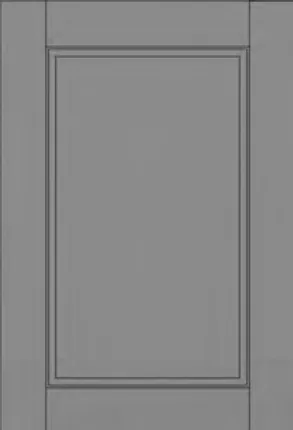

Radcliffe
Door

Radcliffe

Minimum size
7-1/4" x 7-1/4"
  • 2-1/4" framing
  • 1/4" veneered panel
Radcliffe
Matching drawer front7-1/4" x 5-5/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • 1/4" veneered panel

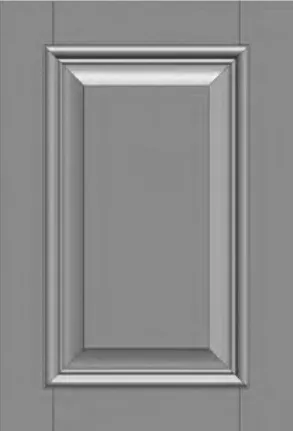

Ridgemont
Door

Ridgemont

Minimum size
9" x 9"
  • 2-3/4" framing
  • P-602 raise shown
Ridgemont
Matching drawer front7-7/8" x 4-3/4"
  • 1-1/2" rails
  • 2-3/4" stiles
  • P-057 raise shown

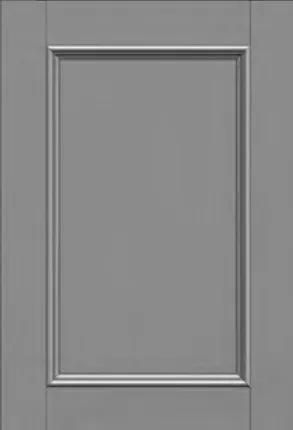

Verona
Door

Verona

Minimum size
7-1/4" x 7-1/4"
  • 2-1/4" framing
  • 1/4" veneered panel
Verona
Matching drawer front7-1/4" x 5-5/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • 1/4" veneered panel

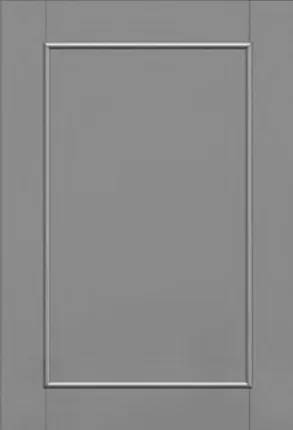

Wayland
Door

Wayland

Minimum size
7" x 6-3/4"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
Wayland
Matching drawer front7" x 4"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-057 raise shown

Applied Moulding on Slab

A slim moulding framing a flat veneered slab, a clean transitional look.

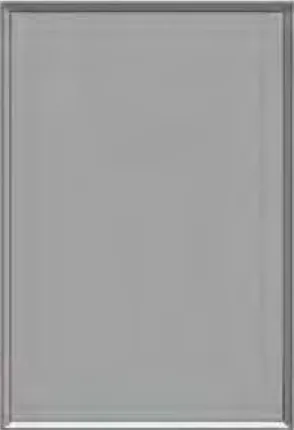

Aspen
Door

Aspen

Minimum size
4" x 4"
  • 1/2" wide moulding on face
  • 1" thick moulding
  • 3/4" veneered panel

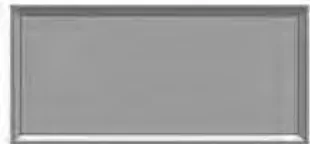

Aspen
Matching drawer front4" x 4"
  • 1/2" wide moulding on face
  • 1" thick moulding
  • 3/4" veneered panel

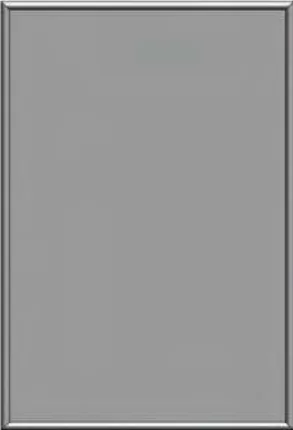

Boulder
Door

Boulder

Minimum size
4" x 4"
  • 7/16" wide moulding on face
  • 15/16" thick moulding
  • 3/4" veneered panel
Boulder
Matching drawer front4" x 4"
  • 7/16" wide moulding on face
  • 15/16" thick moulding
  • 3/4" veneered panel

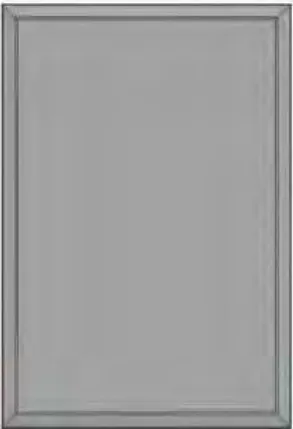

Fargo
Door

Fargo

Minimum size
4" x 4"
  • 13/16" wide moulding on face
  • 1" thick moulding
  • 3/4" veneered panel

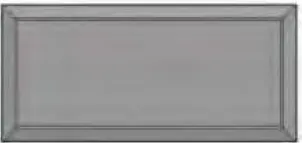

Fargo
Matching drawer front4" x 4"
  • 13/16" wide moulding on face
  • 1" thick moulding
  • 3/4" veneered panel

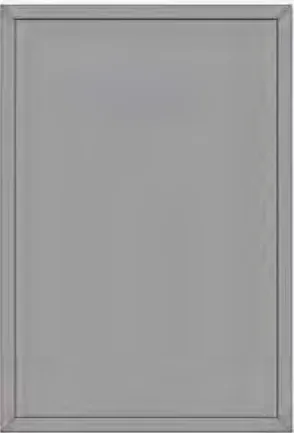

Omaha
Door

Omaha

Minimum size
4" x 4"
  • 3/4" wide moulding on face
  • 1" thick moulding
  • 3/4" veneered panel

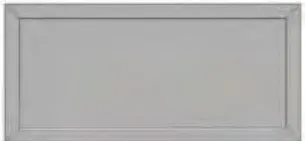

Omaha
Matching drawer front4" x 4"
  • 3/4" wide moulding on face
  • 1" thick moulding
  • 3/4" veneered panel
Topeka
Door

Topeka

Minimum size
4" x 4"
  • 3/4" wide moulding on face
  • 1" thick moulding
  • 3/4" veneered panel

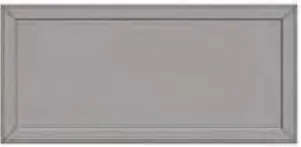

Topeka
Matching drawer front4" x 4"
  • 3/4" wide moulding on face
  • 1" thick moulding
  • 3/4" veneered panel
Hastings
Drawer front

Hastings

Minimum size
3-3/4" x 3-3/4"
  • 11/16" wide moulding on face
  • 1-1/16" thick moulding
  • 9/16" veneered panel
Rothbury
Drawer front

Rothbury

Minimum size
3-3/4" x 3-3/4"
  • 1" wide moulding on face
  • 15/16" thick moulding
  • 9/16" veneered panel

Grooved Panel

Reeded and beadboard-style panels with vertical or horizontal grooves.

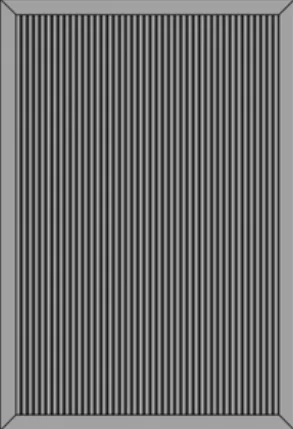

Alexandreia
Door

Alexandreia

Minimum size
5-1/4" x 5-1/4"
  • 13/16" wide framing on face
  • P-884 raise shown
  • Vertical grain only
  • G-239 groove, 5/16" reed width
  • Single panel width up to 48"; wider doors are made as a multi-panel design.
Alexandreia
Matching drawer front5-1/4" x 4-7/8"
  • 13/16" wide framing on face
  • P-884 raise shown
  • Vertical grain only
  • G-239 groove, 5/16" reed width

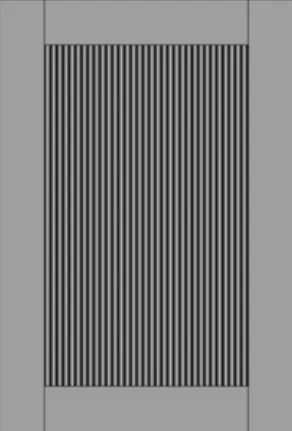

Tripoli
Door

Tripoli

Minimum size
7" x 7"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
  • Vertical grain only
  • G-239 groove, 5/16" reed width
  • Single panel width up to 24"; wider doors are made as a multi-panel design.
Tripoli
Matching drawer front7" x 3-7/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • P-057 raise shown
  • Vertical grain only
  • G-239 groove, 5/16" reed width

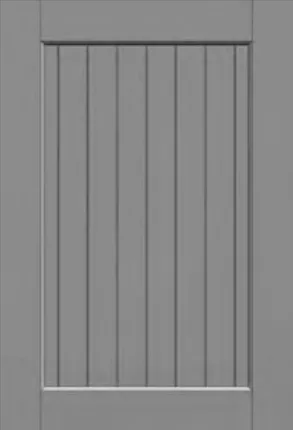

Ardmore
Door

Ardmore

Minimum size
7" x 6-3/4"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
  • Vertical grain only
  • G-015 groove, 1-1/2" spacing
Ardmore
Matching drawer front7" x 5-1/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • 3/8" Reverse G-Cove raise shown
  • Vertical grain only
  • G-015 groove, 1-1/2" spacing

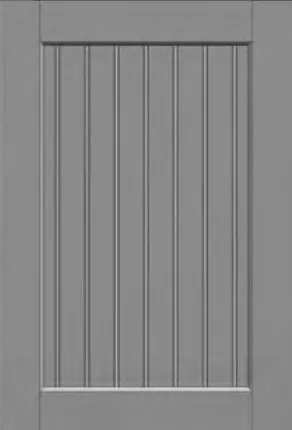

Yardley
Door

Yardley

Minimum size
7" x 6-3/4"
  • 2-1/4" framing
  • 3/8" Reverse G-Cove raise shown
  • Vertical grain only
  • G-012 groove, 1-1/2" spacing
Yardley
Matching drawer front7" x 5-1/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • 3/8" Reverse G-Cove raise shown
  • Vertical grain only
  • G-012 groove, 1-1/2" spacing

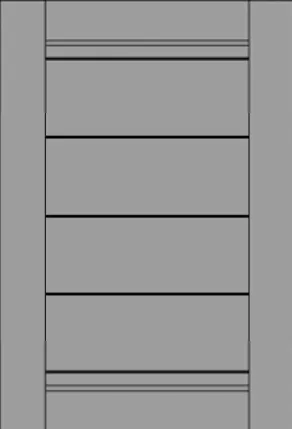

EriksonPP
Door

EriksonPP

Minimum size
7" x 7"
  • 2-1/4" framing
  • 1/4" veneered panel
  • Horizontal grain only
  • G-015 groove, 4" spacing
EriksonPP
Matching drawer front7" x 3-7/8"
  • 1-1/2" rails
  • 2-1/4" stiles
  • 1/4" veneered panel
  • Horizontal grain only
  • G-015 groove, 4" spacing

Slab, Batten & Edgebanded

Flat one-piece and three-piece fronts for modern and minimalist kitchens.

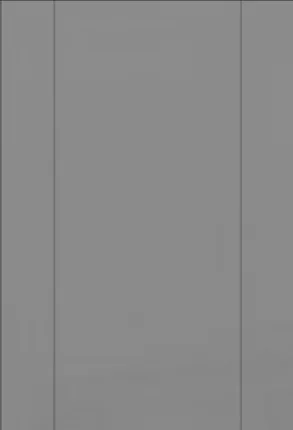

Aurora
Door

Aurora

Minimum size
7-1/2" x 7-1/2"
  • Stiles – 2-1/4" framing on face
  • Horizontal grain standard on panel
  • Solid wood framing sits slightly higher than the 3/4" thick plywood panel
  • MDF core plywood panel
Aurora
Matching drawer front7-1/2" x 2-3/4"
  • Stiles – 2-1/4" framing on face
  • Horizontal grain standard on panel
  • Solid wood framing sits slightly higher than the 3/4" thick plywood panel

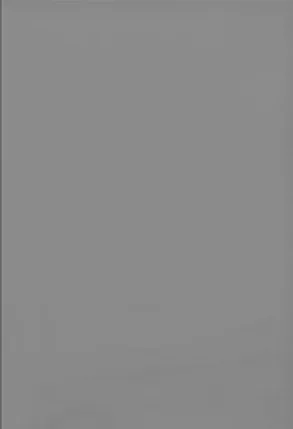

Flush Batten
Door

Flush Batten

Minimum size
6" x 7-1/2"
  • Battens are attached to the back, 3" from the top and bottom of the door and 1-7/8" from each edge

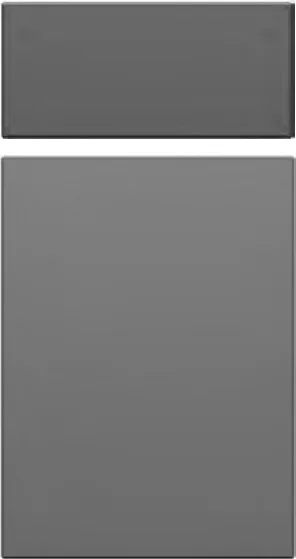

Astoria
Door or drawer front

Astoria

Minimum size
Door or drawer
  • Min 2" x 6", max 48" x 96"
  • 2mm matching species veneer edgeband
  • Vertical grain standard

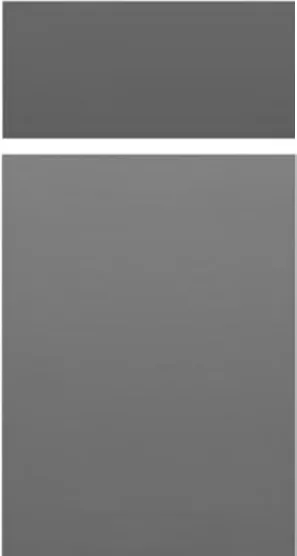

Savoy
Door or drawer front

Savoy

Minimum size
Door or drawer
  • Min 2" x 6", max 48" x 96"
  • .5mm matching species veneer edgeband
  • Vertical grain standard
Slab
Drawer front

Slab

Minimum size
1-1/2" x 2-1/2"
  • Any edge profile
  • 3/4" or 1" slab
#10
Drawer front

#10

Minimum size
3" x 3"
  • Matches slant raise
  • 3/4" or 1" slab
Keystone
Drawer front

Keystone

Minimum size
2-3/4" x 2-3/4"
  • Matches G-Cove raise
  • 3/4" or 1" slab
Marcel
Drawer front

Marcel

Minimum size
3-1/2" x 3-1/2"
  • 3/4" or 1" slab
  • Presidential raise shown
10141
Drawer front

10141

Minimum size
3-1/4" x 3-1/4"
  • 3/4" or 1" slab
1-1/8" Sandwich
Drawer front

1-1/8" Sandwich

Minimum size
3-1/2" x 3-1/2"
  • 3/4" Slant raise shown
  • Specify panel raise and edge profile
  • Two slabs are glued together to create a thicker drawer front

Minimum sizes are based on the panel raise shown and vary by raise. Doors come with vertical grain and drawer fronts with horizontal grain unless noted; the other direction is available on request. Images show the door profile only; finish and wood species are chosen separately.

PDF catalog59 pages · 19 MB
View Download
More catalogs
Selection GuideColor GuideSuper Matte CollectionAll catalogs & guides →

Like a door? Hold it in your hands.

Order a sample door in the wood and finish you want before deciding.

Request a sample
