71 accessories and organizers from our catalog: drawer options, cutlery inserts, pull-outs, trash cans, corner systems and more, with sizes and part numbers.
Category

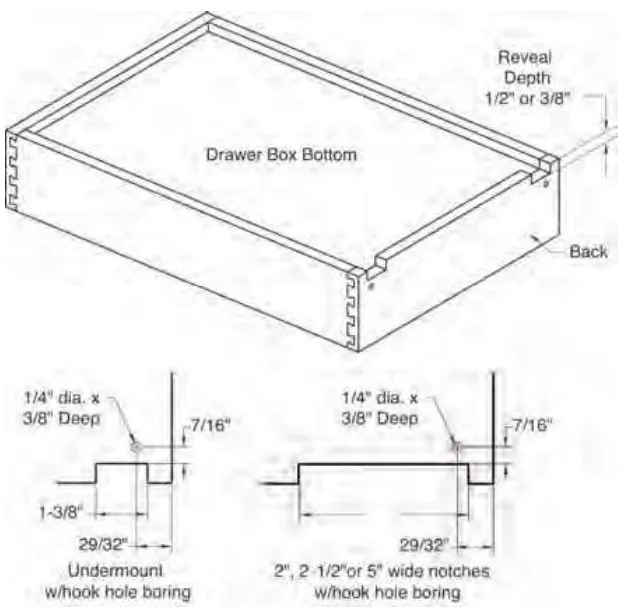

Undermount Notching Options
1-3/8" undermount notching only, or with hook hole boring.
2" wide undermount notching only, or with hook hole boring.
2-1/2" wide undermount notching only, or with hook hole boring.
5" wide undermount notching with hook hole boring (included standard).
Minimum drawer box width: 6" with 1-3/8" and 2" notches; 11-1/4" with 2-1/2" and 5" notches.
Bread Box Top Routing
Designed for 1/8" or 1/4" thick lids.
9/32" deep groove on the sides only.
1/8" rout is 5/32" wide; 1/4" rout is 9/32" wide.
Minimum box height 4".
Lid not included.
Cut-Down Sides
Available for 3", 4" or 6" high drawer boxes only.
Add 1/8" to the box height when ordering 3/8" bottoms.
Rear box height 2".
Unfinished dovetails not available.

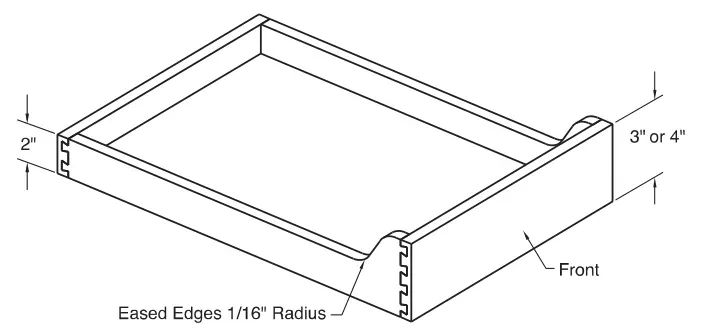

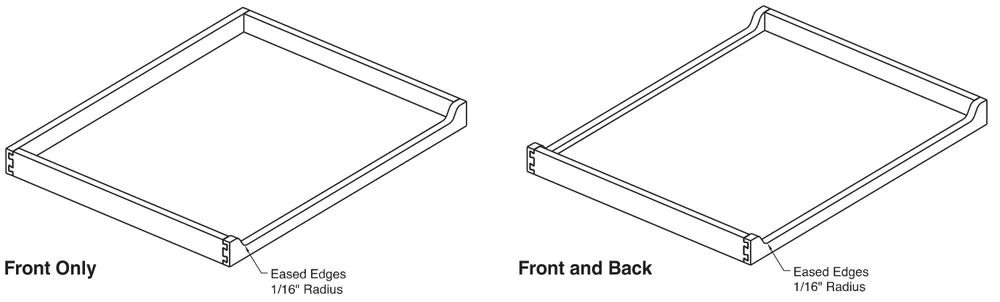

Keyboard Tray Option
Front only, or front and back cut down, with eased edges (1/16" radius).
Minimum box width 12".
Minimum box height 2"; maximum 3-1/8".
Unfinished dovetails not available.

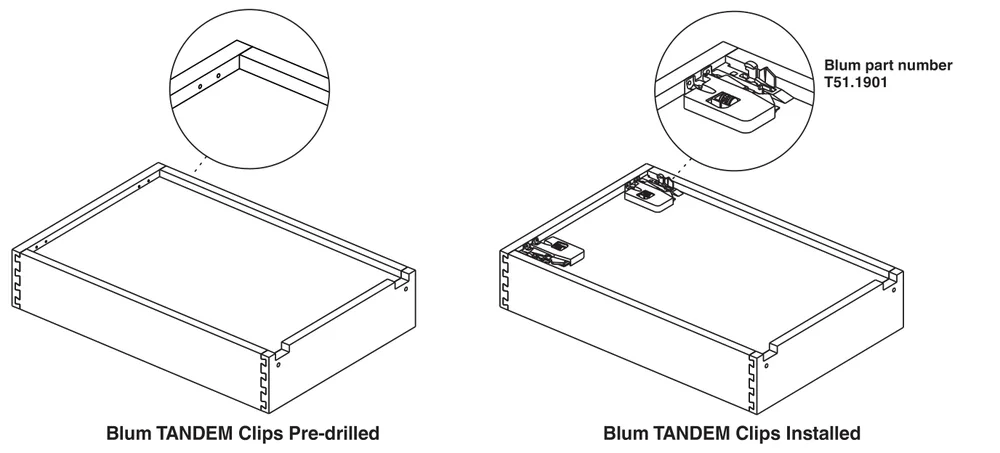

Blum TANDEM Clip Options
Pre-drilling and installation options for Blum TANDEM drawer hardware.
Pilot holes are drilled at the proper angle and spacing to accept TANDEM clips (Blum part T51.1901).
Minimum box width 5-1/2".
1/2" bottom reveal only.
Undermount notching with hook hole boring is an option and must be specified.
TANDEM clips adjust side to side, in height and in depth to fine-tune the drawer front alignment. Loose clips not available.

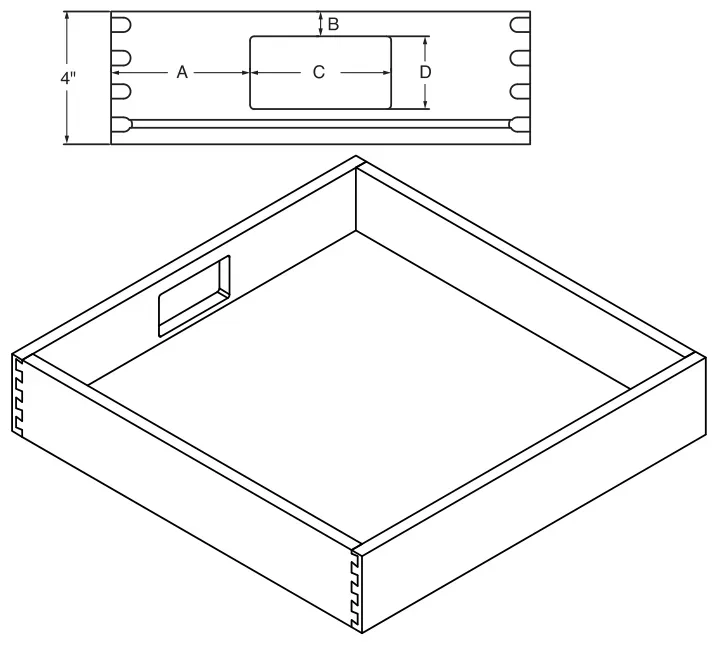

Charging Station Rout
Rout sized for a charging station and drawer-mounted receptacles (rout only; the charging device is not included).
Specify dimensions A, B, C and D. The rout can be centered or offset from either side.
Minimums: A is 1", B is 1/2", C is the drawer box width minus 2", D is the drawer box height minus 1-1/2".
Not available with the unfinished dovetail option.

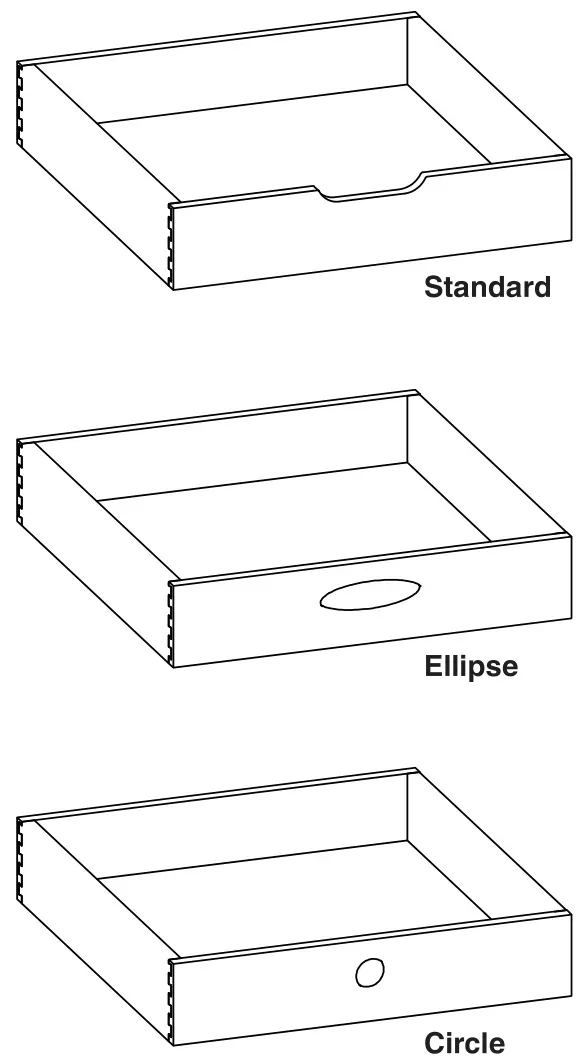

Hand Pull
All hand pulls are centered on the front of the drawer box. Not available with unfinished dovetails.
Standard: minimum box width 8"; pull is 5-1/4" wide and 11/16" high.
Ellipse: minimum box width 9"; pull is 5" wide and 1-1/2" high, 1" below the top edge.
Circle: minimum box width 5-3/4"; pull is 1-1/2" in diameter, 1" below the top edge.

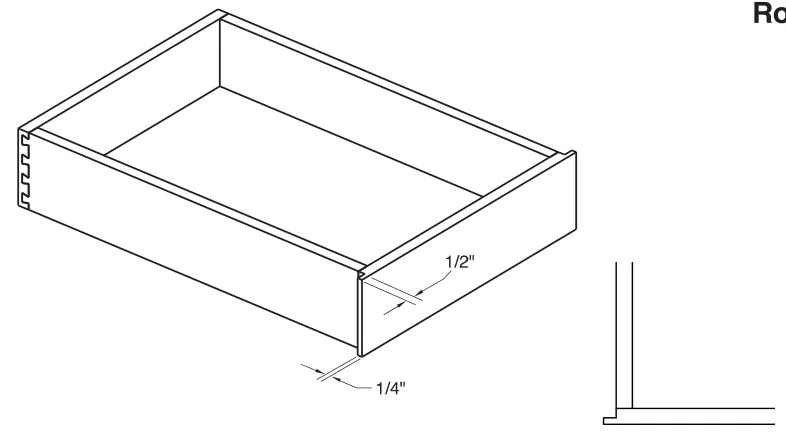

Roll Out Drawer Front Option
The drawer box front is 1" wider than the overall ordered box width.
Minimum box width 8".

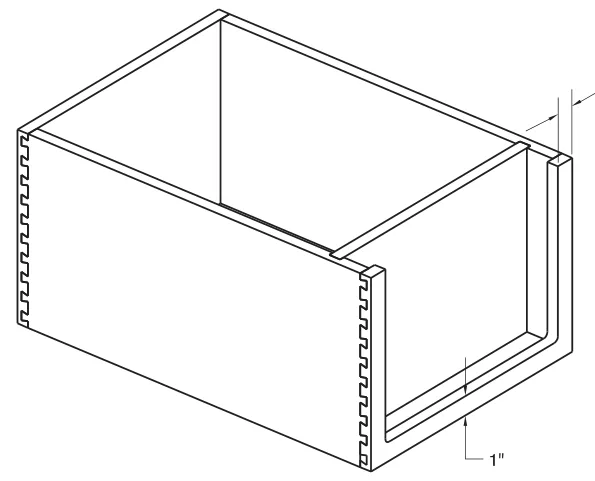

Visible Storage Unit Routing
Minimum box width 12"; maximum 24".
Minimum box height 7".
Removable divider included, 1-1/2" behind the front of the drawer box.

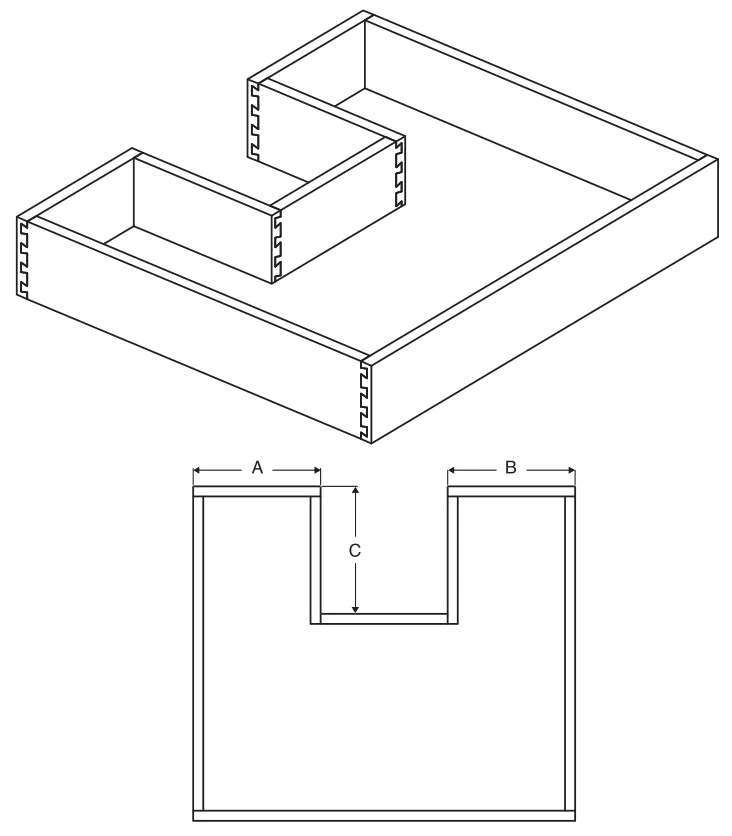

Back Recessed Option
Minimum drawer box width 12".
Minimum depth 8-1/4".
Specify dimensions A, B and C. The recess can be centered or offset from either side.
Minimum dimension for A and B is 4"; for C, 3-5/8".

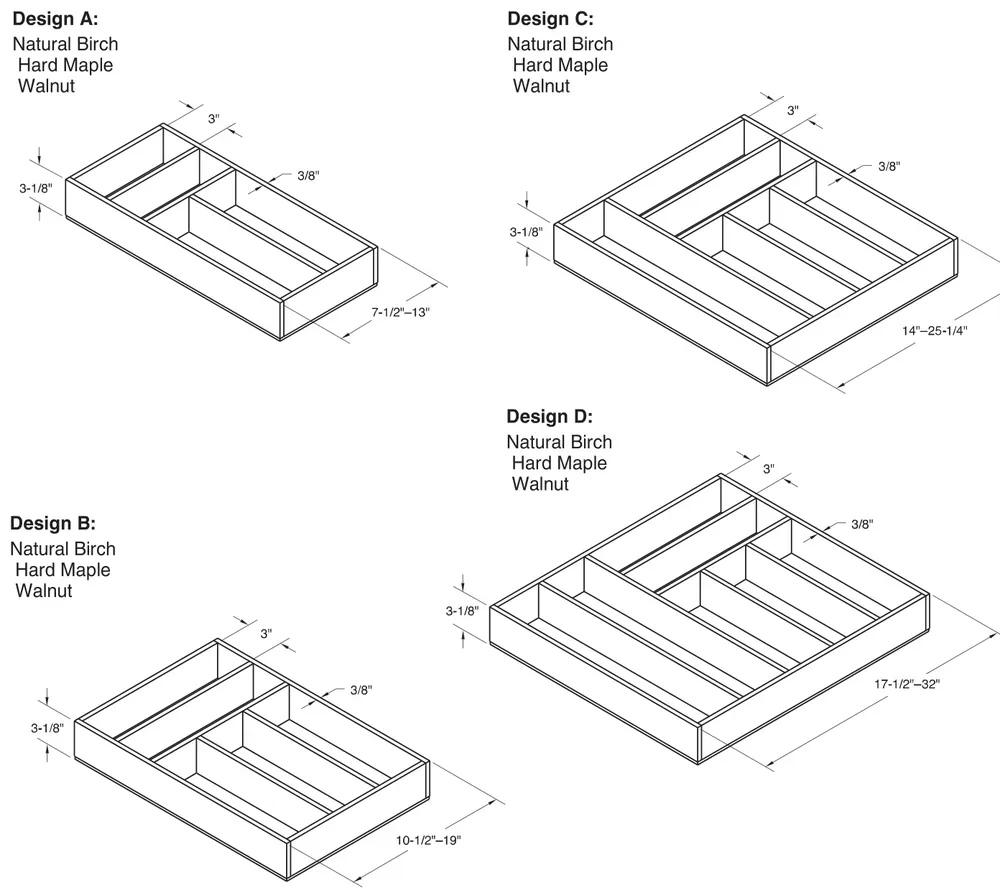

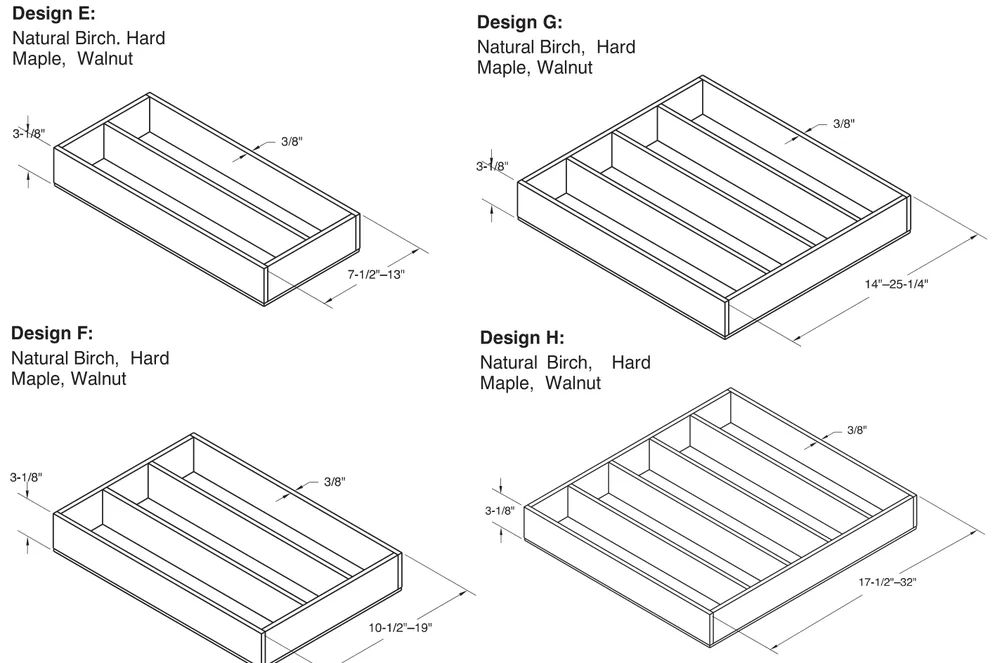

Cutlery Dividers
Available in Hard Maple, Natural Birch and Walnut.
Eight designs, A to H; specify the design when ordering.
Width ranges by design: A and E 7-1/2" – 13"; B and F 10-1/2" – 19"; C and G 14" – 25-1/4"; D and H 17-1/2" – 32".
Depth must be between 16" and 22". Depth and width are specified in 1/16" increments, measured outside edge to outside edge.
When ordered with a drawer box, dividers are sized 1-5/16" less than the exterior width and depth of the drawer box. A custom size divider is ordered as a separate item.
Built with a 1/4" bottom unless "No Bottom" is specified (maximum height without bottom is 2-7/8").
Standard height is 3-1/8". Reduced height is available: minimum 1-5/8" with bottom, 1-3/8" without bottom.

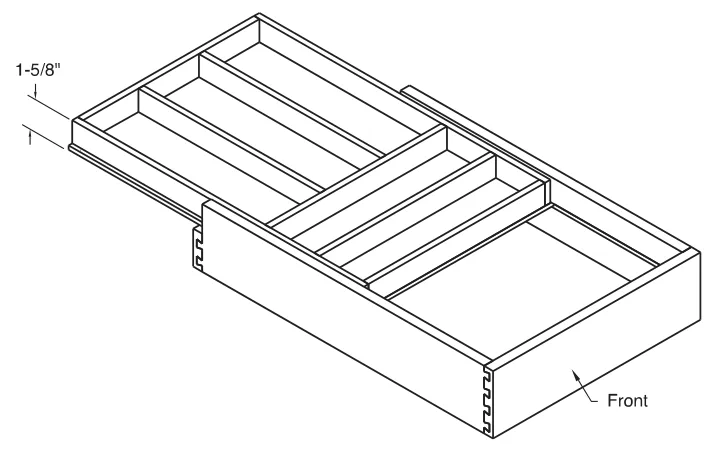

Sliding Cutlery Divider
Available with all divider configurations; specify the design when ordering.
Top divider is 1-3/8" high, mounted on a 1/4" base.
Minimum overall drawer box height is 3-15/16".
Recommended maximum drawer box width is 24" for proper operation.

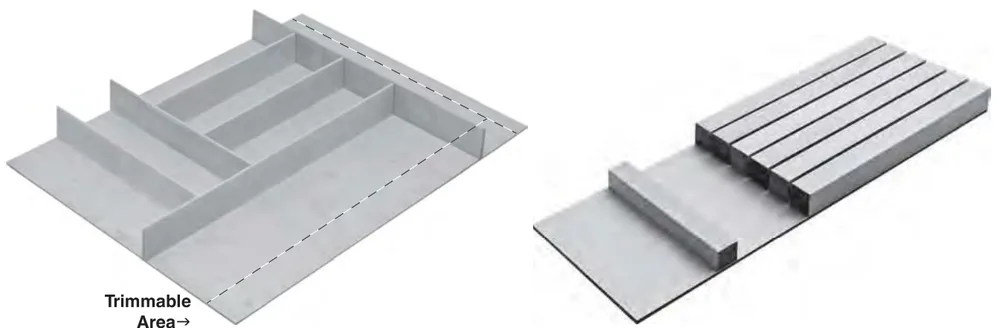

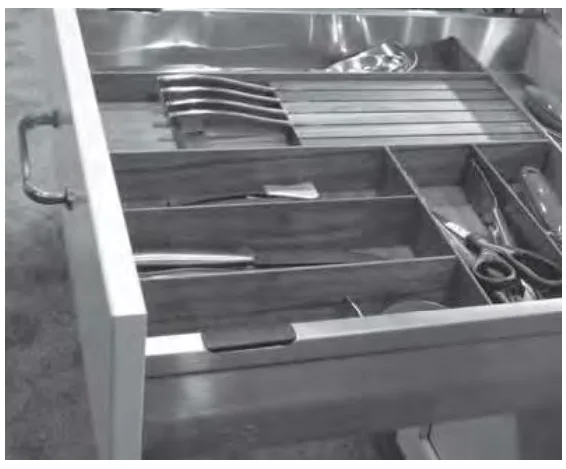

Fineline Cutlery Dividers
Tapered divider design gives sturdy compartments with a slim, minimal profile.
Available in Natural Birch or Walnut with a clear finish.
Unit size before trimming is 1-15/16" high x 20-13/16" long. The base plate is trimmed to fit the interior of a specific drawer box.
Each unit includes a trimmable depth extender for a truly custom fit.
Optional knife block (5-7/16" wide x 16-11/16" deep) holds 5 pieces of cutlery.
Cut-to-size option: dividers can be cut to fit inside a drawer box (specify the interior dimensions); they are packaged separately from the box.
Knife blocks: 556.91.640 (Walnut) and 556.91.940 (Birch), 5-7/16" wide x 16-11/16" long.
Part numbers
556.87.601
556.87.602
556.87.603
556.87.604
556.87.901
556.87.902
556.87.903
556.87.904
556.91.640
556.91.940

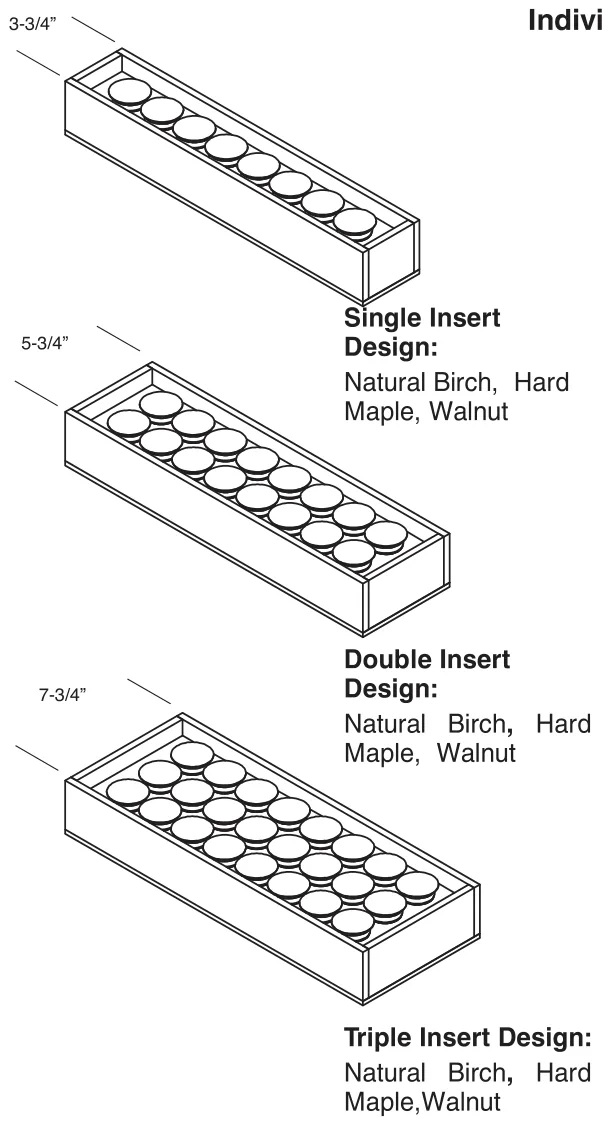

Beverage Pod Drawer Inserts
Holds individual serving beverage pods. Single (3-3/4"), double (5-3/4") and triple (7-3/4") insert designs.
Available in Hard Maple, Natural Birch and Walnut.
Built with 3/8" sides and ends, a 1/4" bottom and a 5/8" top storage panel.
Height is 3-1/8". Width is fixed by design.
Depth is customizable between 16" and 22" in 1/16" increments.
When ordered with a drawer box, inserts are sized 1-5/16" less than the exterior width and depth of the drawer box.
Can be combined with any cutlery divider design to use the full drawer width; specify both designs.

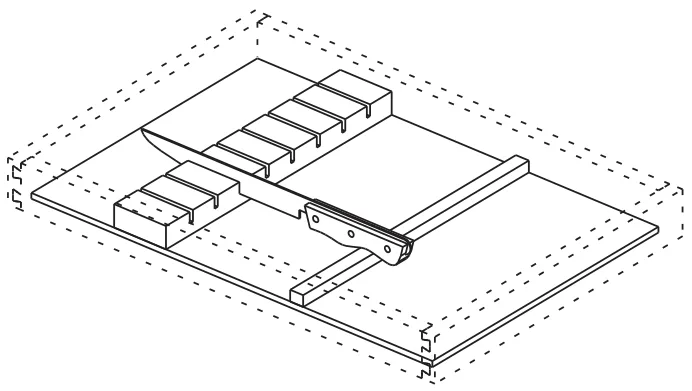

Knife Block Insert
Available in Natural Birch, Hard Maple and Walnut.
Can be sized to fit a specific drawer box or ordered separately (specify width and depth).
Knife block and handle rest are unfinished, mounted on a prefinished 1/4" bottom.
Slots are spaced 1-1/4" apart.
Minimum insert 7-1/2" wide x 16" deep; maximum 21" wide x 22" deep.

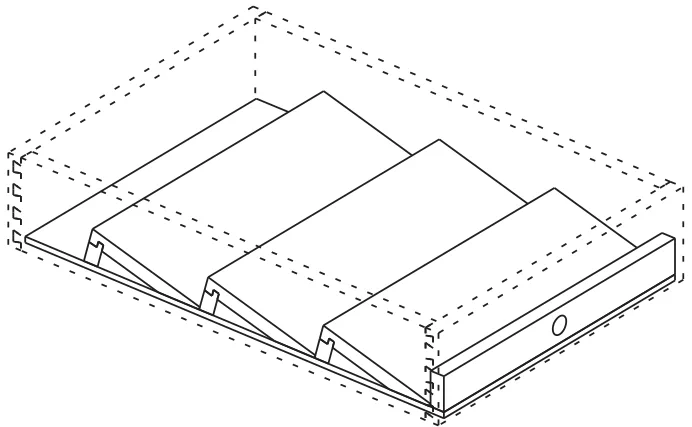

Spice Tray Insert
Available in Natural Birch, Hard Maple and Walnut.
Can be sized to fit a specific drawer box or ordered separately (specify width and depth).
3/4" finger hole centered on the lead rail for easy removal from the drawer box.
Spice rests are 5-1/4" wide and 1-1/2" high, mounted on a prefinished 1/4" bottom.
Minimum insert 7-1/2" wide x 17" deep; maximum 32" wide x 22" deep.

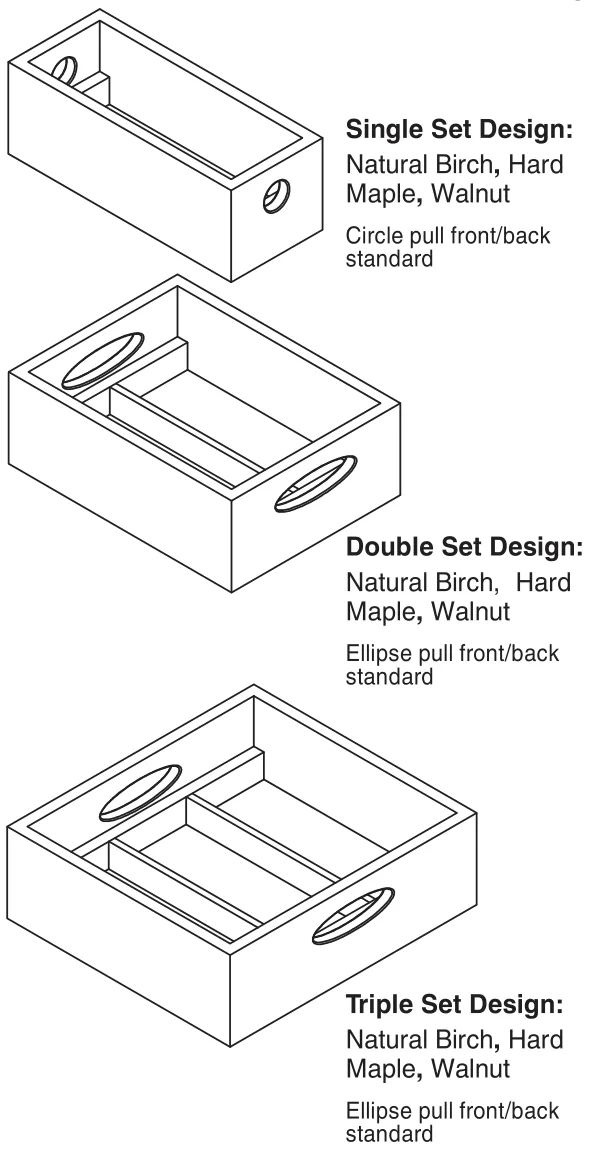

Finish Sample Chip Display Boxes
Dovetailed drawer boxes with hand pulls and interior dividers sized for standard finish sample chips (3/8" thick x 4-3/8" wide x 6-1/8" high). Custom sizes are also available.
Available in Natural Birch, Hard Maple and Walnut. Single set design with circle pulls; double and triple set designs with ellipse pulls.
Matching species wooden spacers at the front and back make the samples easy to flip through. Sample chip sets are ordered separately.
Boxes are 5" high. For 26 piece chip sets: single 5-3/4" wide, double 10-5/8" wide, triple 15-1/2" wide, all 14" deep. For 32 piece sets, order 16-5/8" deep.
Custom sizes: single 5-3/4" – 15" wide, double 10-5/8" – 24" wide, triple 15-1/2" – 31" wide, maximum depth 21".

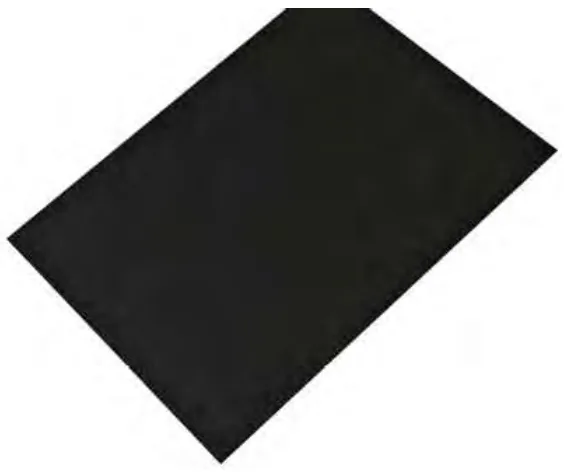

Non-Slip Drawer Liners
Keep utensils in place as drawers open and close.
Non-slip rubber surface on a polystyrene backer deadens sound and protects drawer bottoms against drips and minor spills.
Grey fiber pattern goes well with Birch, Maple and Walnut drawer boxes.
Sold in sheets, easily trimmed with a sharp utility knife and straight edge.
Fits both framed and full access cabinet drawers.
Part 547.92.525: 46-1/16" x 19-3/4". Part 547.92.526: 46-1/16" x 23-5/8".
Part numbers
547.92.525
547.92.526

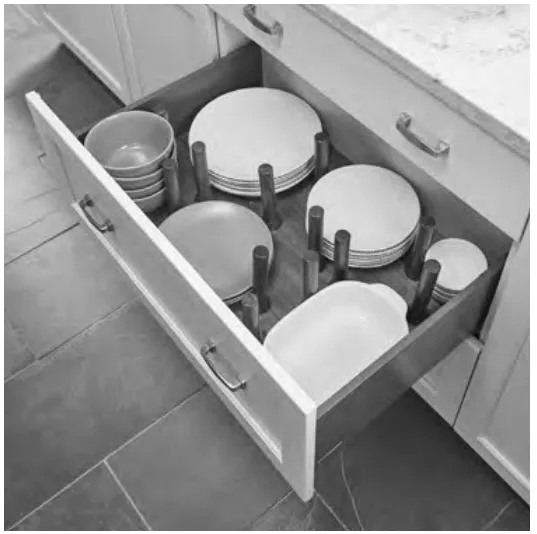

Drawer Peg Storage System
Fits deep drawer boxes to give flexible storage for stacked dishware.
A 5/8" Maple or Walnut plywood base plate with a clear polyurethane finish and matching 6" high solid wood posts; the number of posts varies by base size.
Base plates are pre-drilled in a hole pattern and can be trimmed to size on a table saw. Pegs press into the holes, no fasteners needed.
Fits both framed and full access cabinet drawers.
Kits (W x H x D): 24-1/4" x 6-5/8" x 21-1/4" with 9 posts (2103597A Maple, 2103600A Walnut); 30-1/4" wide with 12 posts (2103598A Maple, 2103601A Walnut); 39-1/4" wide with 16 posts (2103599A Maple, 2103602A Walnut).
Part numbers
2103597A
2103600A
2103598A
2103601A
2103599A
2103602A

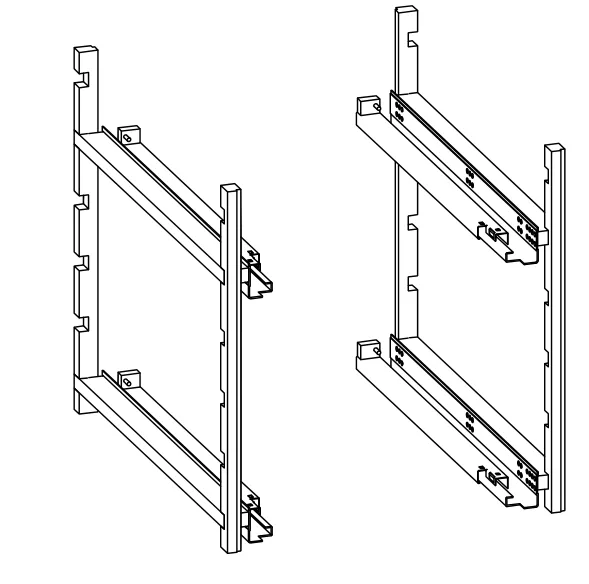

Adjustable Pull-Out Tray System Kits
Unfinished Hard Maple components with Blum TANDEM Plus BLUMOTION soft-close, full extension slides. Drawer boxes not included.
Kits for base (24" deep), vanity (21" deep) or tall utility (21" and 24" deep) cabinets. Base and vanity kits include hardware for 2 trays; tall kits for 4 trays.

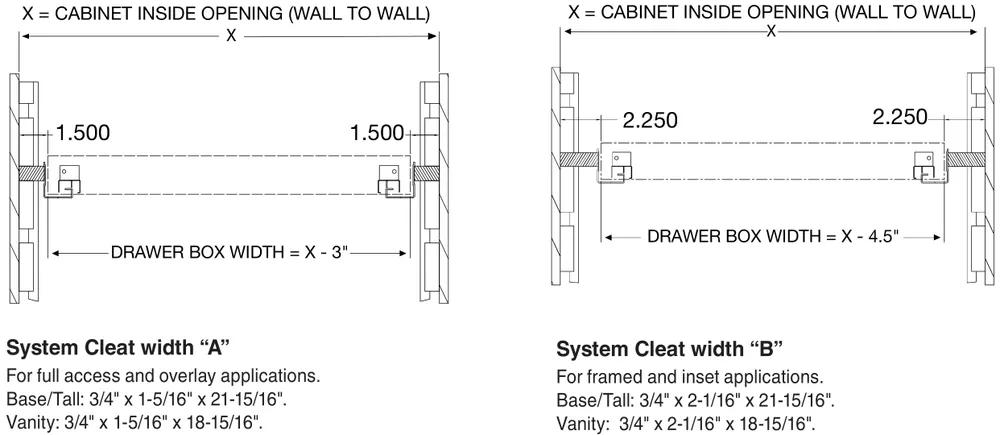

Cleat width "A" (for full access and overlay): drawer box width = cabinet inside opening minus 3". Cleat width "B" (for framed and inset): opening minus 4-1/2".
Corner cleats: base/vanity 4 pieces 3/4" x 1" x 19-1/4" (six positions); tall 4 pieces 3/4" x 1" x 51-3/4" (16 positions). Vertical cleats can be trimmed in height for adjustable shelves.
Single shelf kits: SYSSB24-AA and SYSSV21-AA (cleat "A"); SYSSB24-BA and SYSSV21-BA (cleat "B").
Part numbers
SYSB24-AA
SYSTB24-AA
SYSV21-AA
SYSTV21-AA
SYSB24-BA
SYSTB24-BA
SYSV21-BA
SYSTV21-BA
SYSSB24-AA
SYSSV21-AA
SYSSB24-BA
SYSSV21-BA

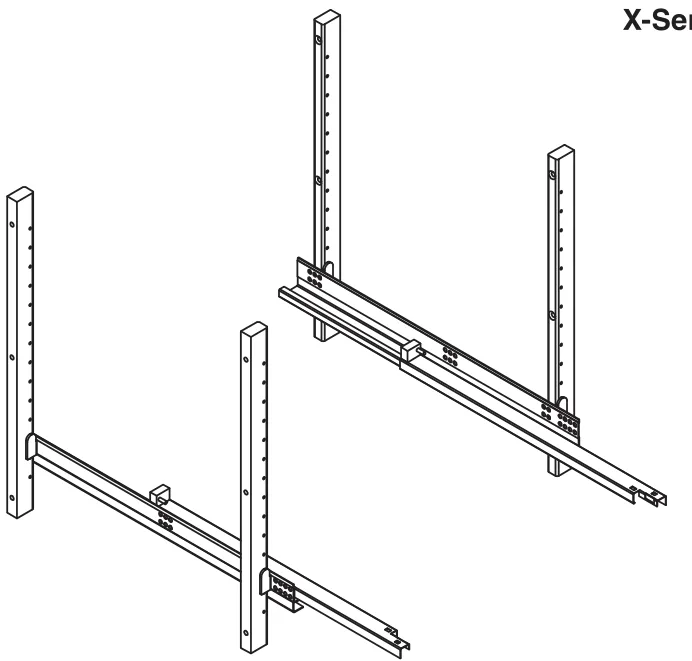

X-Series Adjustable Pull-Out Tray System Kits
Clear prefinished Hard Maple components with patented slide installation and adjustment brackets. Drawer slides not included.
Clips are designed for Blum TANDEM style undermount slides. Pilasters and brackets use 5mm x 32mm spacing.
Kits for base, vanity or tall utility cabinets, in two cleat widths for overlay or inset, framed or frameless construction.
Pilasters can be trimmed in width or height for different cabinet styles and interiors. Drawer boxes are ordered separately, sized for the hardware used.

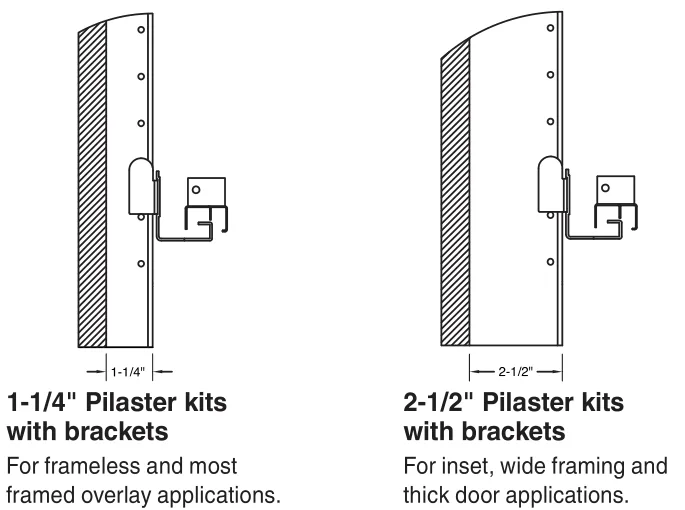

1-1/4" pilaster kits (frameless and most framed overlay): 2100160A base with door and drawer, 2100161A base full height door, 2100162A tall utility.
2-1/2" pilaster kits (inset, wide framing and thick doors): 2100163A base with door and drawer, 2100164A base full height door, 2100159A tall utility.
Part numbers
2100160A
2100161A
2100162A
2100163A
2100164A
2100159A

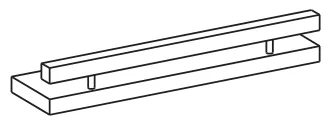

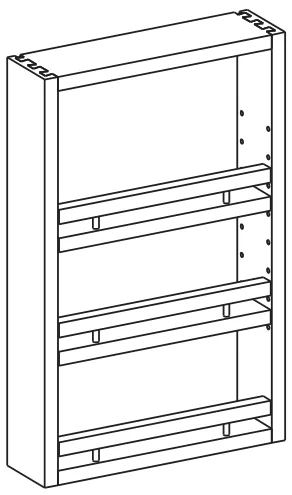

Spice Storage Units
Door-mounted spice rack: dovetail construction with 5/8" sides and ends and a 1/4" plywood back flush with the back.
32mm line bore shelf support system with 5mm locking shelf clips. Matching species retainer rail on the bottom and each adjustable shelf.
Height 18" – 36", width 8" – 21", depth 3-1/8" fixed. 2 shelves up to 23" high, 3 up to 31", 4 up to 36".
Installation hardware is not included; additional hinges and proper installation hardware are required.
Available in Natural Birch, Hard Maple and Walnut. Loose shelves are available (specify the unit and width).

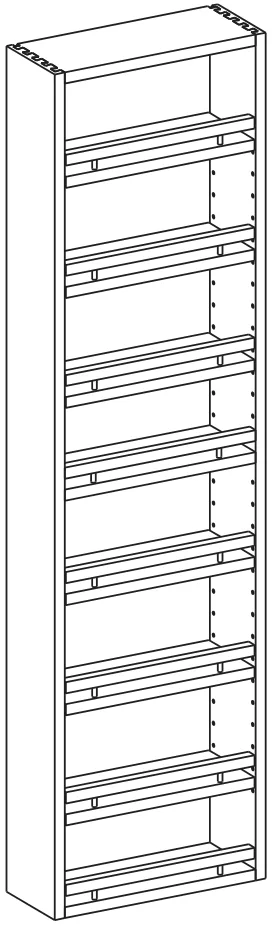

Can Storage Units
Door-mounted can rack: dovetail construction with 5/8" sides and ends and a 1/4" plywood back flush with the back.
32mm line bore shelf support system with 5mm locking shelf clips. Matching species retainer rail on the bottom, the fixed center shelf and each adjustable shelf.
Height 21" – 60", width 8" – 21", depth 5" fixed. Units over 39" high have one fixed, centered shelf for strength.
Shelves: 2 up to 23" high, 3 up to 31", 4 up to 39", 5 up to 47", 6 up to 55", 7 up to 60".
Installation hardware is not included; additional hinges and proper installation hardware are required.
Available in Natural Birch, Hard Maple and Walnut. Loose shelves are available (specify the unit and width).

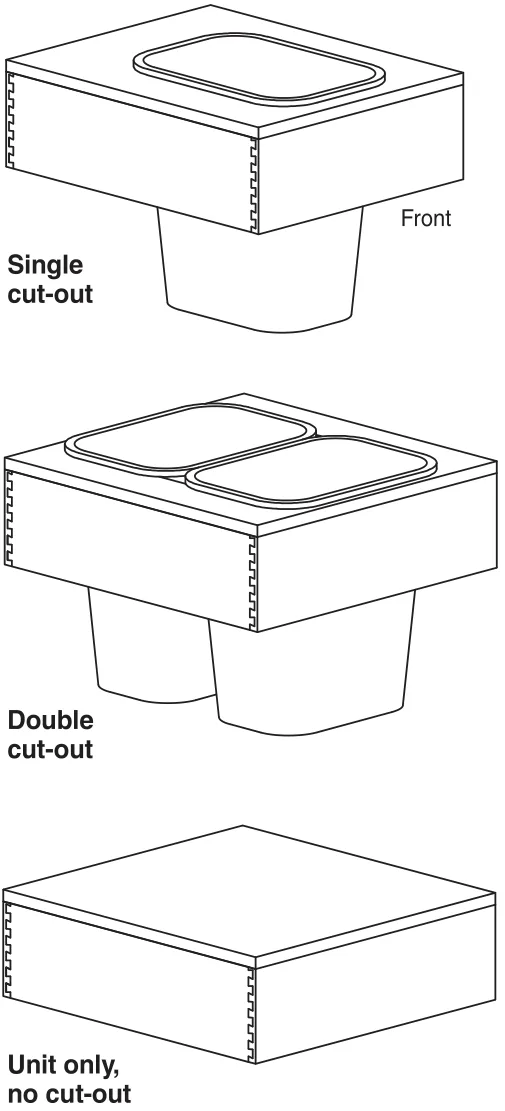

TANDEM Trash Can Pull-Out
3/4" Hard Maple plywood top for Hard Maple and Natural Birch units. Also available in Walnut.
For Blum TANDEM plus BLUMOTION full extension slides (563H5330B) and narrow drawer front locking clips (T51.0801.20), not included.
Single cut-out includes one 7 gallon grey waste can; double cut-out includes two; the no cut-out unit has no can (solid top shipped loose). Cut-outs also fit 13 gallon cans.
Height 6-3/4" fixed (including the 3/4" top). Depth 21-3/4" fixed.
Widths: single cut-out 14-5/8" – 19-1/8"; double cut-out 20-5/8" – 28-1/8"; no cut-out 14-5/8" – 28-1/8".
Replacement waste can: part 2100102.
Part numbers
2100102

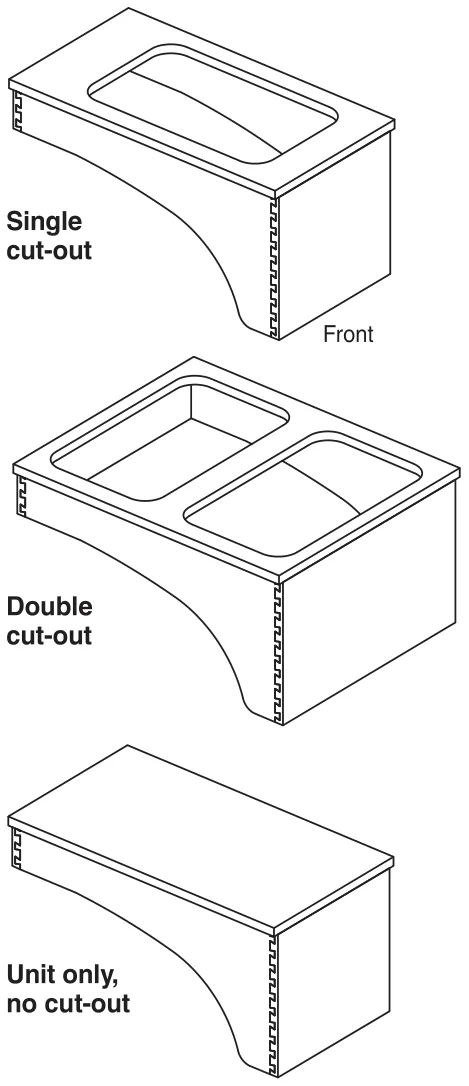

Trash Can Pull-Out
3/4" Hard Maple plywood top for Hard Maple and Natural Birch units. Also available in Walnut.
Specify the drawer box width when ordering; the top extends 3/8" past the sides of the drawer box.
For side mount full extension slides (hardware not included).
Single cut-out includes one 7 gallon grey waste can; double cut-out includes two; the no cut-out unit has no can (solid top shipped loose).
Front height 10" for door mounting hardware; rear height 3". Depth 21-3/4" fixed.
Widths: single cut-out 11" – 21"; double cut-out 15" – 27"; no cut-out 11" – 27".
Part numbers
2100102A
Replacement waste can

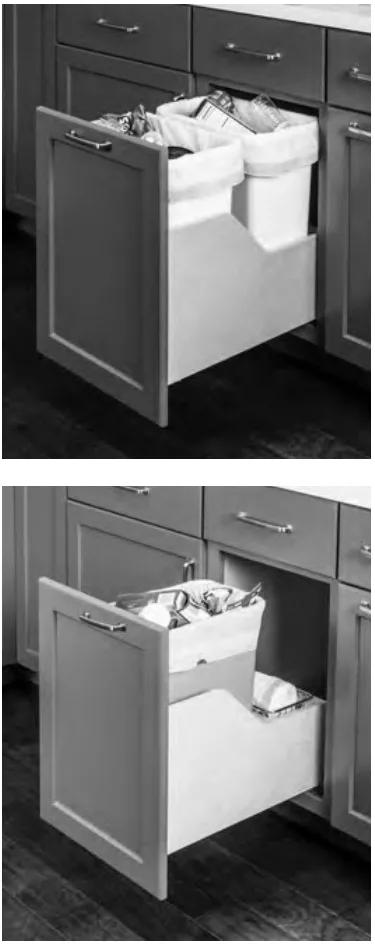

Ready to Install Door Mounted Trash Can Pull-Outs
Mounts to the door bottom. Ships fully assembled with drawer hardware and floor mounting cleats for quick installation.
Full extension soft close undermount glides, 100 lb. capacity.
Includes white 35 or 50 quart trash cans.
Units with 35 quart cans can go in base cabinets with a working top drawer; units with 50 quart cans need full height door base cabinets.
White Birch TSCA compliant plywood with a durable UV topcoat.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2100836A
Single 35 qt can, 11-5/8" x 19-13/16" x 21-13/32" (15" base, 12" min. opening)
2100837A
Double 35 qt cans, 14-5/8" x 19-13/16" x 21-13/32" (18" base, 15" min.)
2100838A
Single 50 qt can, 11-5/8" x 24-7/32" x 21-13/32" (15" base, 12" min.)
2100839A
Double 50 qt cans, 14-5/8" x 24-7/32" x 21-13/32" (18" base, 15" min.)
2103646A
Double 35 qt cans, 17-5/8" x 19-13/16" x 21-13/32" (21" base, 18" min.)
2103647A
Double 50 qt cans, 17-5/8" x 24-7/32" x 21-13/32" (21" base, 18" min.)

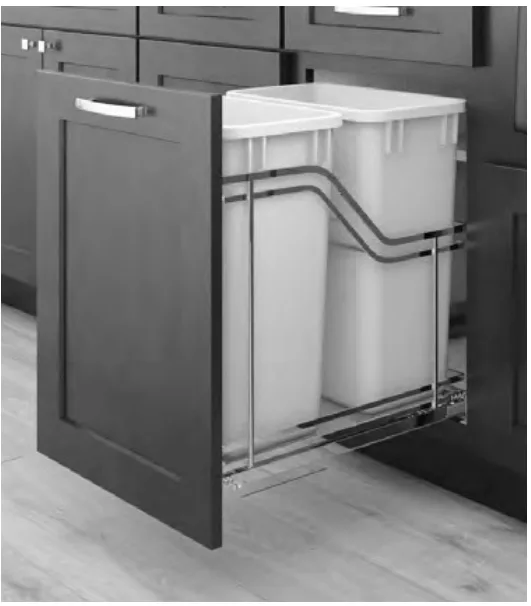

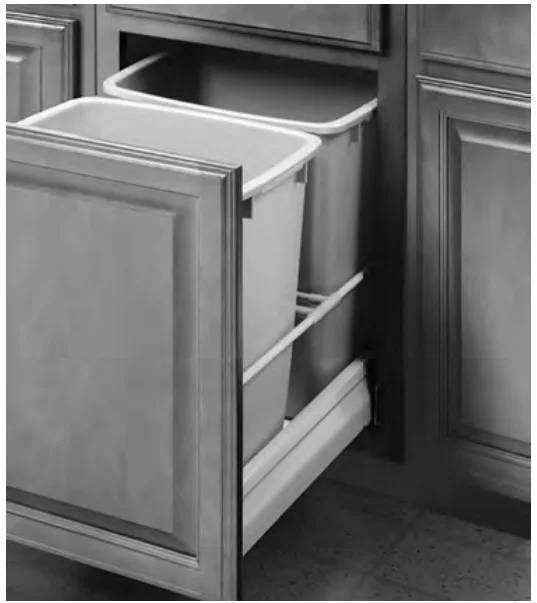

Pull-Out Bottom Mount Trash Cans
Ships fully assembled, ready to install. Single and double can units.
Double wall heavy duty steel frame with edgebanded melamine bottom and back; platinum colored base with grey 36 quart cans.
Full extension soft close undermount glides, 110 lb. capacity.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
503.15.821
Single can, 12" x 19-1/4" x 21-13/16" (15" base, 12" min. opening)
503.15.822
Double, 14-3/4" x 19-1/4" x 21-13/16" (18" base, 14-3/4" min.)

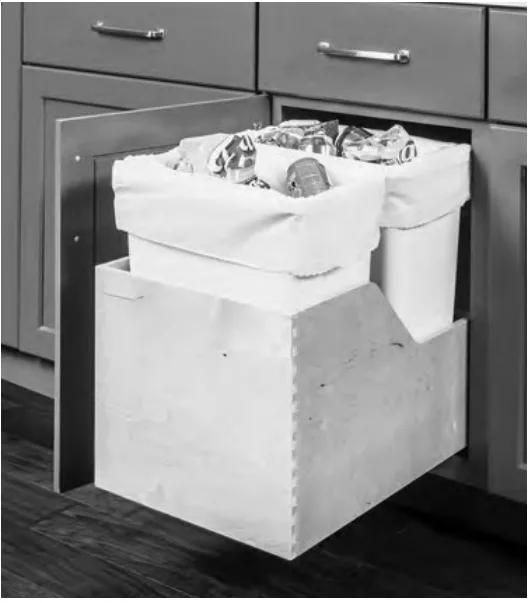

Ready to Install Hinged Door Floor Mounted Trash Can Pull-Outs
Ships fully assembled with drawer hardware and floor mounting cleats for quick installation.
Full extension soft close undermount glides, 110 lb. capacity.
Includes white 35 or 50 quart trash cans.
Units with 35 quart cans can go in base cabinets with a working top drawer; units with 50 quart cans need full height door base cabinets.
White Birch TSCA compliant plywood with a durable UV topcoat.
Installs inside hinged door framed or full access cabinets.
Part numbers
2103648A
Single 35 qt can, 11" x 19-1/2" x 21-3/8" (15" base, 12" min. opening)
2103649A
Single 50 qt can, 11" x 23-3/4" x 21-3/8" (15" base, 12" min.)
2103650A
Double 35 qt cans, 14" x 19-1/2" x 21-3/8" (18" base, 15" min.)
2103651A
Double 50 qt cans, 14" x 23-3/4" x 21-3/8" (18" base, 15" min.)
2103652A
Double 35 qt cans, 17" x 19-1/2" x 21-3/8" (21" base, 18" min.)
2103653A
Double 50 qt cans, 17" x 23-3/4" x 21-3/8" (21" base, 18" min.)
Ready to Install Metal Base Trash Can Pull-Outs
Ships fully assembled with an integrated bottom mount assembly for quick installation.
Full extension soft close undermount glides.
Polished chrome flat wire, welded construction.
Removable grey acrylic liner holds the cans in place and keeps trash off the cabinet bottom.
Includes grey 35 or 50 quart trash cans.
Units with 35 quart cans can go in base cabinets with a working top drawer; units with 50 quart cans need full height door base cabinets.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2103643A
Single 35 qt can, 12" x 19-13/16" x 21-13/16" (15" base, 12" min. opening)
2103644A
Double 35 qt cans, 15" x 19-13/16" x 21-13/16" (18" base, 15" min.)
2103645A
Double 50 qt cans, 15" x 23-3/4" x 21-13/16" (18" base, 15" min.)

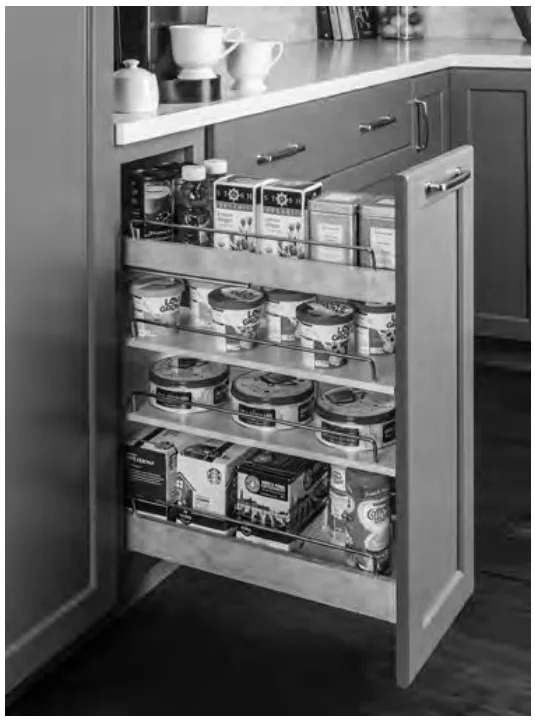

Ready to Install Base Pull-Outs
Ships fully assembled with working hardware and floor mounting cleats for easy installation.
For full height door base cabinets only.
Full extension soft close undermount glides.
Fits framed or frameless, overlay or inset cabinets.
Top mount support bracket stops side-to-side movement and sagging even when fully open. 225 lb. capacity.
White Birch TSCA compliant plywood with a durable UV topcoat.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Part numbers
2100832A
5-1/2" x 24" x 22" (9" base, 5-1/2" min. opening)
2100833A
8-1/2" x 24" x 22" (12" base, 8-1/2" min.)
2100834A
11-1/2" x 24" x 22" (15" base, 11-1/2" min.)
2100835A
14-1/2" x 24" x 22" (18" base, 14-1/2" min.)

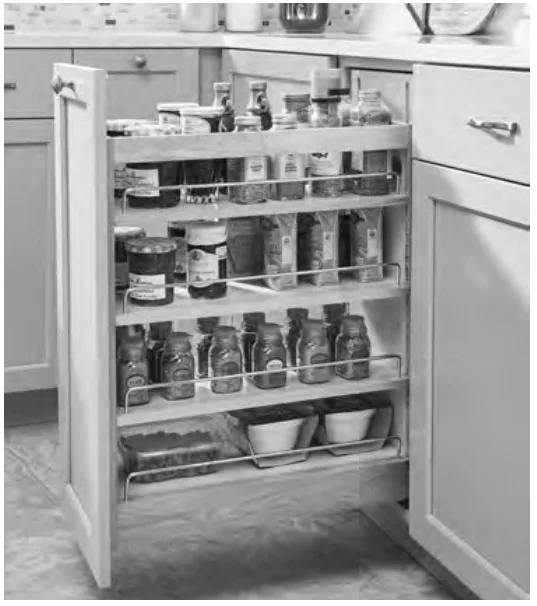

Base Organizer Pull-Outs with Soft Close
Ships fully assembled and ready to install.
For full height door base cabinets only.
Two fixed and two adjustable shelves with polished chrome side rails.
Maple TSCA compliant plywood with a durable polyurethane topcoat.
Soft close full extension BLUMOTION undermount glides, 135 lb. capacity.
Adjustable door mounting brackets for easy installation with any overlay. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2100987A
6" x 25-1/2" x 21-5/8" (9" base, 6" min. opening)
2100988A
8-3/4" x 25-1/2" x 21-5/8" (12" base, 8-1/2" min.)
2100989A
11-3/4" x 25-1/2" x 21-5/8" (15" base, 11-1/2" min.)
2100990A
14-3/4" x 25-1/2" x 21-5/8" (18" base, 14-1/2" min.)

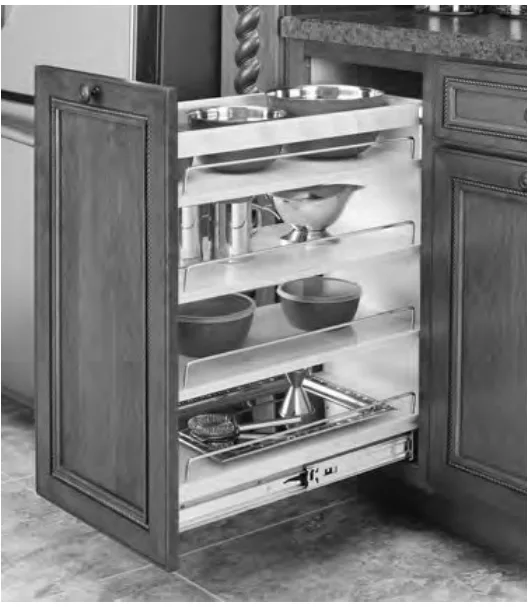

Base Organizer Pull-Outs
Ships fully assembled and ready to install.
For full height door cabinets only.
Heavy duty top slide stops side-to-side movement and sagging even when fully open.
Soft close full extension undermount glides, 100 lb. capacity.
Two fixed and two adjustable shelves with polished chrome side rails.
Maple TSCA compliant plywood with a durable polyurethane topcoat.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2100771A
5" x 25-1/2" x 22-1/2" (12" base, 5-1/2" min. opening)
2100772A
8" x 25-1/2" x 22-1/2" (12" base, 8-1/2" min.)
2100773A
11" x 25-1/2" x 22-1/2" (15" base, 11-1/2" min.)

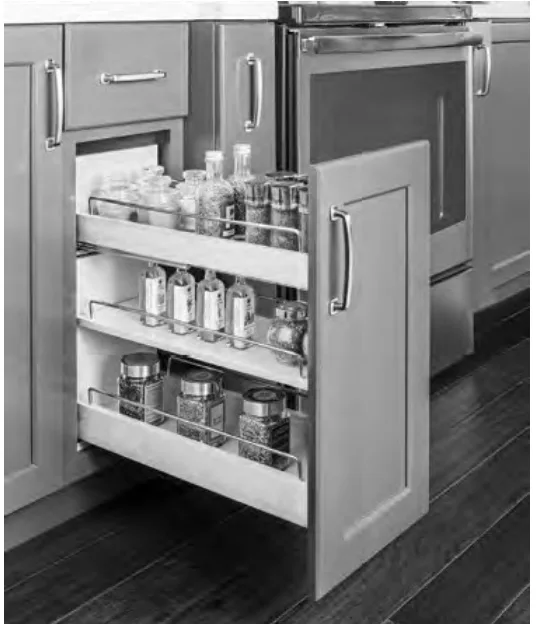

Under Drawer Base Pull-Out
Ships fully assembled with drawer hardware and floor mounting cleats.
For base cabinets with a working top drawer.
Heavy duty top slide stops side-to-side movement and sagging even when fully open.
Soft close full extension undermount glides, 100 lb. capacity.
Two fixed and one adjustable shelf with polished chrome side rails.
White Birch TSCA compliant plywood with a durable UV topcoat.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2103589A
5-7/16" x 20" x 22" (9" base, 5-1/2" min. opening)
2103590A
8-7/16" x 20" x 22" (12" base, 8-1/2" min.)

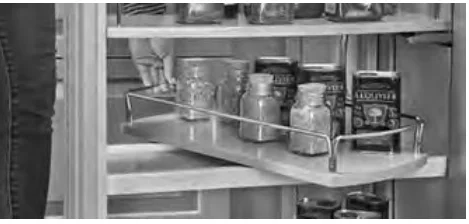

Base Organizer Swivel Pull-Outs
Ships fully assembled and ready to install.
Two independently swiveling shelves give full access to the contents; a self-centering system lines the shelves up for easy closing. Polished chrome side rails keep items in place.
Soft close full extension BLUMOTION undermount glides, 135 lb. capacity.
Maple TSCA compliant plywood with a durable clear polyurethane finish.
Adjustable door mounting brackets for easy installation with any overlay. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2101001A
5-3/4" x 25-5/8" x 22-25/32" (9" base, 5-3/4" min. opening)
2101002A
8-3/4" x 25-5/8" x 22-25/32" (12" base, 8-3/4" min.)

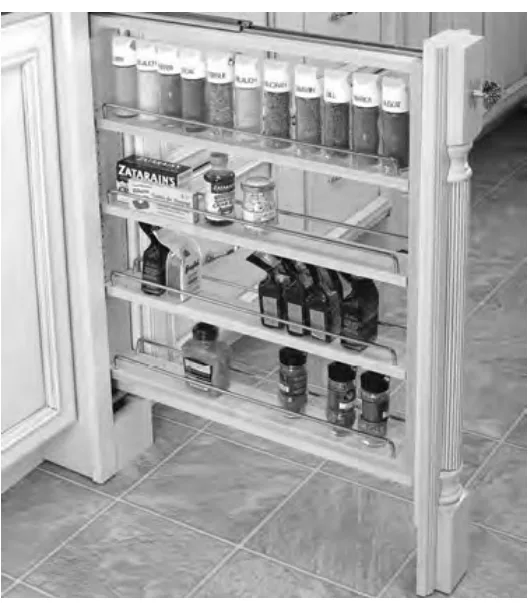

Base Filler Pull-Outs
Ships fully assembled. Mounts between adjacent base cabinets (does not fit inside existing cabinets). An overlay filler is required on the face, not included.
One fixed and three adjustable shelves with polished chrome side rails.
Full extension ball bearing top and bottom mount glides for stable operation.
Maple TSCA compliant plywood with a durable clear polyurethane topcoat.
Fits between framed or full access base cabinets. 3", 6" and 9" wide x 30" high x 23" deep, 4 shelves.
Part numbers
2100750A
3" x 30" x 23"
2100751A
6" x 30" x 23"
2100979A
9" x 30" x 23"

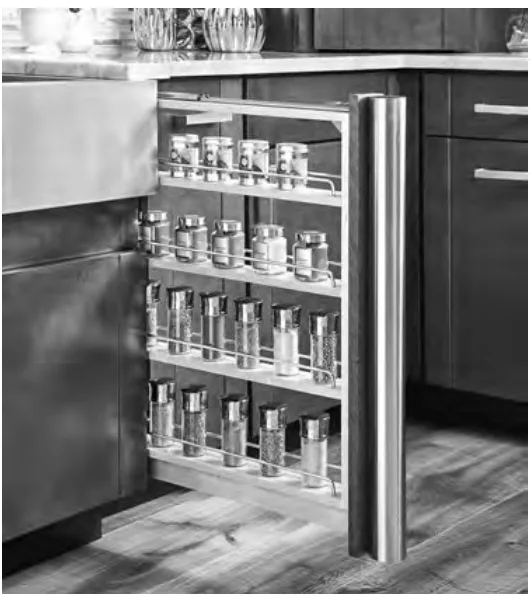

Base Filler Pull-Outs with Soft Close
Ships fully assembled. Mounts between adjacent base cabinets (does not fit inside existing cabinets). An overlay filler is required on the face, not included.
One fixed and three adjustable shelves with polished chrome side rails.
Soft close full extension undermount glides, 75 lb. capacity.
Maple TSCA compliant plywood with a durable polyurethane topcoat.
Fits between framed or full access base cabinets. 3", 6" and 9" wide x 30" x 23", 4 shelves.
Part numbers
2100980A
3" x 30" x 23"
2100981A
6" x 30" x 23"
2100982A
9" x 30" x 23"

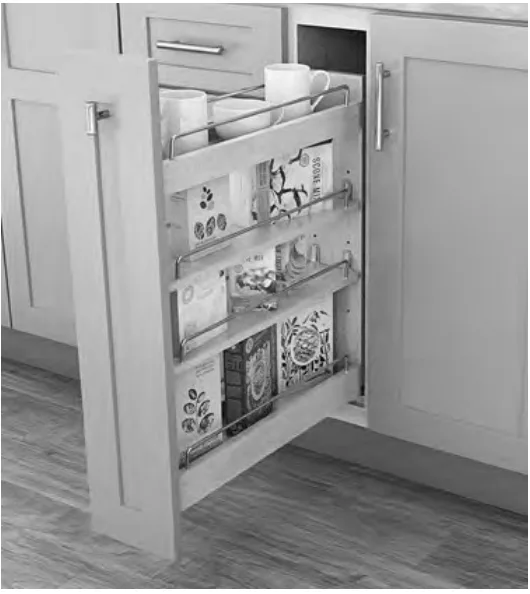

Ready to Install Base Filler Pull-Outs
Ships as a fully assembled cabinet. Mounts between adjacent base cabinets (does not fit inside existing cabinets). An overlay filler is required on the face, not included.
Top mounting bracket stops side-to-side movement and sagging even when fully open.
Soft close full extension undermount glides, 100 lb. capacity.
Two fixed and two adjustable shelves with polished chrome side rails.
White Birch TSCA compliant plywood with a durable UV topcoat.
Integrated 6-way adjustable door mounting hardware.
Mounts between framed or full access cabinets.
Part numbers
2103641A
3-1/2" x 30" x 23", 4 shelves
2103642A
6-1/2" x 30" x 23", 4 shelves

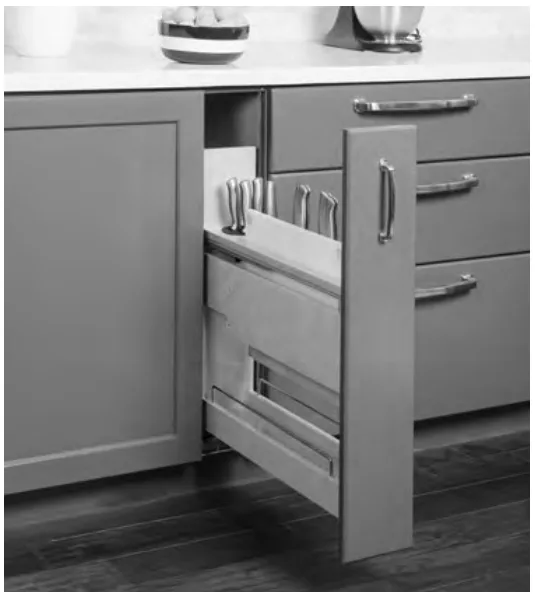

Ready to Install Magnetic Knife Organizer Pull-Outs
Ships fully assembled with drawer hardware and floor mounting cleats.
Top mounting bracket stops side-to-side movement and sagging even when fully open.
Soft close full extension undermount glides, 100 lb. capacity.
Double sided magnetic bar protects blades and holds cutlery up to 15" long; extra storage for shorter knives at the back.
Comes with a dishwasher safe plastic cutting board.
White Birch TSCA compliant plywood with a durable UV topcoat.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Installs in framed or full access cabinets.
Part numbers
2103638A
5" x 24" x 22" (9" base, 5-1/2" min. opening)
2103639A
8" x 24" x 22" (12" base, 8-1/2" min.)

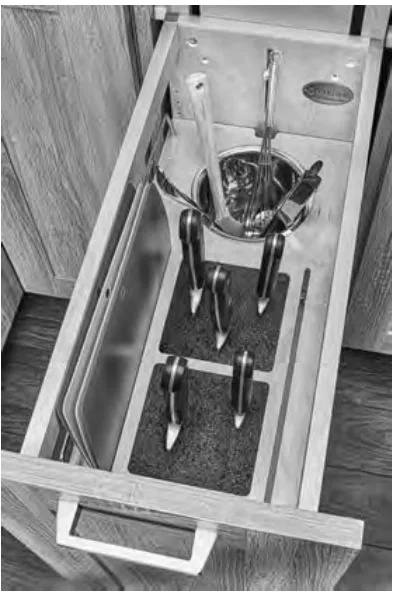

Base Knife Block and Utensil Storage Pull-Outs
Ships fully assembled and ready to install.
Full extension BLUMOTION soft close undermount glides, 135 lb. capacity.
Flex rod knife storage: knives go in any direction, even diagonally.
Removable stainless steel utensil receptacles for easy cleaning.
Includes 4 multi-colored dishwasher safe cutting mats.
Maple TSCA compliant plywood with a durable polyurethane finish.
Adjustable door mounting brackets for easy installation with any overlay. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2100991A
6" x 25-1/2" x 21-5/8" (9" base, 5-1/2" min. opening)
2100992A
7-1/8" x 25-1/2" x 21-5/8" (12" base, 7-1/2" min.)
2100993A
8-3/4" x 25-1/2" x 21-5/8" (12" base, 8-3/4" min.)
2100994A
10-1/8" x 25-1/2" x 21-5/8" (15" base, 10-1/2" min.)
2100995A
11-3/4" x 25-1/2" x 21-5/8" (15" base, 11-1/2" min.)

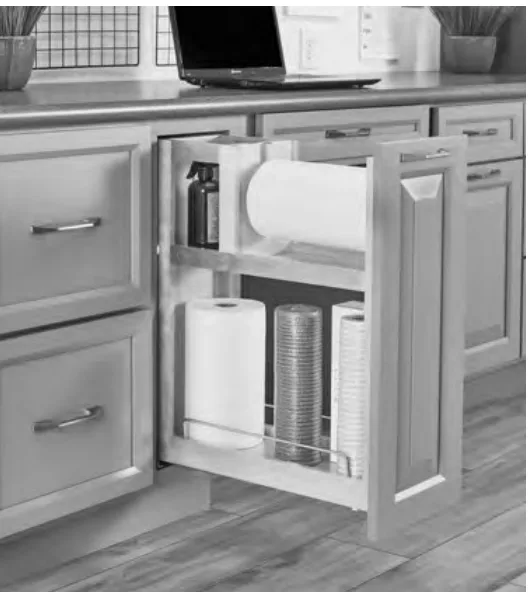

Base Paper Towel Holder Organizer Pull-Outs
Ships assembled and ready to install.
Full extension soft close BLUMOTION glides, 110 lb. capacity.
Adjustable rub bushings reduce side-to-side movement even when fully open.
Maple TSCA compliant plywood with a durable polyurethane finish.
Adjustable door mounting brackets for easy installation with any overlay. Door not included.
Floor mounted; installs in framed or full access full height door cabinets.
Part numbers
2100999A
6-7/8" x 26-29/32" x 21-23/32" (12" base, 6-7/8" min. opening)
2101000A
8-3/4" x 26-29/32" x 21-23/32" (12" base, 8-3/4" min.)

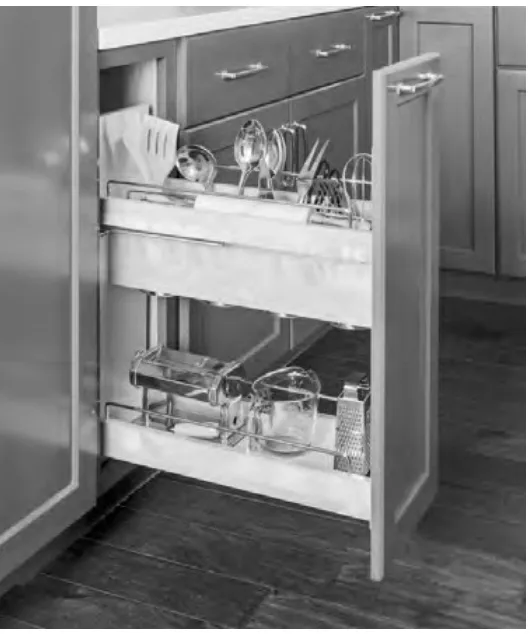

Ready to Install Utensil Base Pull-Out
Ships fully assembled with drawer hardware and floor mounting cleats.
Top mounting bracket stops side-to-side movement and sagging even when fully open.
Full extension soft close undermount glides, 100 lb. capacity.
Four removable stainless steel utensil bins and one fixed shelf.
White Birch TSCA compliant plywood with a durable UV topcoat.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Floor mounted; installs in framed or full access, full height door cabinets.
Part numbers
2103640A
5-1/2" x 24" x 22" (9" base, 5-1/2" min. opening)
2103588A
8-1/2" x 24-1/8" x 22" (12" base, 8-1/2" min.)

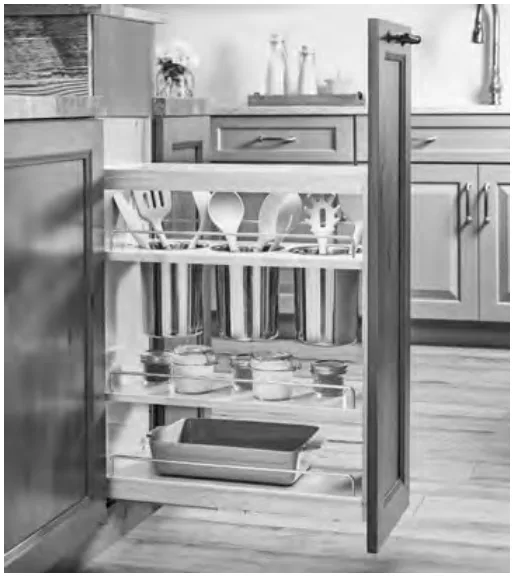

Base Utensil Pull-Outs
Ships fully assembled and ready to install.
Soft close full extension BLUMOTION undermount glides, 135 lb. capacity.
Removable stainless steel utensil bins: 3 bins in the 6" and 8-3/4" units, 6 bins in the 11-3/4" unit. All units also have two shelves.
Maple TSCA compliant plywood with a durable clear polyurethane finish.
Adjustable door mounting brackets for easy installation with any overlay. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2100996A
6" x 25-1/2" x 21-5/8" (9" base, 6" min. opening)
2100997A
8-3/4" x 25-1/2" x 21-5/8" (12" base, 8-1/2" min.)
2100998A
11-3/4" x 25-1/2" x 21-5/8" (15" base, 11-1/2" min.)

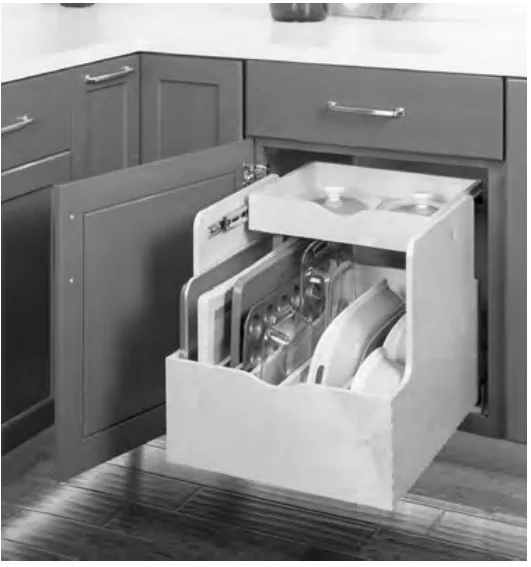

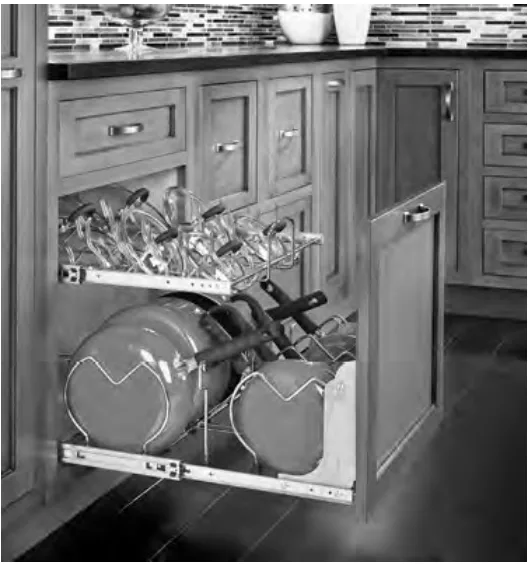

Two-Tier Cookware Organizer Base Pull-Outs
Ships fully assembled with drawer hardware and floor mounting cleats.
Bottom, side and rear mounting for complete stability.
Fits base cabinets with a working top drawer or a full height door.
Soft close full extension ball bearing glides, 100 lb. capacity.
Heavy duty polished chrome wire racks work independently for full access to pans and lids.
Optional adjustable door mounting kit (part 2105409A) for any overlay and framing width. Door not included.
Installs in framed or full access cabinets.
Part numbers
2100767A
11-3/4" x 18" x 22" (15" base, 11-3/4" min. opening)
2100768A
20-3/4" x 18-1/8" x 22" (24" base, 20-3/4" min.)
2105409A
Door mounting kit, 1-1/2" x 8" x 2-1/8" (all)

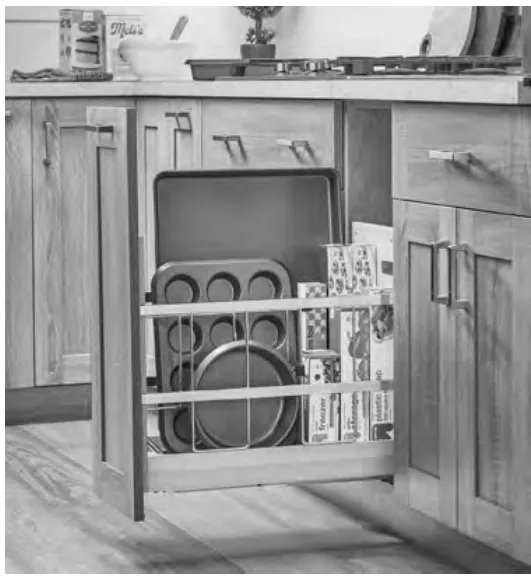

Base Pull-Out Units with Tray Divider & Foil Wrap Holder
Ships fully assembled and ready to install.
Soft close BLUMOTION full extension undermount glides, 135 lb. capacity.
Two dividers with polished chrome side rails.
Maple TSCA compliant plywood with a durable polyurethane topcoat.
Adjustable door mounting brackets for easy installation with any overlay. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2100983A
5-15/16" x 19-1/2" x 21-21/32" (9" base, 6" min. opening)
2100984A
7-1/8" x 19-1/2" x 21-21/32" (12" base, 7-1/2" min.)
2100985A
8-23/32" x 19-1/2" x 21-21/32" (12" base, 8-3/4" min.)
2100986A
10-1/8" x 19-1/2" x 21-21/32" (15" base, 10-1/2" min.)

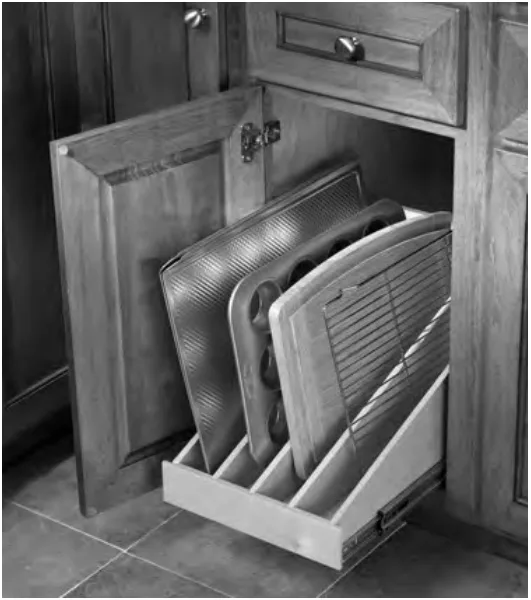

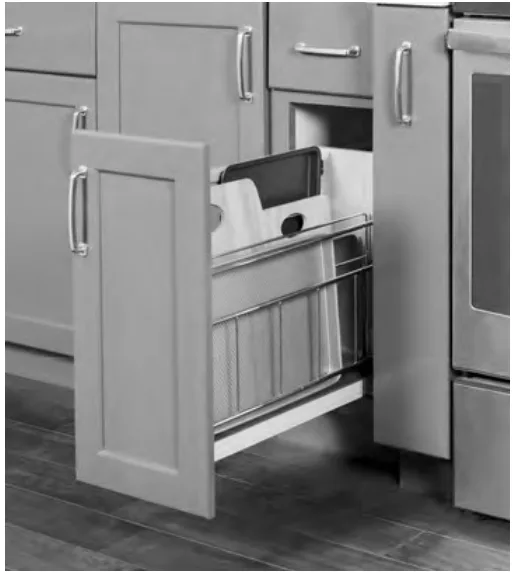

Ready to Install Tray Divider Pull-Outs
Ships fully assembled with drawer hardware and floor mounting cleats.
Stores and organizes bakeware, serving trays and more.
Removable center rack and adjustable dividers. Non-slip mat on the bottom keeps items from moving and reduces noise.
Installation hardware stops sagging and side-to-side movement even when fully open.
Works under a working top drawer or in full height door cabinets.
Soft close full extension undermount glides, 100 lb. capacity.
White Birch TSCA compliant plywood with a durable UV topcoat.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2103663A
5" x 17-9/16" x 22-1/4" (9" base, 5-1/2" min. opening)
2103664A
8" x 17-9/16" x 22-1/4" (12" base, 8-1/2" min.)
Base Tray Roll-Outs
Ships fully assembled with drawer hardware and floor mounting cleats.
A special lower hinge location is needed to clear the 3-1/2" high front of the unit. Does not work with concealed inset hinges.
Side mount full extension KV glides.
5" unit has 1 tray divider, 8" unit has 2, 11" unit has 3.
Maple TSCA compliant plywood with a durable UV topcoat.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2100791A
5" x 10" x 21-3/4" (9" base, 6" min. opening)
2100792A
8" x 10" x 21-3/4" (12" base, 9" min.)
2100793A
11" x 10" x 21-3/4" (15" base, 12" min.)

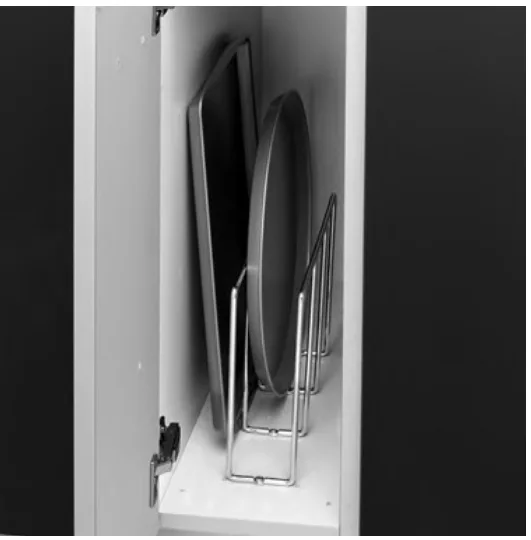

U-Shaped Tray Dividers
Ships fully assembled and ready to install.
Wire unit with polished chrome finish.
Sold individually; each divider gives 3" of storage space. Several can be mounted side by side in wider cabinets.
Floor or shelf mounted, in base framed and full access cabinets.
Part numbers
2100765A
3" x 10" x 11-7/8" (9" base, 3-1/4" min. opening)

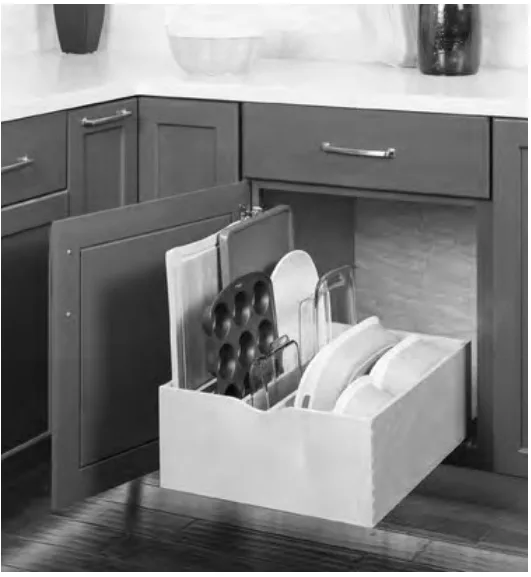

Single Drawer Cookware Roll-Outs
Ships fully assembled with floor mounting hardware and drawer glides.
Soft close full extension undermount glides, 100 lb. capacity.
For cutting boards, cookware, pots and pans, lids and more.
Adjustable dividers can be moved to fit what you store.
White Birch TSCA compliant plywood with dovetail construction and a durable UV topcoat.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2103654A
13-9/16" x 9-1/16" x 22-3/8" (18" base, 15" min. opening)
2103655A
19-1/8" x 9-1/16" x 22-3/8" (24" base, 21" min.)
2103656A
25-1/8" x 9-1/16" x 22-3/8" (30" base, 27" min.)
Double Drawer Cookware Storage Roll-Outs
Ships fully assembled with drawer hardware and floor mounting cleats.
A top drawer works independently from the bottom drawer for the best use of space and access.
Soft close full extension undermount glides, 100 lb. capacity.
For cutting boards, cookware, pots and pans, lids and more.
Adjustable dividers can be moved to fit what you store.
White Birch TSCA compliant plywood with dovetail construction and a durable UV topcoat.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2103657A
13-9/16" x 19-1/16" x 22-3/8" (18" base, 15" min. opening)
2103658A
19-1/8" x 19-1/16" x 22-3/8" (24" base, 21" min.)
2103659A
25-1/8" x 19-1/16" x 22-3/8" (30" base, 27" min.)

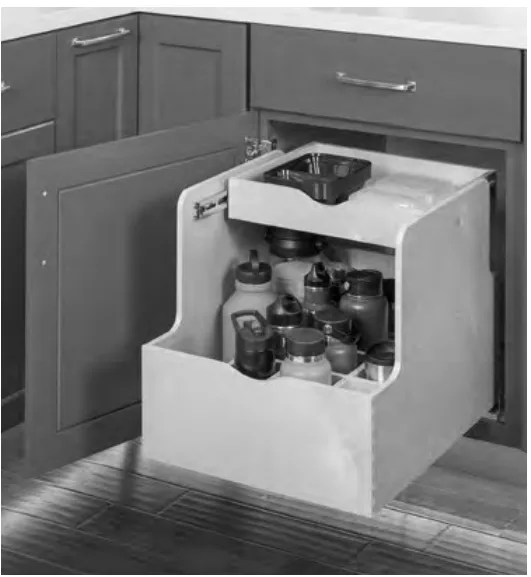

Double Drawer Bottle Storage Roll-Outs
Ships fully assembled with drawer hardware and floor mounting cleats.
Soft close full extension undermount glides, 100 lb. capacity.
A top drawer works independently from the bottom drawer.
For water bottles, wine bottles and more.
All units have a 15 opening grid for bottles up to 4" in diameter; the 21" and 27" units add vertical dividers for larger bottles. On those, the grid can go on the left or right.
White Birch TSCA compliant plywood with dovetail construction and a durable UV topcoat.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2103660A
13-9/16" x 19-1/16" x 22-3/8" (18" base, 15" min. opening)
2103661A
19-1/8" x 19-1/16" x 22-3/8" (24" base, 21" min.)
2103662A
25-1/8" x 19-1/16" x 22-3/8" (30" base, 27" min.)

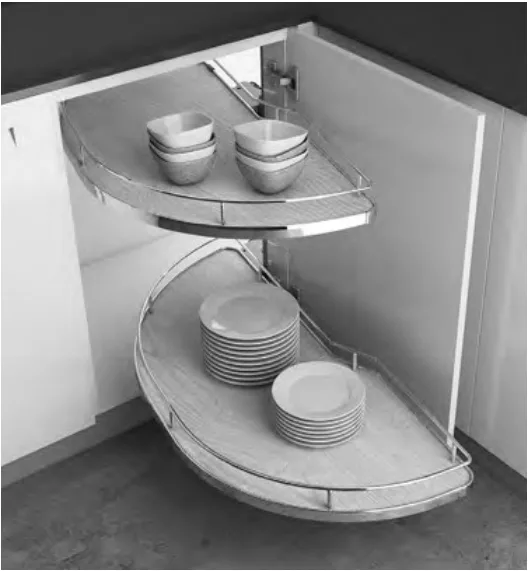

Girasolo Blind Corner Optimizer
Makes full use of the storage in blind base corner cabinets: the swing-out shelves work in openings as narrow as 12".
A single pivot post installs quickly with just 8 screws. The pull-out motion limits interference with adjacent cabinets.
Soft open and close for smooth, quiet operation.
Two Maple patterned TSCA compliant swing-out shelves with metal side rails, height adjustable, 44 lb. capacity each.
Installs in framed or full access cabinets.
Part numbers
2100528A
Left door, 33-1/2" x 30-11/16" x 14" (min. opening 12" framed, 13-1/2" full access)
2100529A
Right door, 33-1/2" x 30-11/16" x 14" (12" / 13-1/2")
2100530A
Left door, 36-1/4" x 30-11/16" x 16" (15" / 16-1/2")
2100531A
Right door, 36-1/4" x 30-11/16" x 16" (15" / 16-1/2")
2100532A
Left door, 38-1/4" x 30-11/16" x 18" (18" / 19-1/2")
2100533A
Right door, 38-1/4" x 30-11/16" x 18" (18" / 19-1/2")

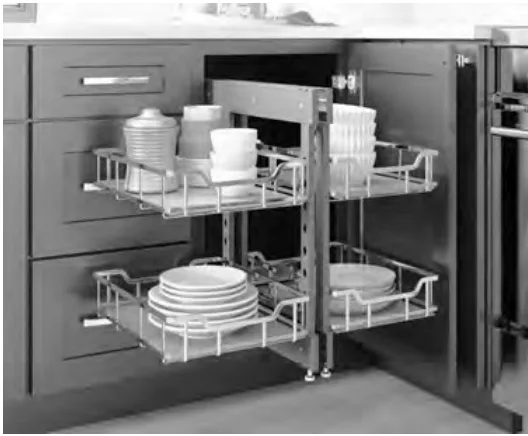

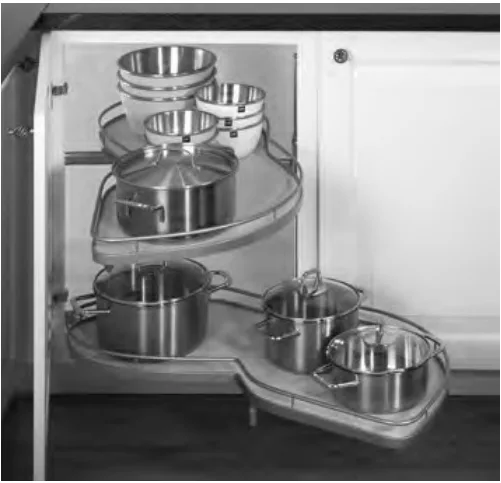

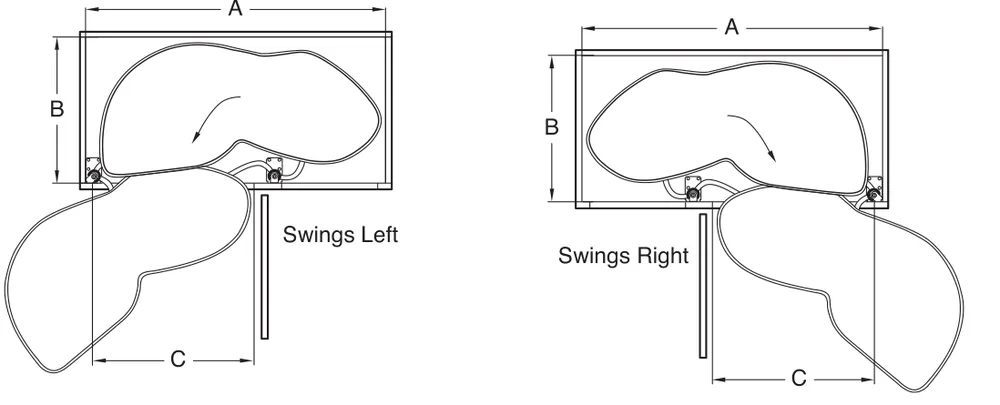

LeMans II Corner Swing-Out Shelves
For blind corner base cabinets with a working top drawer or a full height door.
Two Maple patterned non-slip swing-out shelves with platinum colored metal side rails and posts.
Shelves adjust in height in 2" increments; 55 lb. capacity per shelf.
Can be retrofitted into existing blind corner cabinets.
Includes drawer hardware and floor mounting cleats; minor pre-installation assembly is required.
Full access pull-out reaches the hard-to-reach areas of blind base corner cabinets. Works for left or right hand installs.
20-9/16" high units go under a working top drawer; 24-1/16" high units need a full height door cabinet.
Heavy duty polished chrome welded flat wire with solid shelf bottoms. Includes four baskets; extra baskets sold separately.
Soft close full extension ball bearing glides, 130 lb. capacity.
Integrated 6-way adjustable door mounting hardware for easy installation with any overlay and framing width. Door not included.
Floor mounted; installs in framed or full access cabinets.
Part numbers
2103669A
26-13/16" x 20-9/16" x 22-1/8" (blind base, 14-1/2" min. opening)
2103670A
26-13/16" x 24-1/16" x 22-1/8" (15" min.)
2103671A
2 extra baskets, 12-3/16" x 3-9/16" x 15-9/16"
2103672A
32-7/8" x 20-9/16" x 22-1/8" (17-1/2" min.)
2103673A
32-7/8" x 24-1/16" x 22-1/8" (18" min.)
2103674A
2 extra baskets, 15-3/16" x 3-9/16" x 15-9/16"

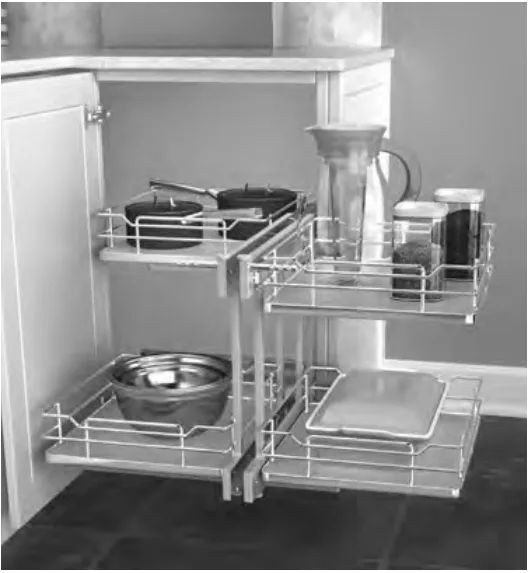

Solid Bottom Blind Corner Optimizer Pull-Outs
Includes floor mounting hardware; minor pre-installation assembly is required.
When the shelves are fully out, the top shelf can be pushed back into the cabinet for full access to the bottom shelf.
Works for left or right hand installs, under a working top drawer or in a full height door blind base corner cabinet.
Silver steel frame and polished chrome wire surround with a non-slip Maple patterned TSCA compliant bottom.
Soft close heavy duty ball bearing glides.
Installs in framed or full access blind cabinets.
Part numbers
2101003A
26-13/16" x 23-1/2" x 20-13/32" (blind base, 15" min. opening)
2101004A
32-1/4" x 23-1/2" x 20-13/32" (18" min.)

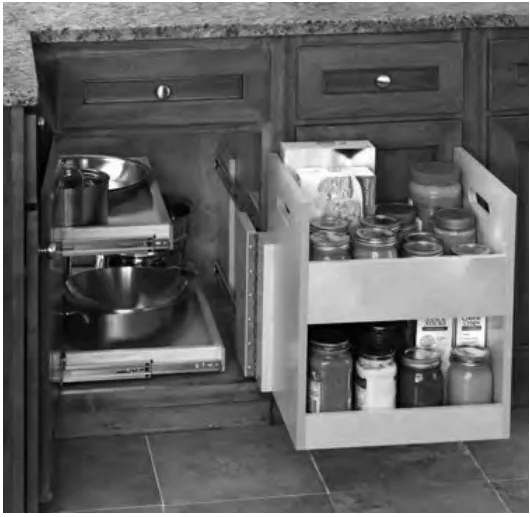

Blind Corner Base Pull-Out System
Includes floor mounting hardware; minor pre-installation assembly is required.
The unit pulls out of the cabinet opening and swings to the side, so the second set of shelves can slide forward for full access.
For blind base corner cabinets with a working top drawer or a full height door. Reversible piano hinge for left or right installs.
Maple TSCA compliant 1/2" plywood with a clear, durable topcoat.
Installs in framed or full access cabinets.
Part numbers
2100790A
34-3/4" x 19-9/16" x 22-7/16" (blind base, 15" min. opening)

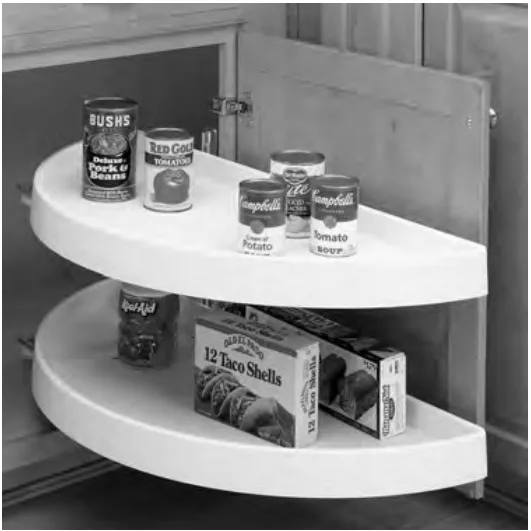

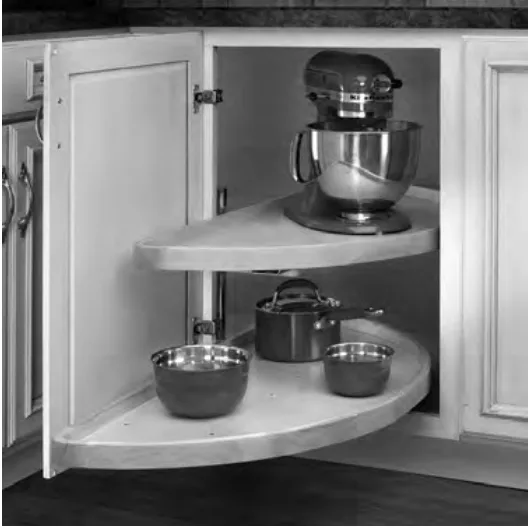

Half Moon Lazy Susan Shelf System
Fits blind base cabinets for easier access to items in recessed areas.
Each half moon shelf works on its own: it swings out of the cabinet, then slides forward to reach the full shelf depth.
Wood kits: Maple TSCA compliant plywood with a clear polyurethane finish; two shelves with supports, a 17" chrome plated shaft with aluminum bearings, two positioning bases, two pairs of ball bearing slides and an installation template.
Plastic kits: white polypropylene; two shelves with supports, a 15-7/8" polished chrome plated shaft, two positioning bases, two pairs of ball bearing slides and a template.
Universal: swings left or right. Installs in framed or full access cabinets.
Part numbers
2103591A
Wood, 32-1/4" x 16" x 14-5/32" (blind base, 12" min. opening)
2103592A
Wood, 35" x 16" x 17-5/32" (15" min.)
2103593A
Wood, 37-3/4" x 16" x 20-3/16" (18" min.)
2103594A
Polymer, 31-7/16" x 15-15/16" x 15-1/4" (13-1/4" min.)
2103595A
Polymer, 33" x 15-15/16" x 18-11/32" (16-1/8" min.)
2103596A
Polymer, 39-11/32" x 15-15/16" x 21-5/8" (19-1/4" min.)

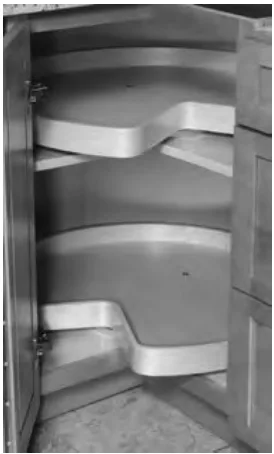

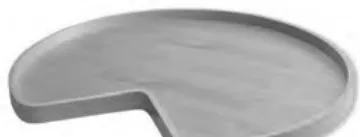

Wood Rim Lazy Susan Shelves
Ready to install in corner cabinets on fixed or adjustable shelves, or on the cabinet floor.
Each shelf includes a pre-mounted center ring bearing.
1/2" Maple TSCA compliant plywood bottom with a 1-1/2" high wood laminated rim and a durable clear finish. No finger joints.
Sold individually. Installs in framed or full access wall and base corner cabinets.
Part numbers
2100053A
18" full round, 18" x 1-1/2" x 18"
2100051A
32" full round, 32" x 1-1/2" x 32"
2100052A
28" kidney, 28" x 1-1/2" x 28"
2100050A
32" kidney, 32" x 1-1/2" x 32"

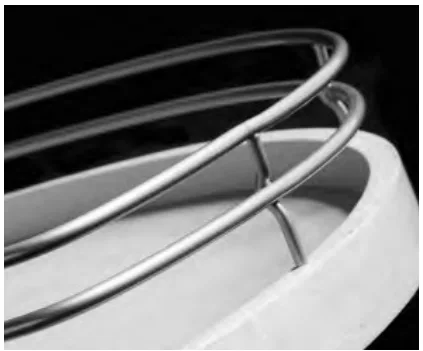

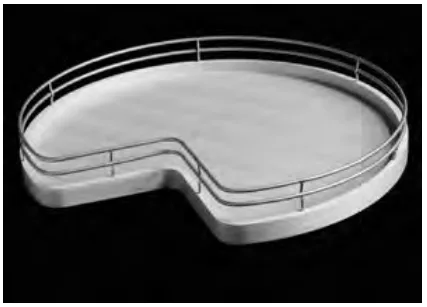

Wire Rim Wood Lazy Susan Shelves
Ready to install in corner cabinets on fixed or adjustable shelves, or on the cabinet floor.
Each shelf includes a pre-mounted center ring bearing.
1/2" Maple TSCA compliant plywood bottom with a 1-1/2" high laminated wood rim and clear finish, plus a silver 2" high powder coated wire rim on top.
Sold in pairs only. Installs in framed or full access wall and base corner cabinets.
Part numbers
2100785A
28" full round set, 28" x 3-1/2" x 28"
2100786A
32" full round set, 32" x 3-1/2" x 32"
2100787A
28" kidney set, 28" x 3-1/2" x 28"
2100788A
32" kidney set, 32" x 3-1/2" x 32"

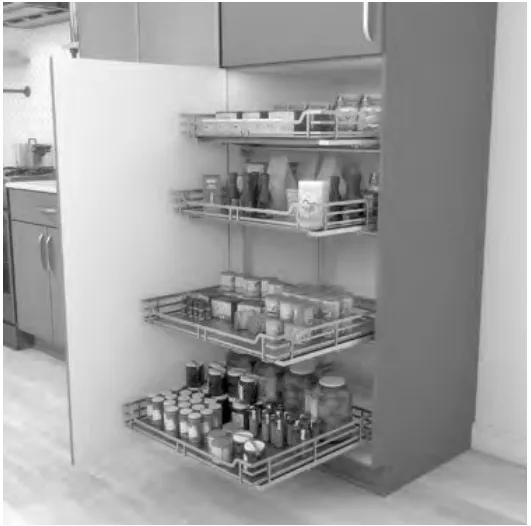

Metal Pull-Out Baskets with Optional Pilasters
Baskets are sold individually and can be floor mounted or installed with the optional pilaster set. Each has a removable grey acrylic liner for a flat, sturdy surface.
The pilaster set (four pilasters on the inside end panels near each corner) is sold separately. One set for several baskets in a base cabinet; two or more stacked sets in a pantry (connectors included).
Heavy duty flat wire baskets and pilasters in polished chrome.
Soft close full extension ball bearing glides, 130 lb. per basket.
Installs in framed or full access cabinets.
Part numbers
2103665A
Pilaster set, 1-1/4" x 21-1/2" x 1/2" (base/pantry)
2103666A
Basket, 14-1/2" x 4-1/4" x 22" (18" base/pantry, 14-1/2" min. opening)
2103667A
Basket, 19-9/16" x 5-7/16" x 22-1/16" (24" base/pantry, 20-1/2" min.)
2103668A
Basket, 25-9/16" x 5-7/16" x 22-1/16" (30" base/pantry, 26-1/2" min.)

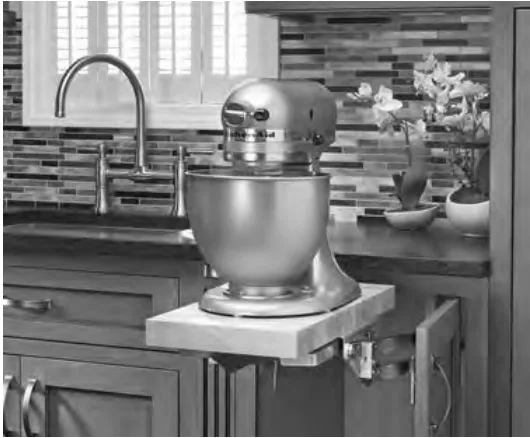

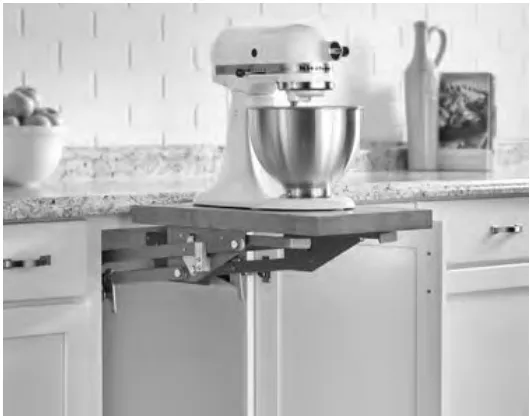

Heavy Duty Mixer Lift
Order as a hardware only kit or as soft close hardware with a shelf.
The soft close unit includes a solid Maple shelf, 11-3/4" x 1-3/8" x 20", with a clear polyurethane finish.
Both kits have built-in shock dampeners and adjustable spring tension, 60 lb. capacity. The hardware only kit has no shelf or soft close.
Silver hardware. Installs in framed or full access cabinets.
Part numbers
2100774A
Hardware only, no shelf (15" to 24" base, 12" min. opening)
2101005A
Soft close hardware with shelf (18" base, 15" min.)

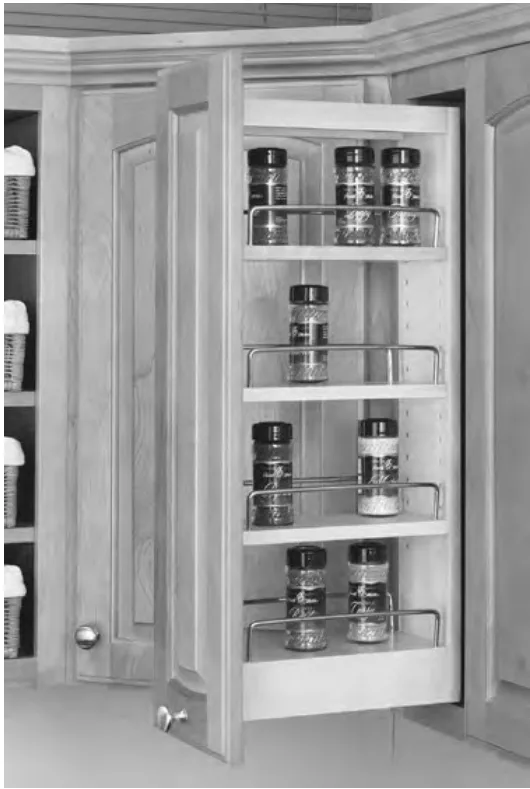

Wall Organizer Pull-Outs
Ships fully assembled and ready to install, with floor mounted full extension undermount glides.
One fixed and three adjustable shelves with chrome side rails.
Maple TSCA compliant plywood with a durable clear polyurethane finish.
Adjustable door mounting brackets for any overlay. Door not included.
Installs in framed or full access wall cabinets.
Part numbers
2100778A
5" x 26-1/4" x 10-3/4" (W930 wall, 5-1/2" min. opening)
2100779A
8" x 26-1/4" x 10-3/4" (W1230 wall, 8-1/2" min.)

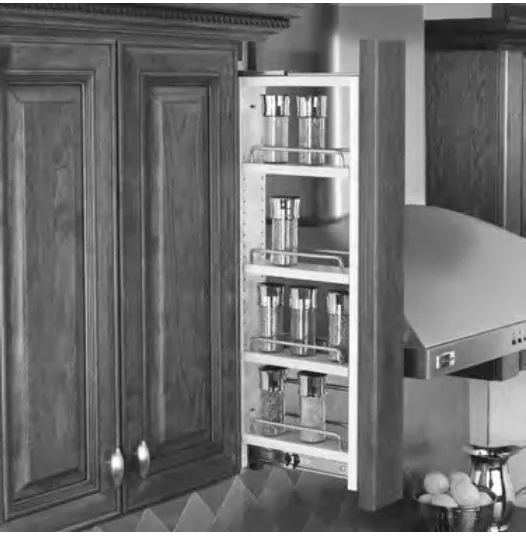

Tiered Wall Filler Pull-Outs
Ships fully assembled, in several heights, to install between adjacent wall cabinets (does not fit inside existing cabinets).
An overlay filler is required on the face, not included.
Adjustable shelves with polished chrome side rails.
Full extension ball bearing top and bottom glides for smooth, stable operation.
Maple TSCA compliant plywood with a durable clear polyurethane topcoat.
Part numbers
2100752A
3" x 30" x 11-1/8", 4 shelves
2100753A
6" x 30" x 11-1/8", 4 shelves
2100754A
3" x 36" x 11-1/8", 5 shelves
2100755A
6" x 36" x 11-1/8", 5 shelves
2100756A
3" x 42" x 11-1/8", 6 shelves
2100757A
6" x 42" x 11-1/8", 6 shelves

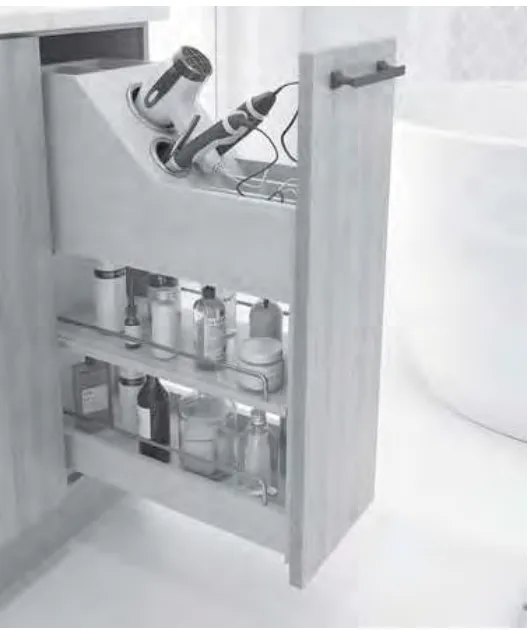

Vanity Base Pull-Out
Ships fully assembled with floor mounting cleats for quick installation.
Heavy duty top slide stops side-to-side movement and sagging even when fully open.
Soft close full extension undermount glides, 100 lb. capacity.
Two fixed and one adjustable shelf.
White Birch TSCA compliant plywood with a durable UV topcoat.
Takes the optional grooming organizer and acrylic tray insert.
Integrated 6-way adjustable door mounting hardware for any overlay and framing width. Door not included.
Floor mounted; fits framed and full access 21" deep vanity cabinets.
Part numbers
2103585A
Vanity base pull-out, 8-13/32" x 19-7/8" x 18-13/16" (12" vanity, 9" min. opening)

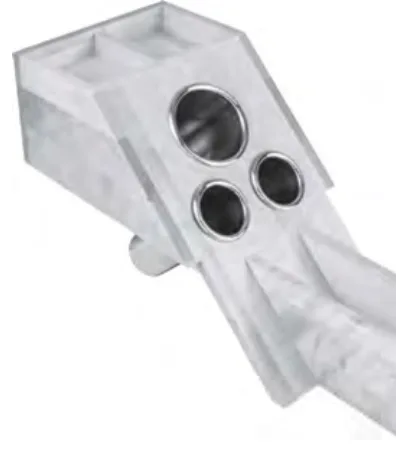

Grooming Organizer
Ships fully assembled; sits on the top shelf of the vanity base pull-out.
One 3" and two 2" stainless canisters with heat shields keep hot styling tools from heating nearby surfaces.
Dividers for appliance cords and two open storage trays on top.
White Birch TSCA compliant plywood with a durable UV topcoat.
Part numbers
2103586A
Grooming organizer, 8" x 5" x 9" (12" vanity)

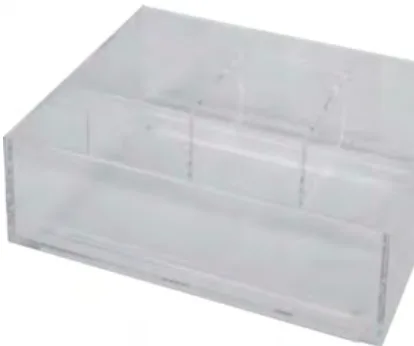

Acrylic Tray Insert
Clear acrylic tray sized for the top of the vanity base pull-out; can be used with the grooming organizer.
Four compartments; lifts out of the pull-out easily.
Part numbers
2103587A
Acrylic tray insert, 8-13/32" x 3-7/16" (12" vanity)

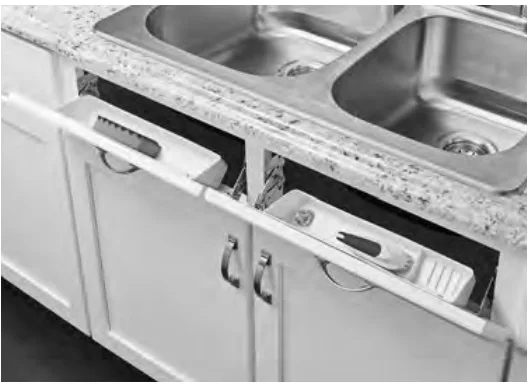

Sink Front Tip Out Tray Kits
Handy storage behind the false drawer front of a sink base.
Each kit has one open tray and one soap dish tray with an integrated ring post, plus two pairs of spring loaded scissor hinges.
Almond or white high impact polystyrene trays.
Mount one behind each narrow front, or two side by side behind a wider front. Check the sink size for enough clearance.
Installs in framed or full access cabinets.
Part numbers
2100769A
Almond, 11" x 3-13/16" x 2-1/8" (sink base 30, 13-1/4" min. opening)
2100770A
Almond, 14" x 3-13/16" x 2-1/8" (sink base 36, 16-1/4" min.)
2100977A
White, 11" x 3-13/16" x 2-1/8" (sink base 30, 13-1/4" min.)
2100978A
White, 14" x 3-13/16" x 2-1/8" (sink base 36, 16-1/4" min.)

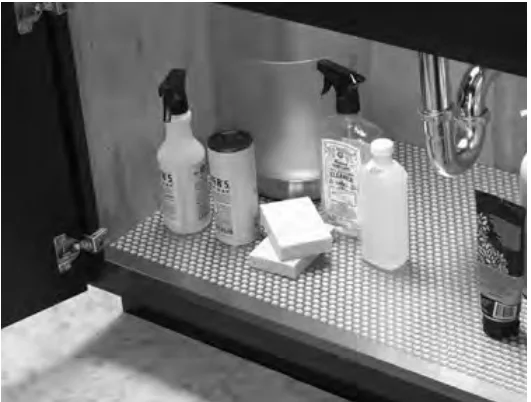

Under-Sink Mat
Goes right into sink base cabinets: trim to size and drop it in place.
Trim on the back with a straight edge and a sharp utility knife, or on a table saw.
Recessed dimples hold up to 1 gallon of liquid per six square feet.
Polystyrene with a grey/stainless finish.
Fits framed and full access sink base and vanity sink base cabinets.
Part numbers
547.91.550
45-1/4" x 24-5/8", trim to fit (sink base)

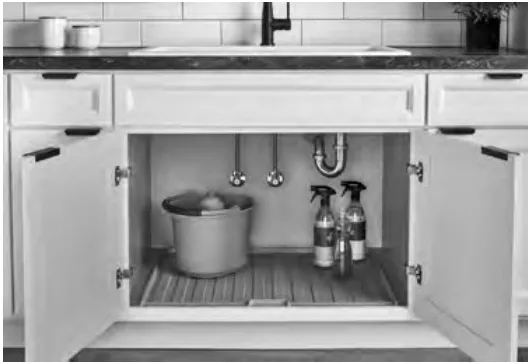

Sink Base Drip Trays
Ready to install out of the package; trim the flexible thermoplastic liner to size if needed and set it in place.
Trims with scissors: up to 3" from the width and 2" from the depth.
Fits framed and full access sink base cabinets.
Part numbers
2101006A
28-1/2" x 23-1/4" (27" & 30" sink base)
2101007A
34-1/2" x 23-1/4" (33" & 36" sink base)
2101008A
40-1/2" x 23-1/4" (39" & 42" sink base)

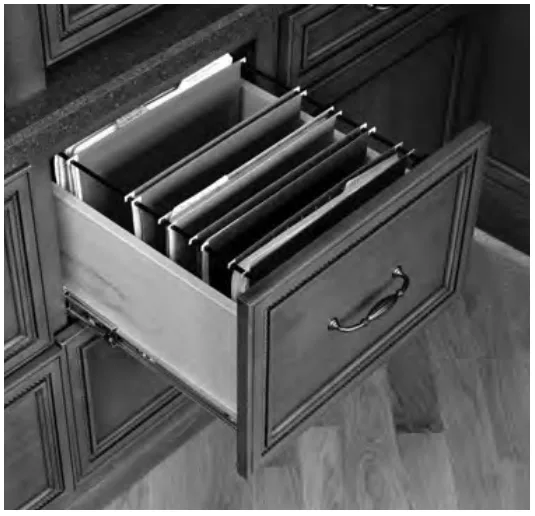

File Drawer Support Systems
Fits inside deep drawers to hold hanging file folders.
Rails can be trimmed to fit custom size cabinets.
The smaller support takes letter size files; the larger one takes legal size.
Wire frame with a black finish.
File folders and drawer front not included.
Part numbers
2100775A
13" x 9-3/4" x 19-1/4" (18" deep drawer)
2100776A
15-7/8" x 9-3/4" x 19-1/4" (21" deep drawer)

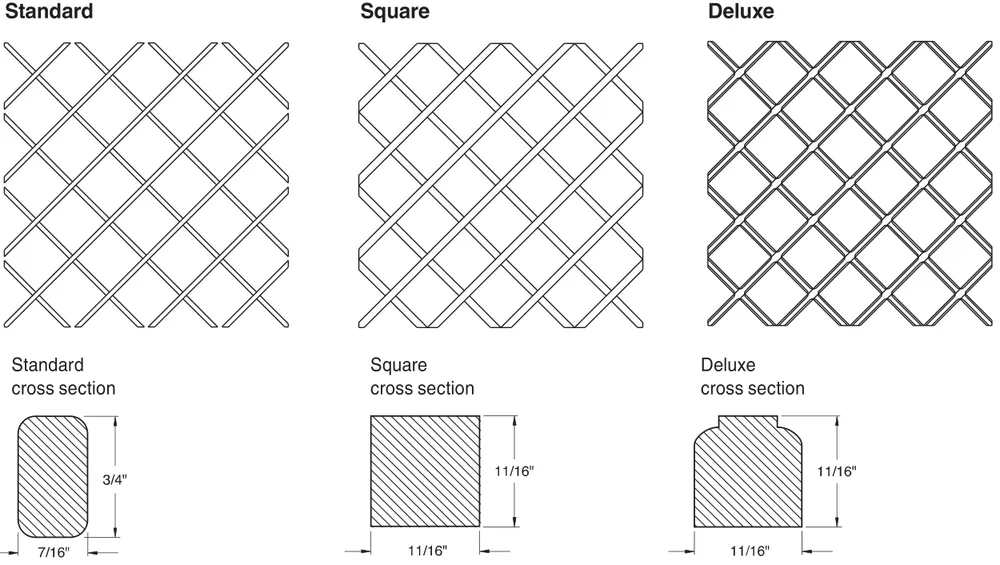

Lattice Wine Racks
Sold individually (order two pieces for a pair).
All lattice designs are available in Cherry and Hard Maple.
Trimmable in length and width; remove equal amounts from the ends or the top and bottom.
Standard rack bottle openings are 4" x 4"; Square and Deluxe openings are 4-1/4" x 4-1/4". Square and Deluxe can be combined into a pair.
Three designs (Standard, Square, Deluxe), each in 17" x 36", 24" x 30" and 24" x 43".
Available unfinished or finished.

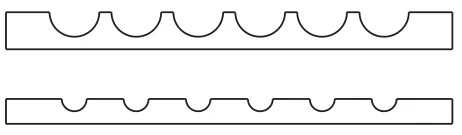

Half Round Wine Racks
Sold in pairs (front and back).
3/4" thick only, 30" or 36" long. Front is 2" high, back is 3" high.
Bottle cut-outs start 3" from the end on the 30" rack and 3-1/2" on the 36" rack.
The 30" rack holds 5 bottles; the 36" rack holds 6 bottles.
Horizontal grain only.
Available unfinished or finished.
No accessory matches your search. Ask a designer, we can help you find the right one.
Sizes and part numbers follow the manufacturer's catalog (Winter 2025) and may change without notice. "Min. opening" is the smallest cabinet opening the unit fits. Your designer confirms every item before the order.
