29 bathroom vanity cabinets from our catalog, each with its custom size ranges, standard sizes and construction notes.
VB1834.5Code + width + height: a vanity base 18" wide and 34-1/2" high. Vanities come in 31-1/2" or 34-1/2" high.
BDAt the end of a code: butt doors (two doors that meet with no center stile).
CSAt the start of a code: the custom size version, built to the width, height and depth you need.
Category

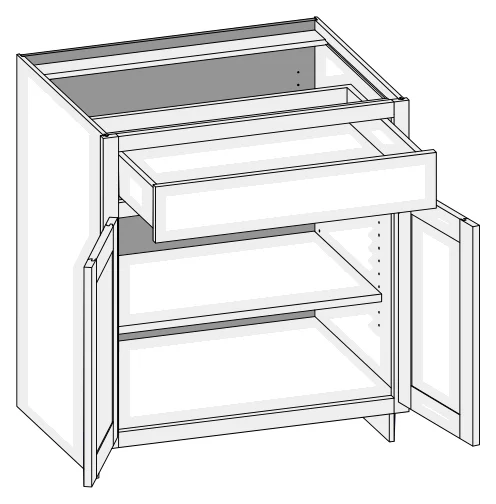

VB/CSB
Vanity Base
Custom size ranges
Width
12" – 36"
Height
31-1/2" – 42"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
21" Deep
VB1231.5
VB1234.5
VB1531.5
VB1534.5
VB1831.5
VB1834.5
VB2131.5
VB2134.5
Details & notes
When height changes, lower opening height changes. Upper opening height fixed at 5".
Specify single or butt doors on custom size cabinets 24" wide.

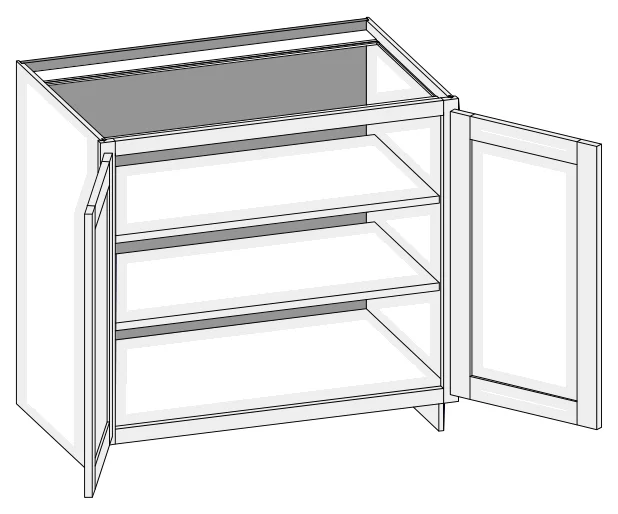

VBF/CSBFD
Vanity Base Full
Custom size ranges
Single Door Width
9" – 24"
Butt Door Width
24" – 36"
Height
10" – 48"
Depth
5-1/2" – 30"
Standard sizes
Single Door – 21" Deep
VBF1831.5
VBF1834.5
Butt Door Cabinets – 21" Deep
VBF2431.5BD
VBF2434.5BD
VBF2731.5BD
VBF2734.5BD
VBF3031.5BD
VBF3034.5BD
VBF3631.5BD
VBF3634.5BD
Details & notes
10" – 22" high has no shelves.
22-1/16" – 28" high has one shelf.
28-1/16" – 40" high has two shelves.
40-1/16" – 48" high has three shelves.
Specify single or butt doors on custom size cabinets 24" wide.

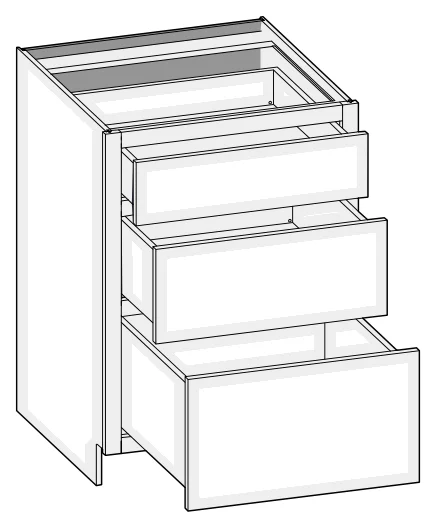

V3D/CSB3D
Vanity Three Drawer
Custom size ranges
Width
12" – 39"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
21" Deep
V3D1231.5
V3D1234.5
V3D1531.5
V3D1534.5
V3D1831.5
V3D1834.5
V3D2131.5
V3D2134.5
V3D2431.5
V3D2434.5
Details & notes
When height changes, lower opening height changes. Upper and middle opening heights fixed at 5" and 8".

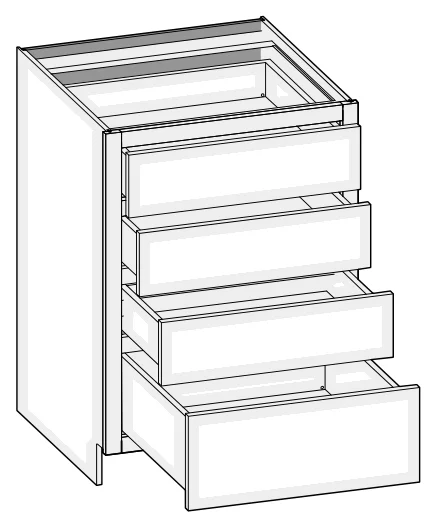

V4D/CSB4D
Vanity Four Drawer
Custom size ranges
Width
12" – 39"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
21" Deep
V4D1231.5
V4D1234.5
V4D1531.5
V4D1534.5
V4D1831.5
V4D1834.5
V4D2131.5
V4D2134.5
V4D2431.5
V4D2434.5
Details & notes
When height changes, lower opening height changes. Upper opening heights fixed at 5".

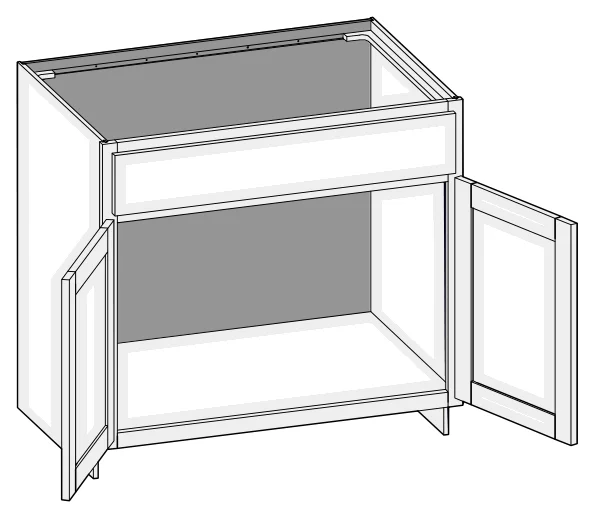

VS/CSBS
Vanity Sink w/Butt Doors
Custom size ranges
Width
24" – 36"
Height
31-1/2" – 42"
Depth
18" – 30"
Standard sizes
21" Deep
VS2431.5BD
VS2434.5BD
VS2731.5BD
VS2734.5BD
VS3031.5BD
VS3034.5BD
VS3331.5BD
VS3334.5BD
VS3631.5BD
VS3634.5BD
Details & notes
False drawer front.
No drawer box, shelf support holes or shelf with sink units.
When height changes, lower opening height changes. Upper opening height fixed at 5".
Specify single or butt doors on custom size cabinets 24" wide.

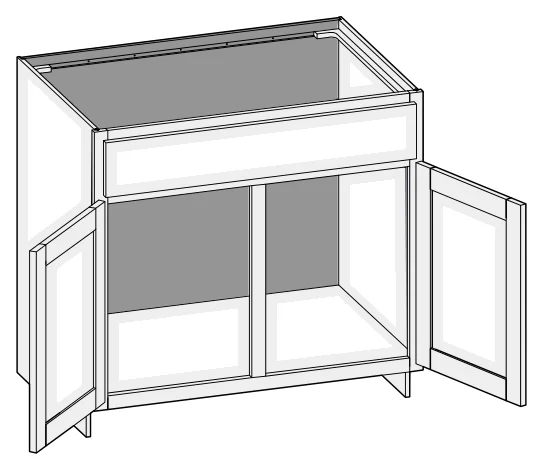

VS/CSBS2D1D
Vanity Sink Two Door One Drawer
Custom size ranges
Width
27" – 36"
Height
31-1/2" – 42"
Depth
18" – 30"
Standard sizes
21" Deep
VS3031.5
VS3034.5
VS3331.5
VS3334.5
VS3631.5
VS3634.5
Details & notes
False drawer front.
When height changes, lower opening height changes. Upper opening height fixed at 5".

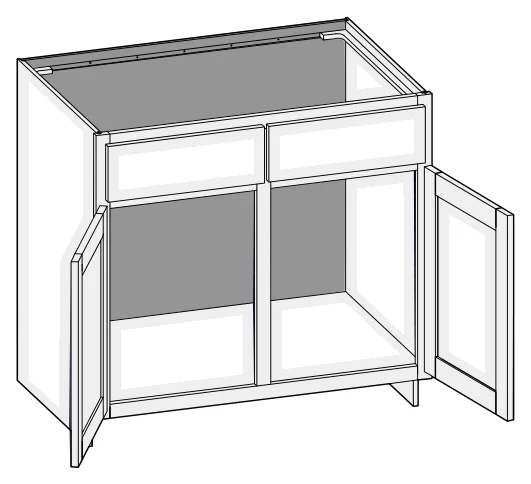

VSX/CSBS2D2D
Vanity Sink Two Door Two Drawer
Custom size ranges
Width
30" – 48"
Height
31-1/2" – 42"
Depth
18" – 30"
Standard sizes
21" Deep
VSX3031.5
VSX3034.5
VSX3631.5
VSX3634.5
Details & notes
False drawer fronts.
When height changes, lower opening height changes. Upper opening height fixed at 5".

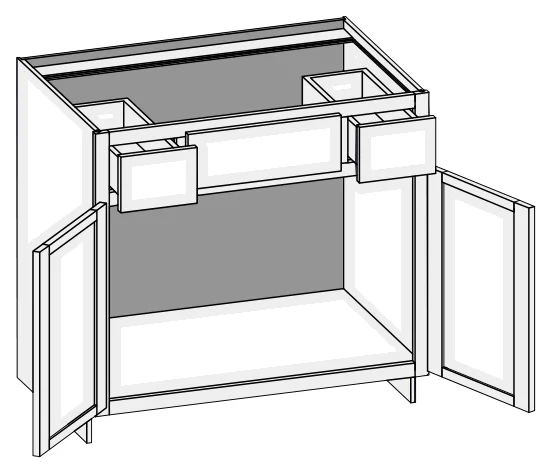

VBS/CSVBS
Vanity Base Sink w/Butt Doors
Custom size ranges
Width
36"
Height
31-1/2" – 42"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
21" Deep
VBS3631.5BD
VBS3634.5BD
Details & notes
False top middle drawer front.
When height changes, lower opening height changes. Upper opening height fixed at 5".

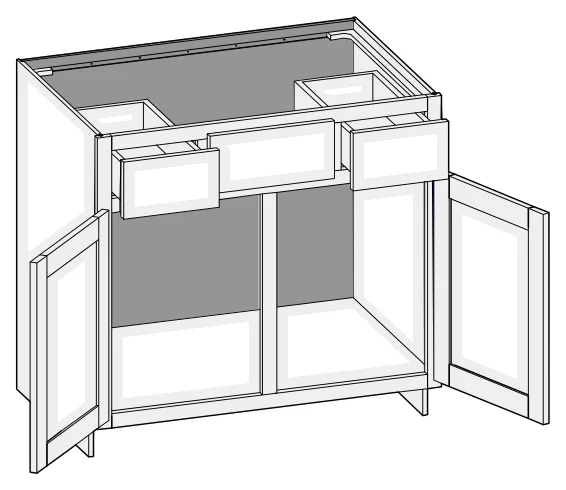

VBS/CSVBSCS
Vanity Base Sink w/Center Stile
Custom size ranges
Width
36" – 48"
Height
31-1/2" – 42"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
21" Deep
VBS4231.5
VBS4234.5
VBS4831.5
VBS4834.5
Details & notes
False top middle drawer front.
When height changes, lower opening height changes. Upper opening height fixed at 5".
When width changes, middle opening width changes. Left and right opening widths fixed at 9".

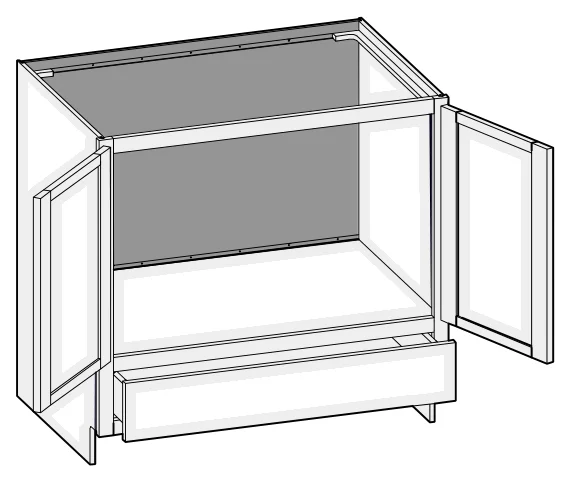

VSRV/CSVSRV
Vanity Sink Reverse w/Butt Doors
Custom size ranges
Width
24" – 36"
Height
31-1/2" – 42"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
21" Deep
VSRV2431.5BD
VSRV2434.5BD
VSRV3031.5BD
VSRV3034.5BD
VSRV3631.5BD
VSRV3634.5BD
Details & notes
When height changes, top opening height changes. Lower opening height fixed at 5".

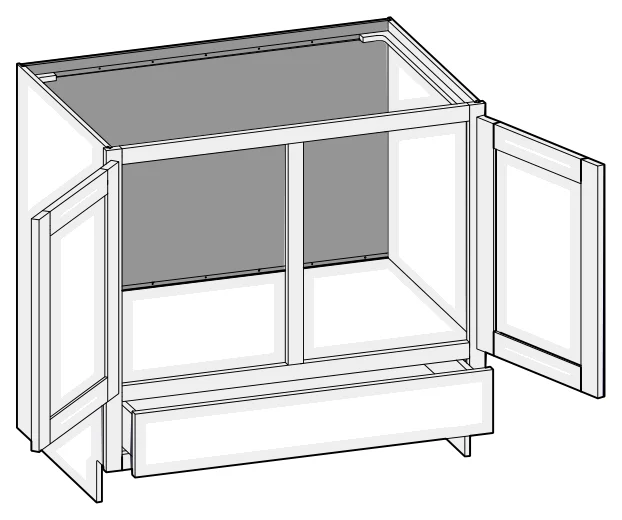

VSRV/CSVSRVCS
Vanity Sink Reverse w/Center Stile
Custom size ranges
Width
30" – 36"
Height
31-1/2" – 42"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
21" Deep
VSRV3031.5
VSRV3034.5
VSRV3631.5
VSRV3634.5
Details & notes
When height changes, top opening height changes. Lower opening height fixed at 5".

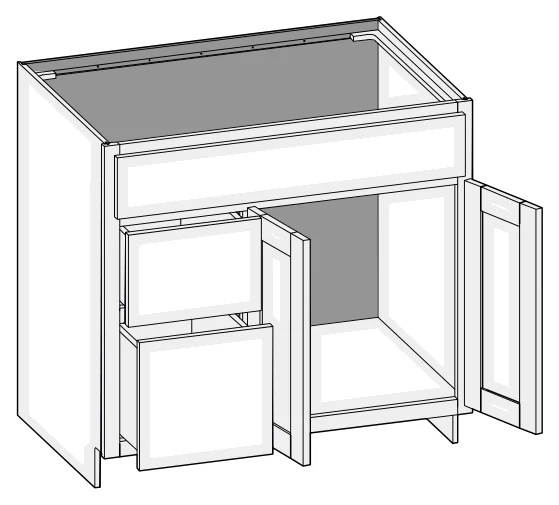

VCL/CSVCL
Vanity Combination Left
Custom size ranges
Single Door Width
24" – 36"
Butt Door Width
36" – 48"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
Single Door Cabinets – 21" Deep
VCL3031.5
VCL3034.5
VCL3331.5
VCL3334.5
VCL3631.5
VCL3634.5
Butt Door Cabinets – 21" Deep
VCL4231.5BD
VCL4234.5BD
VCL4831.5BD
VCL4834.5BD
Details & notes
False top drawer front.
When height changes, lower opening heights change. Upper and middle opening heights fixed at 5" and 8".
When width changes, door and false drawer openings change. Lower drawer openings fixed at 12".
Specify single or butt doors on custom size cabinets 36" wide.
Doors hinged on center stile require 1/2" overlay hinges for 1-1/4" or 1-3/8" overlays.

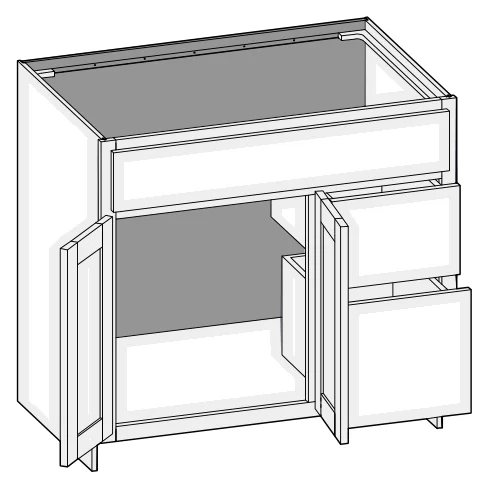

VCR/CSVCR
Vanity Combination Right
Custom size ranges
Single Door Width
24" – 36"
Butt Door Width
36" – 48"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
Single Door Cabinets – 21" Deep
VCR3031.5
VCR3034.5
VCR3331.5
VCR3334.5
VCR3631.5
VCR3634.5
Butt Door Cabinets – 21" Deep
VCR4231.5BD
VCR4234.5BD
VCR4831.5BD
VCR4834.5BD
Details & notes
False top drawer front.
When height changes, lower opening heights change. Upper and middle opening heights fixed at 5" and 8".
When width changes, door and false drawer openings change. Lower drawer openings fixed at 12".
Specify single or butt doors on custom size cabinets 36" wide.
Doors hinged on center stile require 1/2" overlay hinges for 1-1/4" or 1-3/8" overlays.

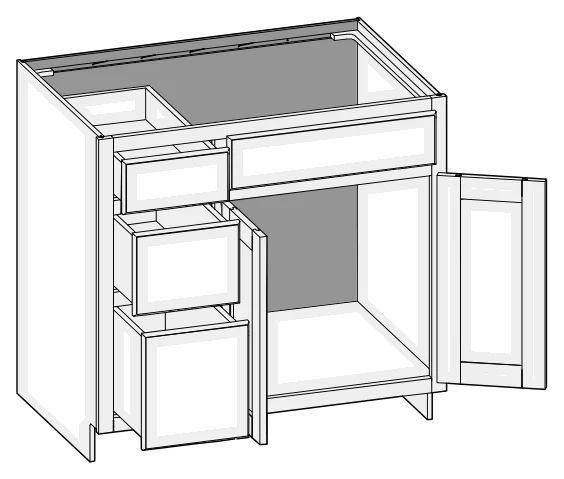

VC3DL/CSVC3DL
Vanity Combo Three Drawer Left
Custom size ranges
Single and Butt Door Width
36" – 48"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
Single Door Cabinets – 21" Deep
VC3DL3631.5
VC3DL3634.5
VC3DL3931.5
VC3DL3934.5
VC3DL4231.5
VC3DL4234.5
VC3DL4531.5
VC3DL4534.5
VC3DL4831.5
VC3DL4834.5
Butt Door Cabinets – 21" Deep
VC3DL3631.5BD
VC3DL3634.5BD
VC3DL3931.5BD
VC3DL3934.5BD
VC3DL4231.5BD
VC3DL4234.5BD
VC3DL4531.5BD
VC3DL4534.5BD
VC3DL4831.5BD
VC3DL4834.5BD
Details & notes
When width changes, door and false drawer openings remain fixed.
When height changes, lower opening heights change. Upper and middle opening heights fixed at 5" and 8".
Doors hinged on center stile require 1/2" overlay hinges for 1-1/4" or 1-3/8" overlays.
Specify single or butt doors on custom size cabinets.

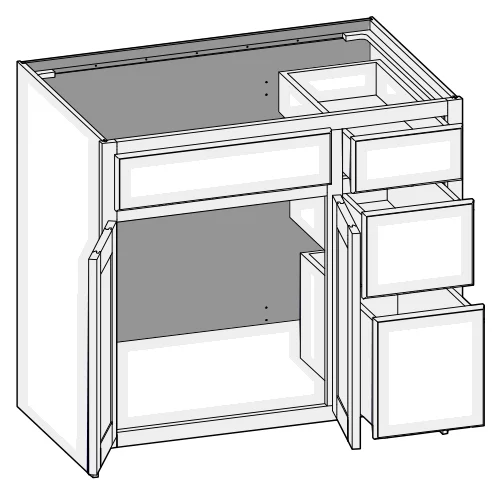

VC3DR/CSVC3DR
Vanity Combo Three Drawer Right
Custom size ranges
Single and Butt Door Width
36" – 48"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
Single Door Cabinets – 21" Deep
VC3DR3631.5
VC3DR3634.5
VC3DR3931.5
VC3DR3934.5
VC3DR4231.5
VC3DR4234.5
VC3DR4531.5
VC3DR4534.5
VC3DR4831.5
VC3DR4834.5
Butt Door Cabinets – 21" Deep
VC3DR3631.5BD
VC3DR3634.5BD
VC3DR3931.5BD
VC3DR3934.5BD
VC3DR4231.5BD
VC3DR4234.5BD
VC3DR4531.5BD
VC3DR4534.5BD
VC3DR4831.5BD
VC3DR4834.5BD
Details & notes
When width changes, door and false drawer openings remain fixed.
When height changes, lower opening heights change. Upper and middle opening heights fixed at 5" and 8".
Doors hinged on center stile require 1/2" overlay hinges for 1-1/4" or 1-3/8" overlays.
Specify single or butt doors on custom size cabinets.

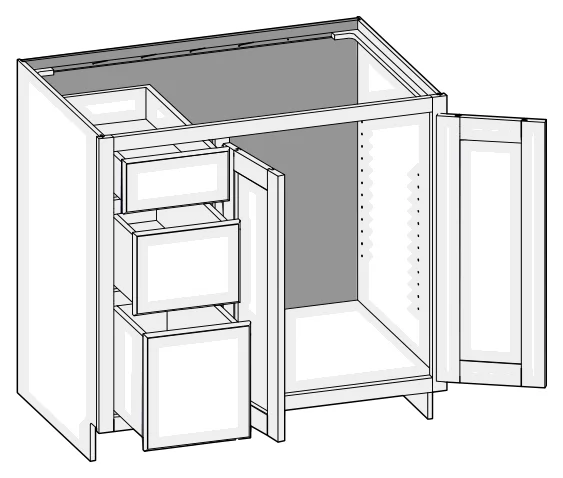

VCFD3DL/CSVCFD3DL
Vanity Combo Full Door Three Drawers Left
Custom size ranges
Single and Butt Door Width
36" – 48"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
Single Door Cabinets – 21" Deep
VCFD3DL3631.5
VCFD3DL3634.5
VCFD3DL3931.5
VCFD3DL3934.5
VCFD3DL4231.5
VCFD3DL4234.5
VCFD3DL4531.5
VCFD3DL4534.5
VCFD3DL4831.5
VCFD3DL4834.5
Butt Door Cabinets – 21" Deep
VCFD3DL3631.5BD
VCFD3DL3634.5BD
VCFD3DL3931.5BD
VCFD3DL3934.5BD
VCFD3DL4231.5BD
VCFD3DL4234.5BD
VCFD3DL4531.5BD
VCFD3DL4534.5BD
VCFD3DL4831.5BD
VCFD3DL4834.5BD
Details & notes
When width changes, door opening remains fixed.
When height changes, lower opening heights change. Upper and middle opening heights fixed at 5" and 8".
Doors hinged on center stile require 1/2" overlay hinges for 1-1/4" or 1-3/8" overlays.
Specify single or butt doors on custom size cabinets.

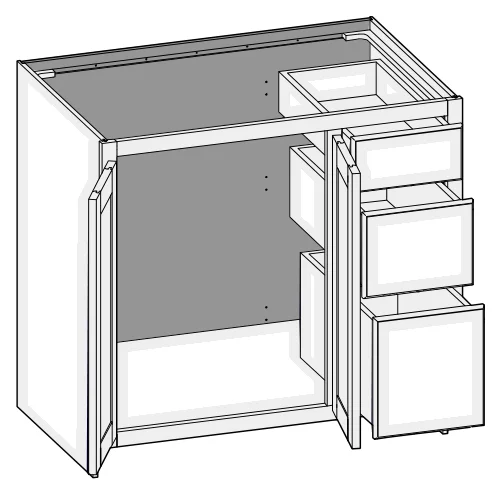

VCFD3DR/CSVCFD3DR
Vanity Combo Full Door Three Drawers Right
Custom size ranges
Single and Butt Door Width
36" – 48"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
Single Door Cabinets – 21" Deep
VCFD3DR3631.5
VCFD3DR3634.5
VCFD3DR3931.5
VCFD3DR3934.5
VCFD3DR4231.5
VCFD3DR4234.5
VCFD3DR4531.5
VCFD3DR4534.5
VCFD3DR4831.5
VCFD3DR4834.5
Butt Door Cabinets – 21" Deep
VCFD3DR3631.5BD
VCFD3DR3634.5BD
VCFD3DR3931.5BD
VCFD3DR3934.5BD
VCFD3DR4231.5BD
VCFD3DR4234.5BD
VCFD3DR4531.5BD
VCFD3DR4534.5BD
VCFD3DR4831.5BD
VCFD3DR4834.5BD
Details & notes
When width changes, door opening remains fixed.
When height changes, lower opening heights change. Upper and middle opening heights fixed at 5" and 8".
Doors hinged on center stile require 1/2" overlay hinges for 1-1/4" or 1-3/8" overlays.
Specify single or butt doors on custom size cabinets.

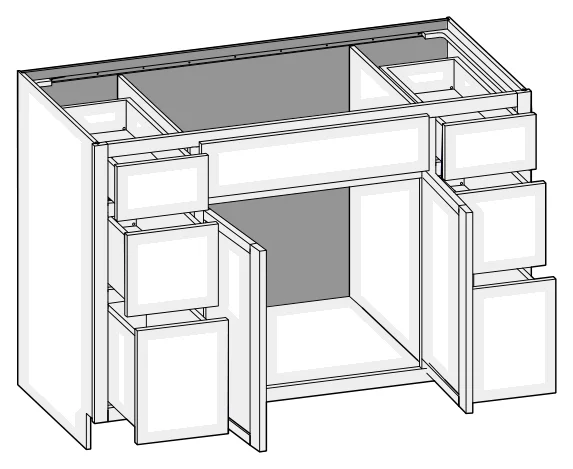

VC6D/CSVC6D
Vanity Combination Six Drawer w/Butt Doors
Custom size ranges
Width
48" – 72"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
21" Deep
VC6D4831.5BD
VC6D4834.5BD
VC6D6031.5BD
VC6D6034.5BD
Details & notes
One false top drawer front, two functional top drawers.
When height changes, lower opening heights change. Upper and middle opening heights fixed at 5" and 8".
When width changes, door and false drawer front openings change.
Doors hinged on center stile require 1/2" overlay hinges for 1-1/4" or 1-3/8" overlays.

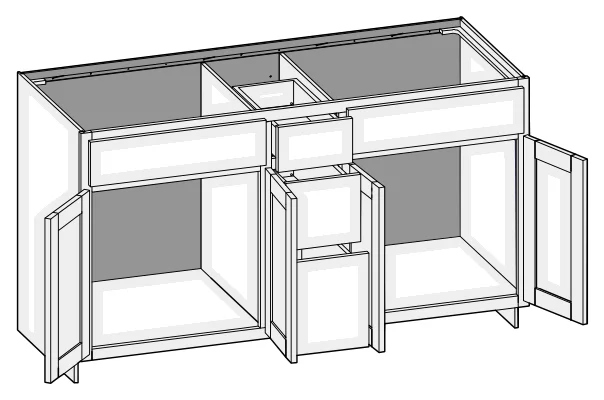

VC3D/CSVC3D
Vanity Combination Three Drawer w/Butt Doors
Custom size ranges
Width
48" – 72"
Height
31-1/2" – 34-1/2"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
21" Deep
VC3D6031.5BD
VC3D6034.5BD
Details & notes
Two false top drawer fronts, one functional top drawer.
When height changes, lower opening heights change. Upper and middle opening heights fixed at 5" and 8".
When width changes, door and false drawer front openings change.
Doors hinged on center stile require 1/2" overlay hinges for 1-1/4" or 1-3/8" overlays.

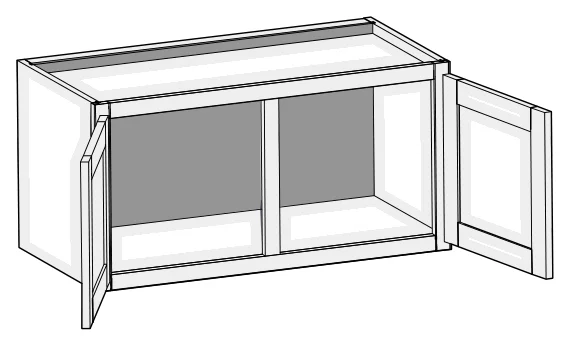

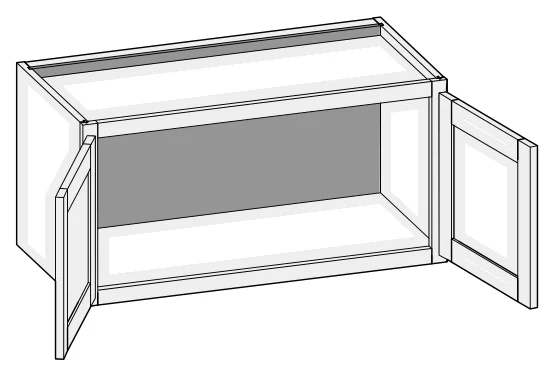

WHV/CSWHV
Wall Hung Vanity
Custom size ranges
Single Door Width
21" – 24"
Butt Door Width
24" – 36"
Height
18" – 24"
Depth
18" – 21"
Standard sizes
Single Door Cabinets – 24" High
WHV2124
WHV2424
Butt Door Cabinets – 24" High
WHV2424BD
WHV2724BD
WHV3024BD
WHV3324BD
WHV3624BD
Details & notes
Includes two precut 2 x 4 installation cleats.
The load capacity of these cabinets depends greatly on the quality of the installation screws and whether the cabinets are secured into the wall studs. If not secured into two or more studs with high quality installation screws, the cabinet may not support the desired weight.
Cabinet failure due to inadequate installation techniques or materials is not covered.
Specify single or butt doors on custom size cabinets 24" wide.
WHV/CSWHVCS
Wall Hung Vanity w/Center Stile
Custom size ranges
Width
27" – 48"
Height
18" – 24"
Depth
18" – 21"
Standard sizes
24" High
WHV2724
WHV3024
WHV3324
WHV3624
WHV3924
WHV4224
WHV4524
WHV4824
Details & notes
Includes two precut 2 x 4 installation cleats.
The load capacity of these cabinets depends greatly on the quality of the installation screws and whether the cabinets are secured into the wall studs. If not secured into two or more studs with high quality installation screws, the cabinet may not support the desired weight.
Cabinet failure due to inadequate installation techniques or materials is not covered.

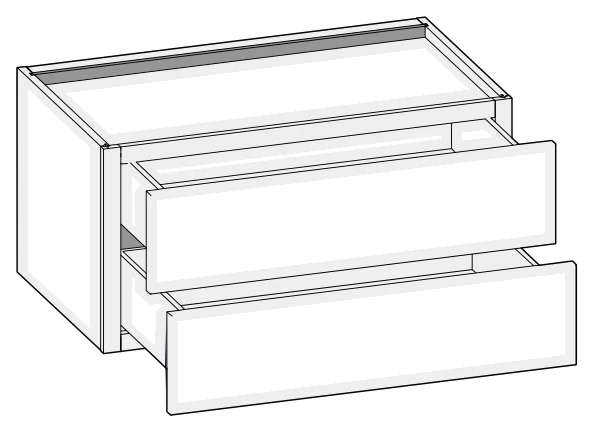

WHV2D/CSWHV2D
Wall Hung Vanity Two Drawers
Custom size ranges
Width
21" – 36"
Height
18" – 24"
Depth
18", 21"
Standard sizes
24" High
WHV2D2124
WHV2D2424
WHV2D2724
WHV2D3024
WHV2D3324
WHV2D3624
Details & notes
Drawer boxes are 6" less than the depth of the cabinet to accommodate inset drawers and hardware.
Includes two precut 2 x 4 installation cleats.
The load capacity of these cabinets depends greatly on the quality of the installation screws and whether the cabinets are secured into the wall studs. If not secured into two or more studs with high quality installation screws, the cabinet may not support the desired weight.
Cabinet failure due to inadequate installation techniques or materials is not covered.

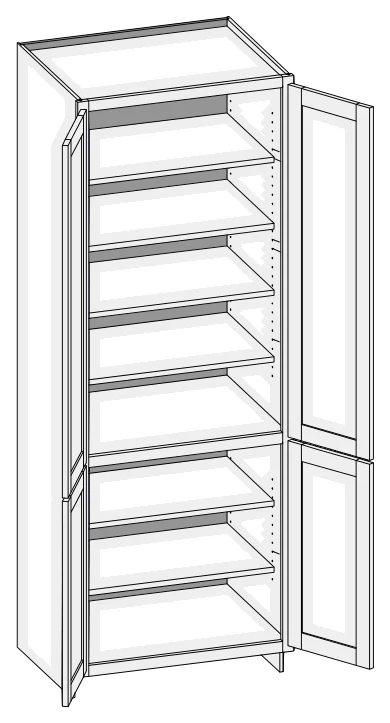

CSVLV
Vanity Linen Vanity Height
Custom size ranges
Single Door Width
12" – 24"
Butt Door Width
24" – 36"
Height
84" – 120"
Depth
5-1/2" – 30"
Standard sizes
Built to your size only (custom size cabinet).
Details & notes
Lower section aligns with 31-1/2" high vanity cabinets.
84" – 90" high has six shelves.
90-1/16" – 96" high has seven shelves.
96-1/16" – 108" high has eight shelves.
108-1/16" – 120" high has nine shelves.
Matching species interior is not available over 96" high. White Birch UV topcoated material will be used.
When height changes, upper opening height changes. Lower opening height fixed at 24-1/2".
Specify single or butt doors on custom size cabinets 24" wide.

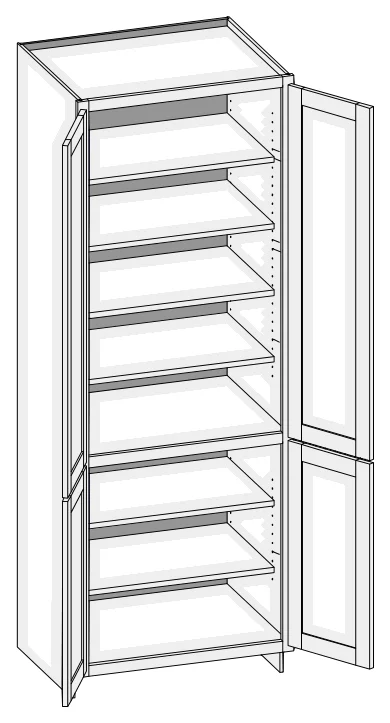

CSUCR
Vanity Linen Base Height
Custom size ranges
Single Door Width
12" – 24"
Butt Door Width
24" – 36"
Height
84" – 120"
Depth
5-1/2" – 30"
Standard sizes
Built to your size only (custom size cabinet).
Details & notes
Lower section aligns with 34-1/2" high vanity cabinets.
84" – 90" high has six shelves.
90-1/16" – 96" high has seven shelves.
96-1/16" – 108" high has eight shelves.
108-1/16" – 120" high has nine shelves.
Matching species interior is not available over 96" high. White Birch UV topcoated material will be used.
When height changes, upper opening height changes. Lower opening height fixed at 27-1/2".
Specify single or butt doors on custom size cabinets 24" wide.

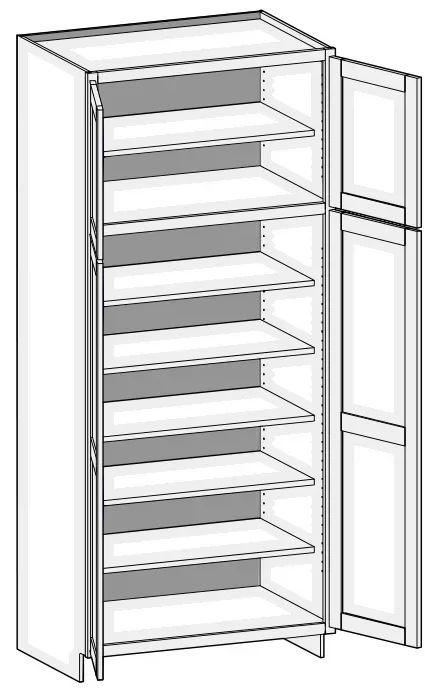

CSUC
Vanity Utility
Custom size ranges
Single Door Width
12" – 24"
Butt Door Width
24" – 36"
Height
84" – 120"
Depth
5-1/2" – 30"
Standard sizes
Built to your size only (custom size cabinet).
Details & notes
84" – 90" high has six shelves.
90-1/16" – 96" high has seven shelves.
96-1/16" – 108" high has eight shelves.
108-1/16" – 120" high has nine shelves.
Matching species interior is not available over 96" high. White Birch UV topcoated material will be used.
When height changes, upper opening height changes. Lower opening height fixed at 56".
Specify single or butt doors on custom size cabinets 24" wide.

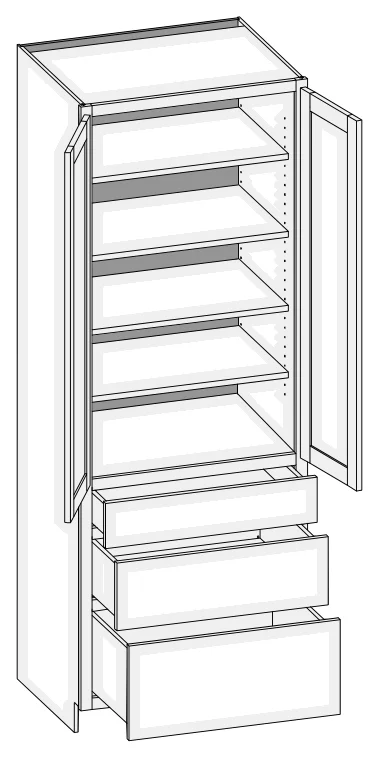

CSVL3V
Vanity Linen Three Drawer Vanity Height
Custom size ranges
Single Door Width
12" – 24"
Butt Door Width
24" – 36"
Height
84" – 120"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
Built to your size only (custom size cabinet).
Details & notes
Lower section aligns with 31-1/2" high vanity cabinets.
84" – 90" high has four shelves.
90-1/16" – 96" high has five shelves.
96-1/16" – 108" high has six shelves.
108-1/16" – 120" high has seven shelves.
Matching species interior is not available over 96" high. White Birch UV topcoated material will be used.
When height changes, upper opening height changes. Lower drawer opening heights fixed at 5", 8" and 8-1/2".
Specify single or butt doors on custom size cabinets 24" wide.
CSU3D
Vanity Linen Three Drawer Base Height
Custom size ranges
Single Door Width
12" – 24"
Butt Door Width
24" – 36"
Height
84" – 120"
Depth
12", 15", 18", 21", 24", 27", 30"
Standard sizes
Built to your size only (custom size cabinet).
Details & notes
Lower section aligns with 34-1/2" high vanity cabinets.
84" – 90" high has four shelves.
90-1/16" – 96" high has five shelves.
96-1/16" – 108" high has six shelves.
108-1/16" – 120" high has seven shelves.
Matching species interior is not available over 96" high. White Birch UV topcoated material will be used.
When height changes, upper opening height changes. Lower drawer opening heights fixed at 5", 8" and 11-1/2".
Specify single or butt doors on custom size cabinets 24" wide.

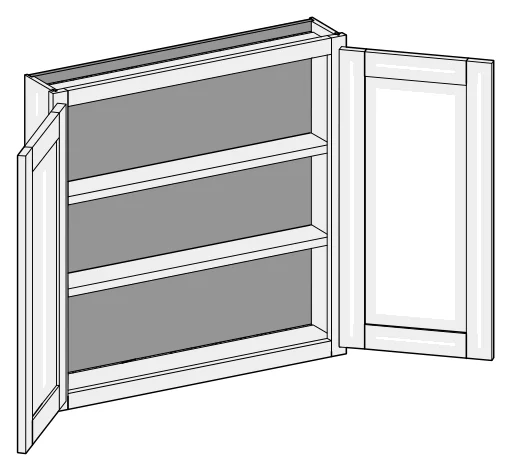

VW/CSW
Vanity Wall
Custom size ranges
Width
9" – 36"
Height
12" – 48"
Depth
5-1/2" – 30"
Standard sizes
30" High – 5-1/2" Deep
VW1230
VW1530
VW1830
VW2430
Details & notes
12" – 18" high has no shelves.
18-1/16" – 24" high has one shelf.
24-1/16" – 36" high has two shelves.
36-1/16" – 48" high has three shelves.
Specify single or butt doors on custom size cabinets 24" wide.

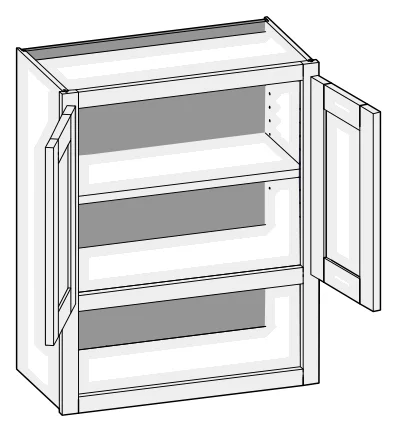

VWS/CSVWS
Vanity Wall Shelf w/Butt Doors
Custom size ranges
Width
24" – 36"
Height
24" – 48"
Depth
5-1/2" – 12-1/2"
Standard sizes
36" High – 8" Deep
VWS2436.5BD
Details & notes
8" high bottom opening, fixed.
Lower section does not match exterior species unless the Matching Interior option is ordered.
Specify single or butt doors on custom size cabinets 24" wide.
No cabinet matches your search. Ask a designer, we can build it to your size.
Vanity Options Key
The abbreviations used in the notes above, such as "Unavailable Option: PFD".
EXP
Exposed End(s)
FL
Flush End(s)
FUE
Flush Unexposed End(s)
SS
Shaped Side
PFD
Prep for False Door
EXT
Extended Stile(s)
FT
Flush Toe
LTP
Loose Toe Platform
SBR
Shaped Bottom Rail
LE
Leg Extension
TSS
Toe Space Side
OS
Omit Shelving
NSH
No Shelf Holes
WS
Solid Wood Shelves
MI
Matching Interior
DT
Dust Top
NB
Natural Finished Bottom
PTB
Plywood Toe Backer
Specifications follow the manufacturer's Framed catalog (Winter 2025) and may change without notice. Your designer confirms every size and option before the order.
